KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
KTS110 Temperature Sensor
Specifications
Brand Name :
KeramControls
Model Number :
KTS110
Certification :
CE
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T
Supply Ability :
2000pics/month
Delivery Time :
7days
Packaging Details :
Carton
Temperature Sensitive Element :
NTC 10k B3950
Response Time :
<1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline
Media :
Air or liquid
Description

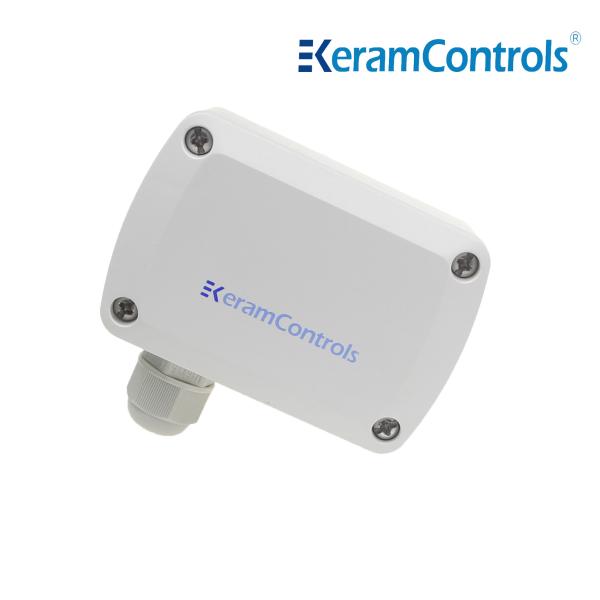

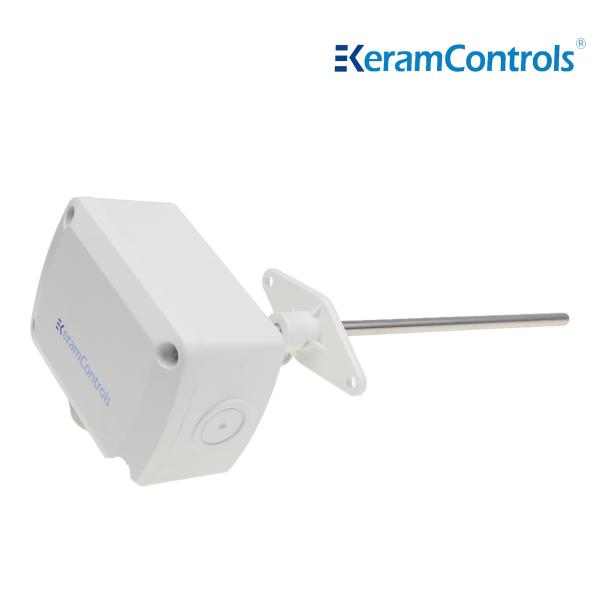

KTS110 Series Temperature Sensor
Factory Price Temperature Sensor for HVAC
The KTS110 duct temperature sensor is specifically designed for HVAC applications. It is ideal for building control systems, enabling precise temperature control with a measurement range of -40 to +200℃ for extensive application possibilities.
Key Features
  • Wide temperature range: -40 to +200°C
  • Resistance output
  • Standard accuracy (see technical data table)
  • High protection class: IP65 / NEMA 4
Applications
The KTS110 temperature transmitter is used for temperature measurement in heating, ventilation, and air conditioning systems, enabling weather-dependent temperature regulation.
Technical Specifications
Model KTS110
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min in 3m/s (590ft/min) air duct / <30s measuring liquid in pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Notes On Disposal
Product Certification
Dimensions (mm)
Ordering Guide
Model Element Probe Length
KTS110 PT100 Class A (1) 65mm (A)
PT1000 Class A (2) 120mm (B)
NTC 10k B395 (3) 150mm (C)
NTC 10k B3435 (4) 300mm (D)
NTC 1k (5)
NTC 2k (6)
Frequently Asked Questions
Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4 days for normal standard products within 10pcs.
Q: Are you manufacturer or trading company?
A: We are manufacturer with many years of experience. We have our own factory. Welcome to visit our factory.
Q: Can we use our logo on the products?
A: Yes. We can provide OEM service.
Q: Do you have products with ex-proof certificate?
A: Yes, we can offer intrinsic-safety and flame proof certificates.
Q: What is the warranty of your products?
A: Normal is 12 months.
Q: What's the means of transport?
A: Express such as TNT, Fedex, DHL, UPS, or logistics by indicator.
