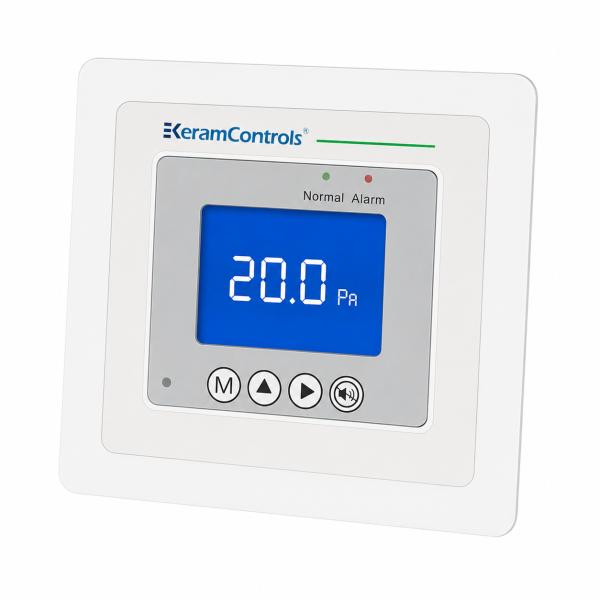

KDPM100 Differential Pressure Monitor with Backlight LCD Display and 4-20 mA or 0-10 V Output for HVAC Systems
KDPM100 Differential Pressure Monitor with Backlight LCD Display and 4-20 mA or 0-10 V Output for HVAC Systems
KDPM100 Differential Pressure Monitor with Backlight LCD Display and 4-20 mA or 0-10 V Output for HVAC Systems
KDPM100 Differential Pressure Monitor with Backlight LCD Display and 4-20 mA or 0-10 V Output for HVAC Systems
Specifications
Description
KDPM100 Differential Pressure Monitor

Professional differential pressure monitoring solution for industrial and environmental applications.

Product Overview
Measurement Media Air, neutral gases, dry gases, and other gases
Range Minimum ±25 Pa / 0-25 Pa
Maximum ±100 Pa
Output Signal 4-20mA (2/3-wire), 0-10V (3-wire), RS485 (Modbus RTU)
Power Supply 16-30VAC/DC (3-wire); 18-30VDC (2-wire)
Accuracy ±1% F.S
Protection Rating IP30
Alarm Function Optional buzzer alarm function
Display Backlight LCD display
Applications
  • HVAC and Energy Management Systems
  • Cleanroom and Environmental Control (Pharmaceutical, Electronic, Medical)
  • Industrial Process and Combustion Control
  • Safety protection and leak detection
  • Environmental Pollution Control
  • VAV variable air volume box
  • Fire and smoke prevention valve
  • Boiler furnace negative pressure monitoring
