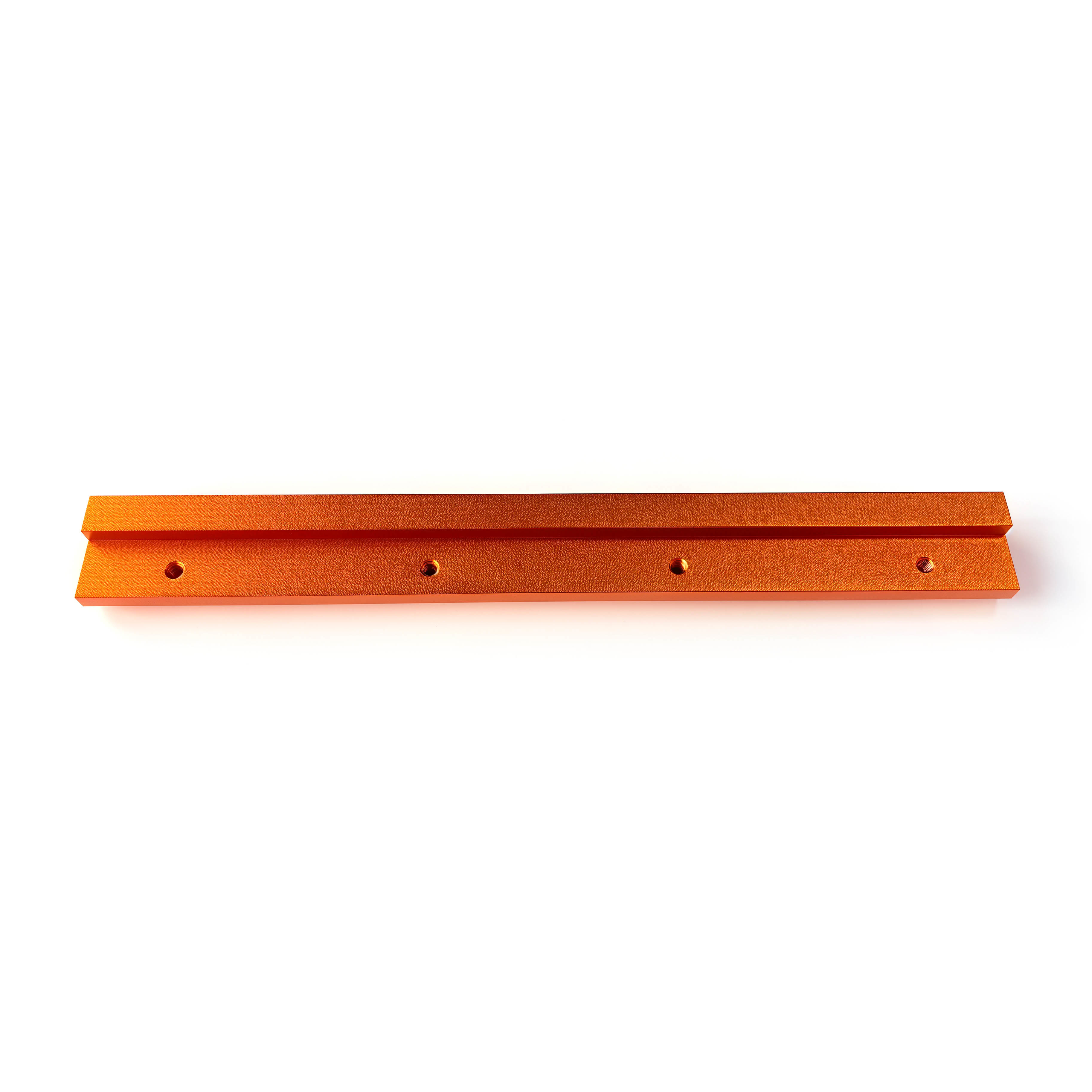

This industrial single c-groove aluminum profile is integrally extruded from 6063-T5 aluminum billet, forming a long continuous extrusion with one-side V-shaped C groove for sliding installation and assembly.

Our full in-house manufacturing workflow covers high-temperature extrusion forming, precision CNC saw cutting to any custom length, CNC secondary machining including backside drilling & thread tapping, edge chamfering and full deburring. After ultrasonic degreasing cleaning to eliminate cutting oil and metal debris, we apply fine matte sandblasting then orange hard anodizing with sealing treatment for corrosion resistance.

All CNC machined tapping holes and dimensional features maintain tight ±0.05mm tolerance. As a reliable custom aluminum extrusion manufacturer, we provide complete OEM custom service to adjust length, hole spacing, thread specifications and surface finish per customer drawings or samples, supplying standardized orange anodized 6063 c channel bar and cnc machined aluminum mounting strip for automation equipment, cabinet decoration and electronic assembly projects worldwide.

Product Name:

Single C Groove Aluminum Extrusion Rail

Raw Material:

6063-T5 Aluminum Alloy

Fixed Cross Section:

Width 25mm × Height 15mm

Length:

Fully customizable per customer’s drawing or demand

Forming Technology:

High-temperature aluminum extrusion, integrated single C-groove long profile

Secondary Machining:

CNC fixed-length saw cutting, drilling, thread tapping, end chamfering, full deburring

Machining Tolerance:

±0.05mm for all CNC drilled holes, tapped threads and chamfer dimensions

Surface Treatment:

Fine Matte Sandblasting + Orange Hard Anodization with Sealing

Structural Feature:

Integrated single-side V-type C sliding groove for fast component mounting

Customization Support:

Adjustable overall length, hole pitch, thread size, anodize color via OEM custom service

• Automation equipment frame mounting guide rail
• Electronic control cabinet decorative trim strip
• Test bench fixture sliding mounting bar
• Medical device assembly aluminum track
• Smart home equipment decorative edge rail
• Instrument panel installation positioning strip
• Small assembly workstation C-groove aluminum profile

• OEM & ODM Customization: Accept customer technical drawings and physical samples for one-stop custom single c groove aluminum extrusion rail production.
• Length Customization: Cut industrial single c-groove aluminum profile to any specified length freely.
• CNC Machining Custom: Custom drill holes, tapping threads, adjust hole spacing and chamfer sizes based on assembly demands.
• Surface Finish Custom: Modify sandblast fineness, customize anodize color including orange, silver, black and other tones.
• Marking Custom: Laser engrave brand logos, model numbers and part codes on aluminum mounting strip.
• Packaging Custom: Custom anti-scratch protective film, foam lining and neutral export cartons for bulk shipment.

• Integrated single C-groove extrusion eliminates extra groove machining, cutting secondary processing cost and lead time.
• ±0.05mm precision CNC tapping ensures matched screw fit, solving loose assembly from misaligned thread holes.
• Orange hard anodized sealed coating resists oxidation, abrasion and fingerprint marks for long-term decorative and industrial use.
• One-piece continuous extrusion avoids assembly gaps found in spliced aluminum mounting strips.
• Complete in-house one-stop production unifies extrusion, CNC machining and finishing, avoiding inconsistent quality from multiple outsourced suppliers.
• Flexible small-batch prototype custom service removes high minimum order quantity barriers for new equipment development.

• Raw Material Inspection: Tensile strength and alloy composition testing for 6063-T5 aluminum billets before extrusion.
• Mid-process Dimensional Check: Digital caliper & micrometer measurement after saw cutting and CNC tapping to lock ±0.05mm tolerance.
• Extrusion Profile QC: Inspect C-groove flatness, no deformation or uneven extrusion texture.
• Surface Pre-treatment QC: Ultrasonic cleaning validation to guarantee zero residual oil, metal chips and burrs.
• Finished Surface Inspection: Visual check for uniform fine sandblast texture, consistent orange anodize coating thickness and scratch-free surface.
• Final Thread Fit Test: Verify screw matching of all tapped holes before packaging, provide batch inspection reports for clients.

Can you customize length and hole layout of single c groove aluminum extrusion rail per my drawings?

Yes, our OEM custom service fully adjusts length, hole pitch and thread size following your technical drawings or samples.

What is the minimum order quantity for custom cnc machined aluminum mounting strip prototypes?

We support low-volume trial orders for prototype testing with flexible MOQ for new equipment development.

Can I select other anodize colors besides orange for c channel bar?

We offer silver, black and other custom colored hard anodization for industrial aluminum profiles.

What dimensional tolerance can your CNC machining achieve for tapped holes?

All drilled and tapped features are controlled within strict ±0.05mm tolerance.

How long is production lead time for bulk decorative extruded aluminum equipment rail orders?

Sample lead time is 3–7 working days; mass production lead time ranges 10–18 working days based on order quantity.
