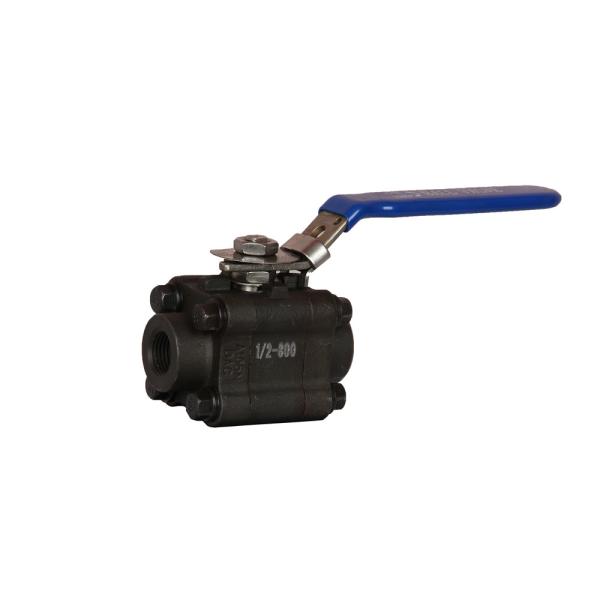

Small Size 3 Piece Floating Type Ball Valve NPT Forged Steel Ball Valve
Small Size 3 Piece Floating Type Ball Valve NPT Forged Steel Ball Valve
Specifications
Brand Name :
Kelite Valve
Model Number :
1/2"~2",CL150~2500
Certification :
API, ISO, CE
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
NPS 1/2"~2"
Pressure :
CL150~2500
Material :
A105,LF2,F304 (L) etc
D & M Standard :
API6D, ASME B16.34
Face to Face :
ASME B16.10, API 6D
End Connection :
ASME B16.5
T& I :
API 6D, API 598
Operation :
Lever
Description

Full Bore Forged Steel Ball Valve CL150 Pressure

Description:

Three piece structure ball valves with different materials for seats ,gaskets and packing ,suitable for use on different working condition..

  • Forged stell ball valve conform to API598/API6D.
  • Mark Comform to MSS-SP-25

Standard:

  1. Design and manufacture conform to :BS5351
  2. Connection ends to :ANSI B16.11;JB/T1751& ANSI B1.20.1:JB/T7306 &ANSI16.25;JB/T12224 &ANSI B16.5;JB79
  3. Features: Bolted Bonnet
  4. Material according to ANSI/ASTM.
  5. Main materials: A105;LF2;F5;F11;F22;304(L);316(L);F347:F321:F51；Monel;Alloy etc
No. Part Name Material
1 Seat RPTFE & Peek
2 Gasket PTFE
3 Pin 25/304
4 Gland 410/304(L)/316(L) /F51 etc
5 Flat Nut 8/8M
6 Packing PTFE
7 Bolt B7/B8/B8M
8 Nut 2H/8/8M
9 O-ring Vition
10 Back seat gasket RPTFE &PEEK
11 Wrench ANSI 1025
12 Spring 65Mn/304
13 Washer 65Mn/304
14 Anti-static spring 304/316L


Advantage:


1, We offer the custom made valves, as per customer requirements
2, OEM with your own logo and brand
3, Exported to all over of the world
4, Quality Guarantee, available with API,CE,SGS and ISO certifications


Select us :

  • Design team: With professional design staff, Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
