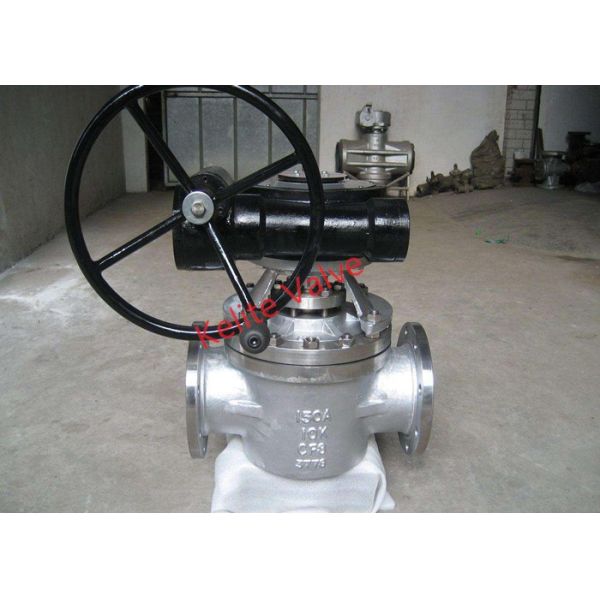

Positive Steel Plug Valve Fast Angular Travel Operation Reliable Sealing
Positive Steel Plug Valve Fast Angular Travel Operation Reliable Sealing
Positive Steel Plug Valve Fast Angular Travel Operation Reliable Sealing
Positive Steel Plug Valve Fast Angular Travel Operation Reliable Sealing
Specifications
Brand Name :
Kelite Valve
Model Number :
1/2"-4"
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
40-80days
Packaging Details :
Plywood packing or fumigation packing
Size： :
1/2"-6"
Pressure Rating： :
CL150-CL300
Material： :
WCB, LCB,CF8, CF8M, CF3, CF3M,A105,LF2
Design & Manufacturing Standard： :
API 6D、API 599、ASME B16.34
Face to Face： :
ASME B16.10, API 6D,API 599
End connection： :
ASME B16.5 ,ASME B16.25
Test and Inspection： :
API 598、ISO 5208、GB/T 26480、GB/T 13927
Operation method: :
Hand wheel, pneumatic drive unit
Description

Positive steel plug valve 1/2"-6" fast angular travel operation

Design characteristics :

  1. The sealing faces of valve seat and valve clack are build-up welded with hard alloy to improve the erosion resistance and extend the service life of valve.
  2. The important feature of plug valve is that it is adaptive to multi-passage structure, so one valve can have two, three or even four flow passes.
  3. Quick opening and closing, small flow resistance, and fast angular travel operation
  4. The medium can flow in two directions, facilitating unlimited mounting direction and online repair.
  5. Small switching moment, reliable sealing

Technical parameters:

Product description Positive plug valve small size 1/2"-4" quick opening and closing
Model Plug valve
Nominal diameter NPS 1/2”～6”
Operating temperature -46℃～120℃
Nominal pressure CLASS 150～300
Material Main material: A216 WCB,WCC; A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC; A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN),A105,A350 LF2,A182 F316, etc.
Design standard API 6D,API 599,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.25,ASME B16.11,GB/T 9113,GB/T 12224
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method Hand wheel, pneumatic drive unit
Application fields For systems of petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical industries.
Painting

Kelite standard
