10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-104P-002
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton box
Display Type :
4:3Ratio 10.4＂Active matrix TFT-LCD
Brightness (Typ.) :
Pure LCD Panel：300cd/m2
Support Colors :
16.2M
Viewing Angle :
Horizontal(left/right)：75°/75°
Contrast Ratio :
500:1
Frequency (H/V) :
37.9～46.9KHz / 60～75Hz
Regular Warranty :
1 year
Mount Interface :
VESA 75mm
Description

10.4 Inch SAW Touch Monitor 4:3 Ratio For Smart Lockers

Description of SAW Touch Monitor

This industrial touch monitor has main features as below: 4:3 display type, 800*600 resolution, 500:1 contrast. Moreover, with our professional R&D team, customized services can be offered per customer’s individual requirements.

SAW Touch Monitor Specifications

Complete Machine
Model No. KOT-0104U-SA4BP (P/N:KOT-104P-002)
Series OT
Display Type 4:3 Ratio 10.4" TFT-LCD
Active Area 211.2*158.4(mm)
Monitor Dimensions (W*H*D) 257*199*45.5(mm)
Suggested Resolution 800*600 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 300cd/m2
With Touch Monitor 270cd/m2
Response Time (Typ.) 20ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 75°/75°
Vertical(up/down) 50°/60°
Contrast Ratio (Typ.) 500:1

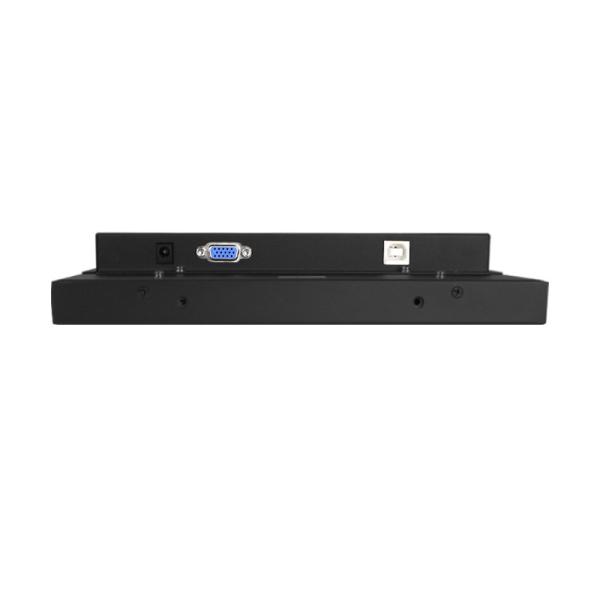

Video Input VGA
Frequency (H/V) 37.9～46.9KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
Power Consumption Standby Power: ≤1W / Operating Power: ≤8W
Mount Interface

1.VESA 75mm

2.Mount bracket, horizontal or vertical mount

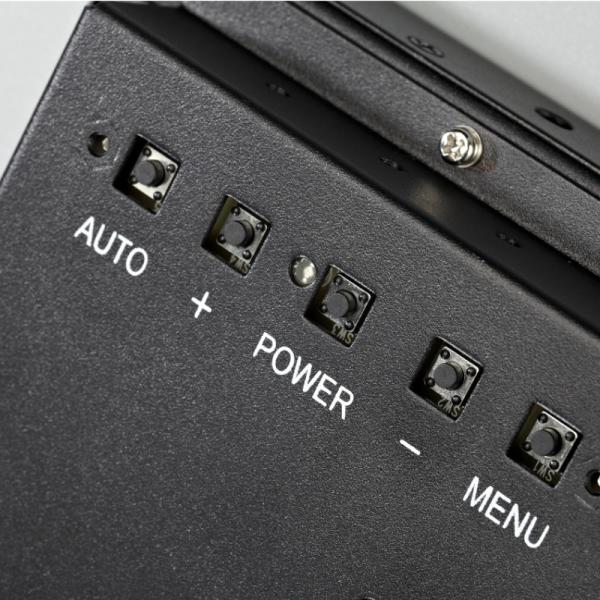

OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Regular Warranty 1 year
Touch Screen
Touch Type 10.4" Surface acoustic wave touch screen
Touch input USB
Response Time ≤8ms
Hardness 7H
Light Transmittance ≥90%
Support System XP,WIN7,WIN8,WIN10
Active Area 212*159(mm)
Thickness 4.0±0.1(mm)
Touch Test 50,000,000 times

SAW Touch Monitor Mechanical Dimensions

10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers

open frame lcd monitor Applications

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels
  • restaurants

10.4 Inch SAW TFT LCD Touch Monitor 4:3 Ratio For Smart Lockers

Why choose us?

  • High-tech and innovative enterprise
  • More than 175+ design patents
  • Completely and strictly quality control system
  • 30,000+ manufacturing capacity per year
  • Efficient Warehousing and Logistics

Advantages of SAW Touch Monitor

1. High Clarity: large touch screen monitor maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.

2. High Sensitivity: touch screen lcd monitor are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.

3. Durability: touch screen display are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.

FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch screen monitor manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the SAW Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the SAW Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
