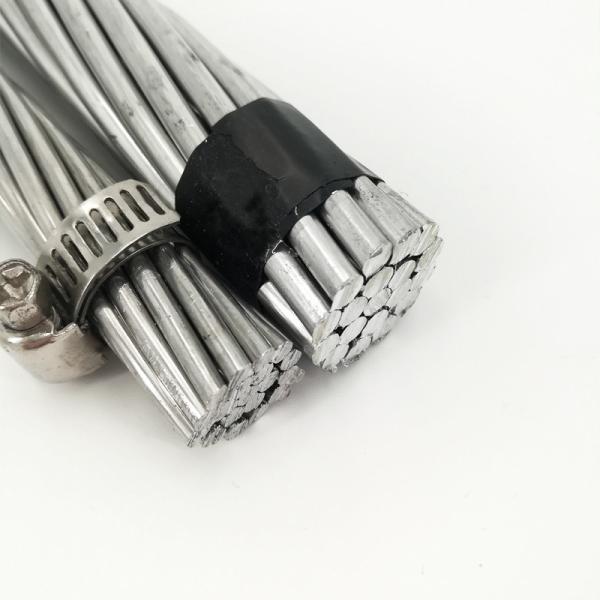

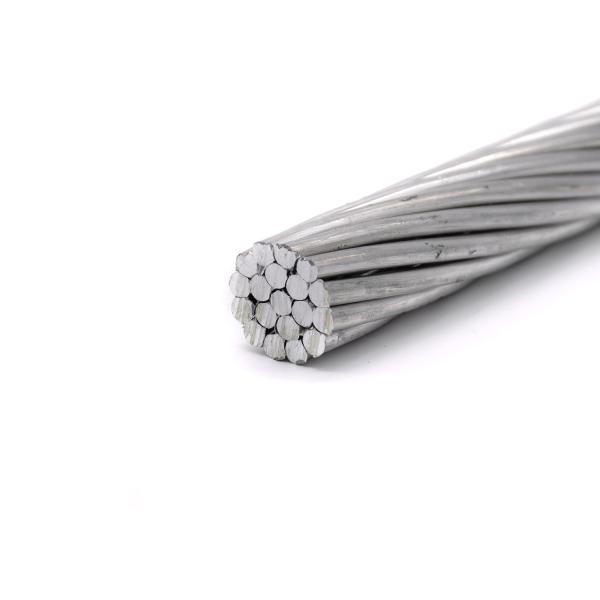

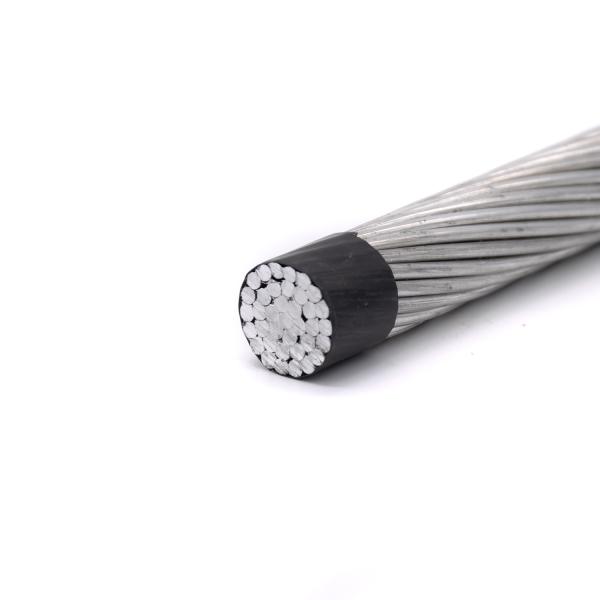

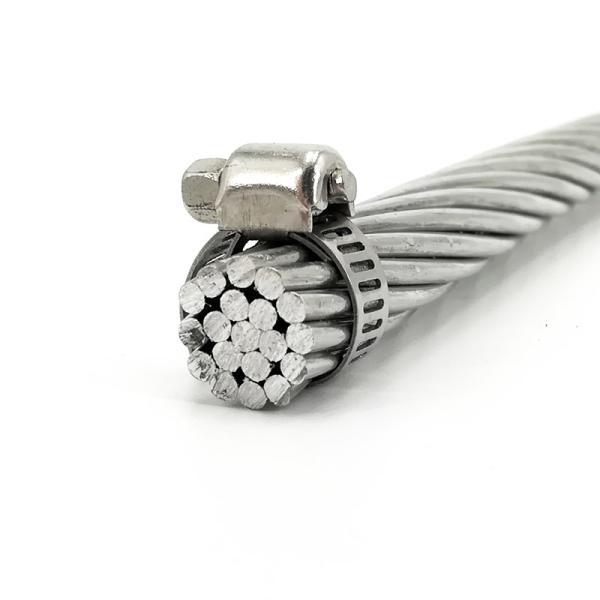

Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Overhead 1000m Aluminium Overhead Cables 25kv AAAC Conductor
Specifications
Brand Name :
OEM
Certification :
ISO9001/IEC
Place of Origin :
China
name :
bare conductor AAAC conductor
Material: :
aluminum
Voltage rate: :
High Voltage
Standard: :
BS DIN IEC GB ASTM
Application :
overhead line
Certification: :
ISO9001/IEC
Price :
Negotiation
Packaging Details :
Standard export package
Delivery Time :
15-20 working days or Negotiation
Payment Terms :
T/T, L/C, D/P, West Union, Paypal, Secure Payments
Description

Overhead Line AAAC All Aluminium Alloy Conductor

Overhead Line Standard bare conductor AAAC conductor

Description:

Compared with traditional steel core aluminum stranded wire, high-strength aluminum alloy wire and heat-resistant low-resistance aluminum alloy wire have the following advantages: (1) Under the same unit weight, the DC resistance of the aluminum alloy conductor is small, the current carrying capacity is large, and the tensile force It has the advantages of large tensile strength and large weight-to-weight ratio; (2) Compared with the same current-carrying capacity, aluminum alloy wires are important in light weight, large tensile strength, and large tensile weight-to-weight ratio. Aluminum alloy wire is a single material wire, easy to install and construct; (3) Aluminum alloy wire has low load-bearing risk resistance level; (4) The service life of ordinary steel core aluminum strands is about 50 years, and the service life of aluminum alloy wires is 100~120 More than years.

Specification Technical parameter of BS 215 part-2 bare ACSR conductor

Code Number Calc. Area No.of Wires Dia.of Wire Dia.of Cond. Linear Mass Rated Strength Max.D.C. Resistance at 20°C
mm2 mm2 　 mm mm kg/km kN Q/km
16 18.4 7 1.83 5.49 50.4 5.43 1.7896
25 28.8 7 2.29 6.87 78.7 8.49 1.1453
40 46 7 2.89 8.67 125.9 13.58 0.7158
63 72.5 7 3.63 10.8 198.3 21.39 0.4545
100 115 19 2.78 13.9 316.3 33.95 0.2877
125 144 19 3.1 15.5 395.4 42.44 0.2302
160 184 19 3.51 17.55 506.1 54.32 0.1798
200 230 19 3.93 19.65 632.7 67.91 0.1439

Packing:

Material:
Steel wooden drum
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
