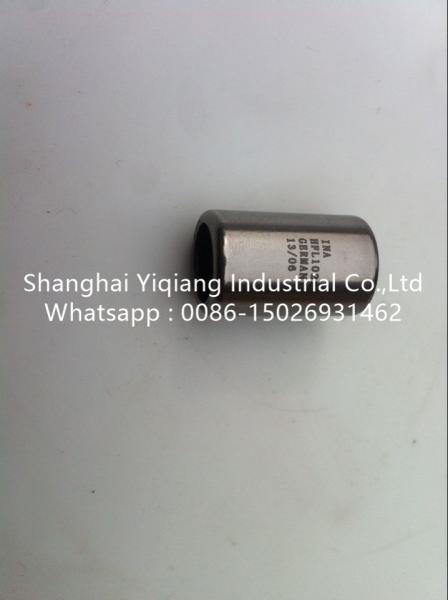

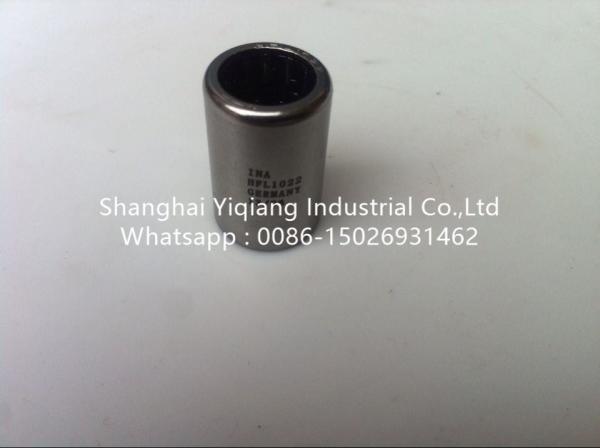

Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Drawn Cup needle clutch bearing HFL1226
Specifications
Model Number :
HFL1226
MOQ :
1PCS
Price :
FOB
Packaging Details :
Carton Box
Delivery Time :
within one day
Payment Terms :
T/T In advance
Supply Ability :
5000PCS
Brand Name :
INA
Place of Origin :
Germany
Description

m) Type (g)
Mass		 (mm)
Dimensions
(Nm)
Limiting Speed
Fw D C N NA
INA NSK (rpm)
HF
6 HF0612 HF0612 FCS-6 3 6 10 12 1.76 23000 13000
8 HF0812 HF0812 --- 3.5 8 12 12 3.15 17000 12000
10 HF1016 HF1016 FCL-10k 4 10 14 12 5.3 14000 11000
12 HF1216 HF1216 FC-12 11.6 12 18 16 12.2 11000 8000
14 HF1416 HF1416 --- 13 14 20 16 17.3 9500 8000
16 HF1616 HF1616 FC-6 14 16 22 16 20.5 8500 7500
18 HF1816 HF1816 --- 15.5 18 24 16 24.1 7500 7500
20 HF2016 HF2016 FC-20 17 20 26 16 28.5 7000 6500
25 HF2520 HF2520 FC-25 30.9 25 32 20 66 5500 5500
30 HF3020 HF3020 FC-30 36 30 37 20 90 4500 4500
35 HF3520 HF3520 FCS-35 40 35 40 20 121 3900 3900
HFLSERIES
HFL0822 HFL0822 FCBL-8k 6.3 8 12 22 3.15 17000 12000
HFL1022 HFL1022 --- 7.4 10 14 22 5.3 14000 11000
HFL1226 HFL1226 FCB-12 18 12 18 26 12.2 11000 8000
HFL1426 HFL1426 --- 20.3 14 20 26 17.3 9500 8000
HFL1626 HFL1626 FCB-16 22 16 22 26 20.5 8500 7500
HFL1826 HFL1826 --- 24.4 18 24 26 24.1 7500 7500
HFL2026 HFL2026 FCB-20 27 20 26 26 28.5 7000 6500
HFL2530 HFL2530 FCB-25 44 25 32 30 66 5500 5500
HFL3030 HFL3030 FCB-30 51 30 37 30 90 4500 4500
HFL3530 HFL3530 --- 58 35 42 30 121 3900 3900

2.

Application

Widely used in printing machinery and packaging machinery, food machinery, electric drum, small-engine cars, electric motorbike, fitness equipment, reducer and test equipment, belt conveyer equipment, lifting crane, packaging machinery, textile machinery transmission equipment, which has greatly enhanced the machine equipment operation safety and reliability

Package

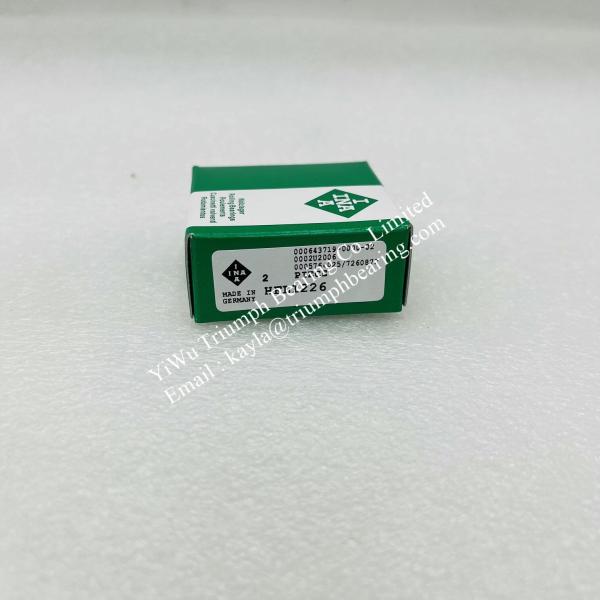

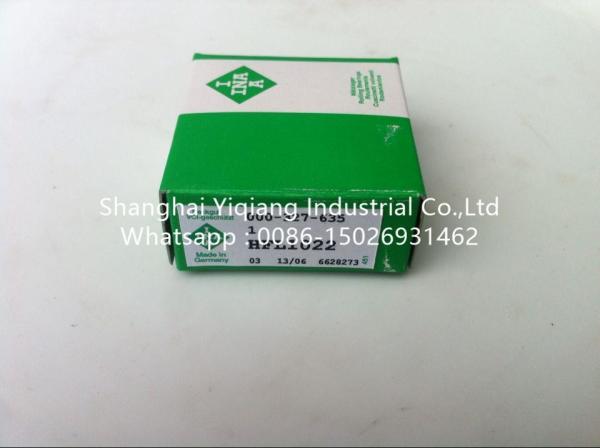

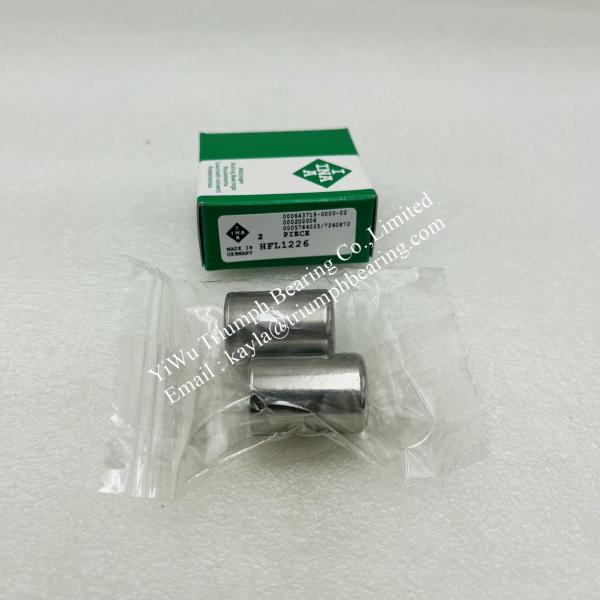

INA Packages

Description

Needle Roller Bearings (needle bearing) is a roller with a cylindrical roller bearings, relative to its diameter, both the thin and long rollers. This is called needle roller. Despite its smaller cross-section, still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained occasions.
