10MP USB Digital Microscope Camera, Electronic Eyepiece
10MP USB Digital Microscope Camera, Electronic Eyepiece
10MP USB Digital Microscope Camera, Electronic Eyepiece
10MP USB Digital Microscope Camera, Electronic Eyepiece
10MP USB Digital Microscope Camera, Electronic Eyepiece
10MP USB Digital Microscope Camera, Electronic Eyepiece
Specifications
Place of Origin :
China
Brand Name :
Kalinu or OEM
Model Number :
CBY1000-H
MOQ :
1pcs
Packaging Details :
Carton
Delivery Time :
3DAYS
Payment Terms :
TT or Paypal
Supply Ability :
20000pcs
Description

10MP USB Digital Microscope Camera,Electronic Eyepiece

Model Number: CBY1000-H

10MP USB Digital Microscope Camera, Electronic Eyepiece

Description:

Our cameras are with C mount or CS mount. They can be used in mainly two fields, industrial machine vision image and microscope image. For industrial machine vision, it is always mount a CS lens with the camera. And for microscope image, it can be mounted in C mount of microscope or be mounted a adapter lens to put into the tube of eyepiece or trinocular. We also have a digital camera for telescope, slit lamp, hardness tester etc.

Camera Specification:

Model No

CBY1000-H

SENSOR

MT9J003

SENSOR Size

1/2.3inch CMOS Color

Resolution

3664*2748(10M)

Frame Rates

3664*2748: 3FPS

2592*1944(ROI): 5FPS

1600*1200(BIN):16FPS

1920*1080(BIN): 16FPS

1280*720(BIN): 28FPS

1024*768(BIN): 30FPS

800*600(BIN): 36FPS

Any Size ROI

Pixel Size

1.67um*1.67um

Scanning

Line Scanning

Shutter

ROLLING SHUTTER

Exposure Time

0.172-3000ms

Bits

Raw8/Raw10/Raw12(optional)

Sensitivity

0.31V/Lux-sec(550nm)

Spectral Response

380nm-650nm(with IR-filter)

S/N Ratio

34dB

Dynamic Range

65.2dB

Exposure Control

Auto/Manul/Regional

Image Format

RAW,BMP,JPG,PNG

Image Control

Framerate,Image defination,snap mode,image lightness,exposure time,RGB,GAMMA,Contrast, sharpness

PC System

Windows XP(32Bit); Win7(32/64bit) ; Win8(32/64bit)

Software Interface

TWAIN,DirectShow

Output

USB2.0 480Mb/s

Working Instruction

LED

Power

Less 0.8W

Power Supply

USB 5V

Operating Temperature

0-50C

Storage Temperature

-20-60C

Operating Humidity

10%-90%RH

Storage Humidity

10%-60%RH

Camera Mount

C/CS

Camera Size

45*48*36.4mm

Gross Weight

100g

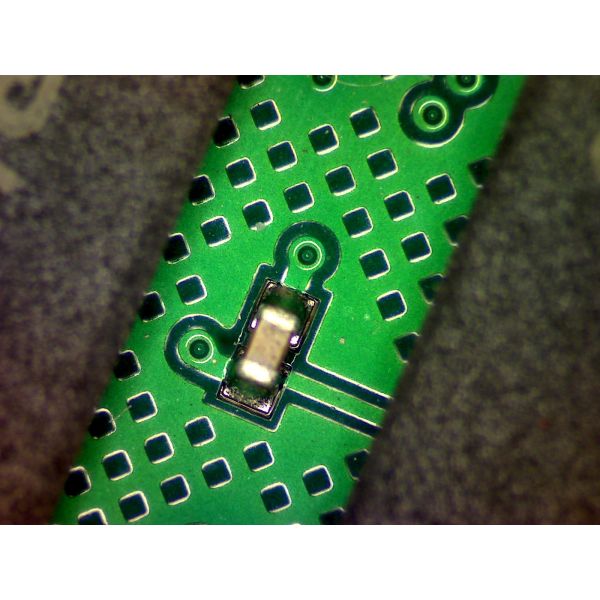

Image Examples:

10MP USB Digital Microscope Camera, Electronic Eyepiece

10MP USB Digital Microscope Camera, Electronic Eyepiece

Packing List:

Microscope Camera

USB Cable

Driver and Software CD

More information about microscope camera image system and macro image system, please visit:

http://www.kalinu-technology.com

http://www.chinavisionsystem.com
