Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-800
Place of Origin :
Wenzhou China
MOQ :
1
Price :
19500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
800 Capsules/min
No.of segment bores :
6
Suitable fof capsule :
00#-5#
Total power :
4.5Kw(standard)
Overall weight :
1000Kgs
Air consumption :
≤6m³
Description

High Quality Capsule Filling Machine Hard Capsule Filling Machine High-Tech Pharmaceutical Pharmaceutical Machine

Technical parameters:

Output 800Capsules/min
No.of segment bores36 6
Suitable fof capsule 00#-5#
Total power 4.5Kw(Standard configuration)
Overall weight90 1000Kgs
Overall diemensions
840(+339)mm×820(+339)mm×2000m
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Orientation of the empty capsule:

Broadcast description
The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.
principle
1. The thrust point of the capsule head is on the capsule body;
2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.
Orientation of the empty capsule

Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine

Rejection station:

Use
Some empty capsules may keep the body cap still for some reason, and remain in the upper module hole; to prevent mixing into the finished product, they are removed before the capsule is closed.
Principle
A push hand that can reciprocate up and down, located between the upper module and the lower module, with a thimble hand. When the upper and lower modules rotate, the push hand stops at the lower limit position and the thimble breaks away from the upper module. When the module stops at this station, the push hand goes up and the thimble mounted on the push hand is inserted into the upper module hole.
①. If there is a pulled out capsule cap in the upper mold hole, the upward top has no impact on the capsule cap.
②. If there is an open empty capsule in the upper mold hole, the upper module is pushed out by the upward thimble and sucked into the air chamber.
 Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine

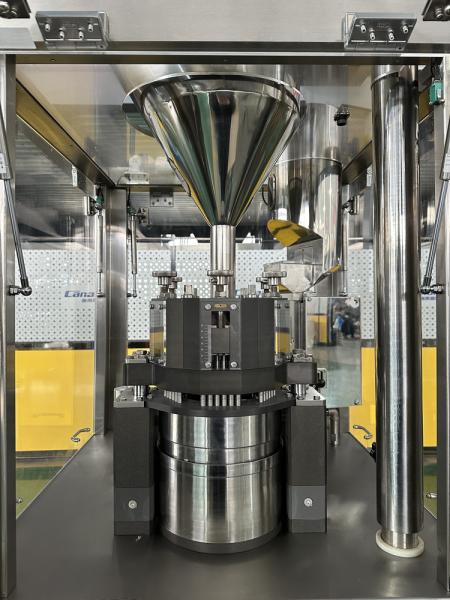

Material feeding method:

Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine
Manual feeding Lifter feeder(option)
Vacuum feeder (option)
1.Add the material to the hopper manually.
2.Large dust, high labor intensity.
3.No cost, to adapt to the smaller batch production
1.Through the transition feeding pipe, with a soft connection.
2.The feeding process is closed, no dust overflow, safety and health.
3.Adapt to the mixture of materials, can control to solve the problem of material stratification.
1.Compact structure, tight, no dust pollution, safety and health, low noise.
2.Simple installation, easy to operate, the transport is well adapted to the requirements of the filling machine.
3.Applicable to the 2.7m storey-high clean workshop.

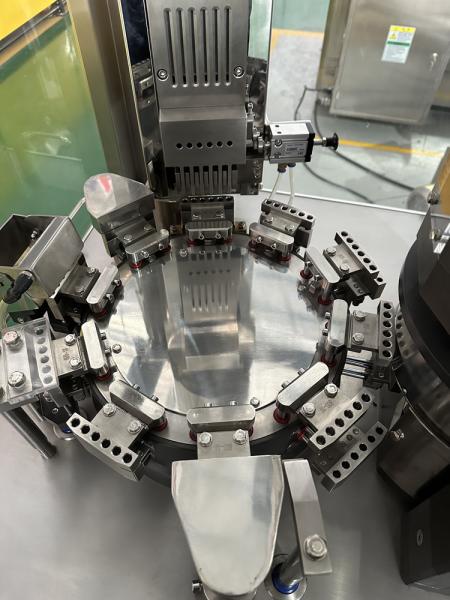

Closed station turntable:

1.Use the imported silicone sealing ring to reduce the condition that the powder is brought into the turntable due to the expansion of the movement axis, and smooth operation, high accuracy;
2.It solves the complicated problem of installing and dismantling the mold, reduces the labor intensity of the staff, and strengthens the service life of the station rotary table.

Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine

Three-dimensional adjustment mechanism:

1.Eliminate the metering plate, copper ring natural deformation degree, uniform clearance, reduce the phenomenon of powder leakage;
2.Easy to disassemble and disassemble, easy to clean;
3.Ensure device differences.
Pharmaceutical All In Capsule Filling Machine Hard Tablet Filling Machine
