Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-7500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
85000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
7500 capsules/min
No.of segment bores :
54(four rows)
Total power :
18Kw(Standard configuration）
Overall weight :
4000Kgs
Air consumption :
≤18m³
Vacuum :
-0.03 ~ -0.06Mpa
Description

Overview of the machine:

Pellet Filling Machine Pharmaceutical Factory Capsule Filling Machine Manufacturer Powder Capsule Filler

The NJP-7500 series capsule filling machine designed and produced by our factory has been improved and innovated many times to make the whole machine beautiful, easy to operate and smooth to run. This model is a special equipment for mass filling production.
NJP-7500 capsule filling machine adopts intermittent rotary mechanism and packing quantitative filling method. It is suitable for filling 00# - 5# capsules with powder and particles, and can be equipped with automatic bag feeder, vacuum feeder, gold inspection machine, polishing machine, elevator and other auxiliary equipment.

Technical parameters:

Output 7500Capsules/min
No.of segment bores
54(four rows)
Suitable fof capsule 00#-5#
Total power 18Kw(Standard configuration)
Overall weight 4000Kgs
Overall diemensions 1884+(530)mmX1404+(275)mmX2148mm
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤18m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±3%~±7%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

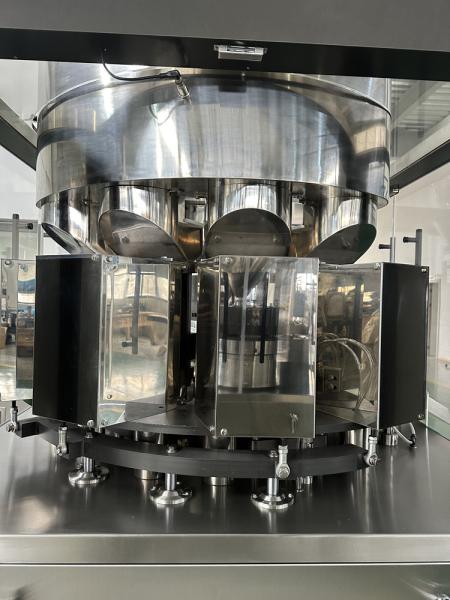

Vacuum separation mechanism:

Pharma Pellet Medical Capsule Filling Machine Powder Capsule filler

Modular powder filling mechanism:

Pharma Pellet Medical Capsule Filling Machine Powder Capsule filler
