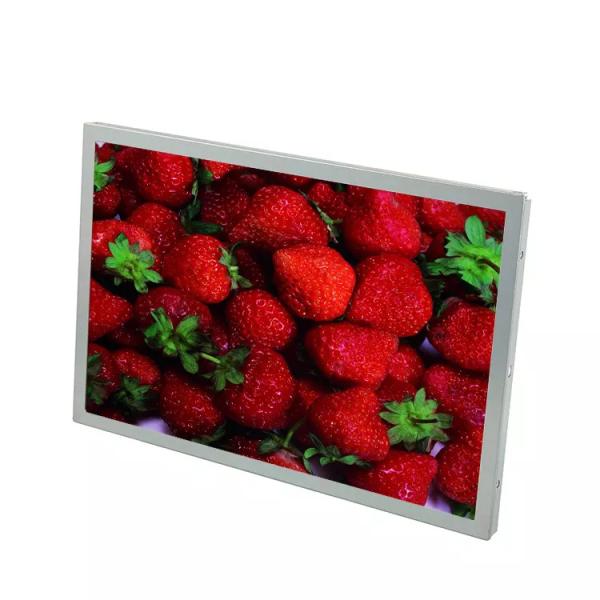

Auo Display G121EAN01.3 12.1 Inch 1280*800 LCD Screen With Sunlight Readable 1500 Nits LVDS IPS
Auo Display G121EAN01.3 12.1 Inch 1280*800 LCD Screen With Sunlight Readable 1500 Nits LVDS IPS
Specifications
Brand Name :
AUO
Model Number :
G121EAN01.3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Packaging Details :
Natural packaging
Size :
12.1 inch
Resolution :
1280*800
Interface :
LVDS
Display Mode :
Normally Black
Viewing Direction :
89/89/89/89
Lumiance :
1500 cd/m² (Typ.)
Active Area(mm) :
261.12×163.2 mm
Outline Dimension :
283×185.1×9.9 mm
Operation Temp :
-30℃ ~ +85℃
Storage Temp :
-30℃ ~ +85℃
Description

Auo display G121EAN01.3 12.1 inch 1280*800 LCD Screen with Sunlight Readable 1500 nits LVDS IPS​

G121EAN01.3

AUO 12.1 inch 1280*800 display for Industry application

Manufacturer AUO
Model Name G121EAN01.3 
Screen Size 12.1inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1280(RGB)×800 [WXGA]
Arrangement RGB Vertical Stripe
Active Area(mm) 261.12(H)×163.2(V) mm
Bezel Area(mm) 283(H)×185.1(V) mm
Treatment Anti-glare,Hard coating (3H)
Luminance 1500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 7/9 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode IPS, Normally Black, Transmissive
Color Depth 262K/16.7M 72% (CIE1931)
Backlight WLED , 70K hours , W/O Driver
Net Weight 490g (Max.)
Used for Industrial Application
operating frequency 60Hz
Touchscreen Without
Signal Type 20 pins LVDS (1 ch, 6/8-bit) , Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30~ 85°C
Operating Temp.: -30~85°C
Package AUO original package;
