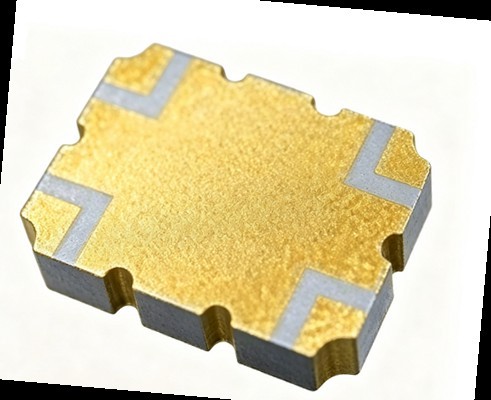

JR-TDC0275W45S Directional Coupler 30-520 MHz 46 dB Coupling RoHS Compliant Surface Mount
JR-TDC0275W45S Directional Coupler 30-520 MHz 46 dB Coupling RoHS Compliant Surface Mount
Specifications
Directivity :
28.0 dB min
Product Type :
Directional Coupler
Brand Name :
JYRF
VSWR :
1.10:1 max
Frequency Range :
30-520 MHz
Insertion Loss :
0.15 dB max
Operating Temperature :
-55 °C to +105 °C
Certification :
RoHS Compliant
Average CW Power :
200 Watts
Model Number :
JR-TDC0275W45S
Place of Origin :
Shenzhen, Guangdong, China
Model :
JR-TDC0275W45S
Coupling :
46±1.0 dB
Description

Electrical Specifications

ParameterFrequency (MHz)Min.Typ.Max.Unit
Coupling30-520-46±1.0-dB
Insertion Loss30-520--0.15dB
VSWR30-520--1.10:1
Directivity30-52028.0--dB

Features

  • Low Insertion Loss
  • High Directivity
  • Low VSWR
  • Good Repeatability
  • CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide
  • Immersion gold, prevent surface oxidation & scratch
  • RoHS Compliant

Applications

  • Power monitoring and signal sampling
  • VSWR monitoring
  • Base station and repeater applications
  • Wireless communication systems

Maximum Ratings

Operating Temperature: -55 °C to +105 °C

Storage Temperature: -55 °C to +105 °C

Average CW Power: 200 Watts
