JY-MYB0530 Series Molded Power Inductor 0.1-10uH 0530 SMD High Performance RoHS Compliant
JY-MYB0530 Series Molded Power Inductor 0.1-10uH 0530 SMD High Performance RoHS Compliant
Specifications
Certification :
RoHS Compliant
Mounting Type :
Surface Mount
Packaging :
Tape & Reel
Brand Name :
JYRF
Model Number :
JY-MYB0530 Series
Place of Origin :
China
Size :
0530
Inductance Range :
0.1-10uH
Operating Temperature :
-40℃ to +125℃
Product Type :
SMD Molded Power Inductor
Grade :
Automotive (V) / Industrial (S)
Description

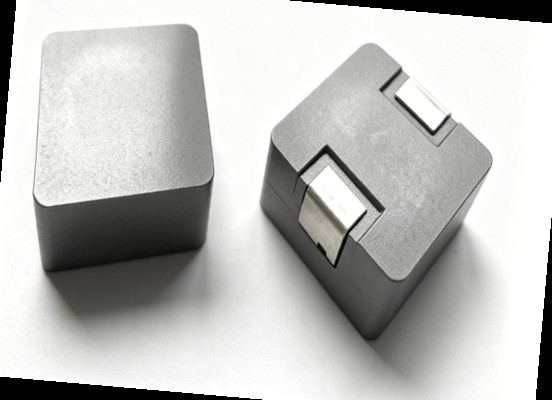

JY-MYB0530 Series SMD Molded Power Inductor

Part Numbering System

PositionCodeDescription
1JYProduct code
2MYBSeries code
30530Product size
4101Inductance: 1R0=1.0uH / 100=10uH / 101=100uH
5MTolerance: K±10% / L±15% / M±20% / P±25% / N±30%
6TPackaging: T tape & reel
7VGrade: V automotive / S industrial

Configuration and Dimensions

A 7.5 B 6.6 C 3.0 (unit: mm)

General Specifications

  • Operating temperature range: -40℃ to +125℃
  • Storage temperature: -10℃ to +40℃, R.H. 65% Max
  • Rated DC current: temperature rise (ΔT) approx. 40℃ at Irms
  • RoHS compliant, lead-free and halogen-free available

Grade: Automotive (V) / Industrial (S). Test condition: 0.1V/100KHz. Saturation current based on inductance drop ≤30%; temperature rise current based on ΔT=40℃.

Electrical Characteristics

Part NumberInductance (uH)RDC Max (mΩ)Isat (A)Irms (A)
JY-MYB0530R10MT0.1±20%3.030.0020.00
JY-MYB0530R33MT0.33±20%6.513.0013.00
JY-MYB0530R47MT0.47±20%7.416.0012.00
JY-MYB0530R68MT0.68±20%12.014.008.50
JY-MYB0530R75MT0.75±20%13.012.008.00
JY-MYB05301R0MT1.0±20%14.09.007.00
JY-MYB05301R2MT1.0±20%16.08.506.50
JY-MYB05301R5MT1.5±20%25.08.206.00
JY-MYB05302R2MT2.2±20%33.07.505.50
JY-MYB05303R3MT3.3±20%38.05.505.00
JY-MYB05304R7MT4.7±20%60.04.204.00
JY-MYB05305R6MT5.6±20%63.04.004.00
JY-MYB05306R8MT6.8±20%76.04.003.50
JY-MYB05308R2MT8.2±20%105.03.703.30
JY-MYB0530100MT10±20%128.02.502.80

Note: Electrical specs at 25℃, test 0.1V/100KHz. Saturation current based on L drop ≤30%, temperature rise current based on ΔT=40℃.

Soldering Conditions

  • Reflow soldering (lead-free): preheat to 150℃; peak temperature 260℃ (max); reflow times ≤2; solder paste thickness 0.08mm optimal / 0.1mm max
  • Hand soldering: 20W iron with 1.0mm tip diameter; soldering time within 3 seconds

Packaging

Tape and reel packaging. Peel force: 20g-80g, peel speed 300mm/min±10%. Tape & Reel, 2000 pcs/reel.
