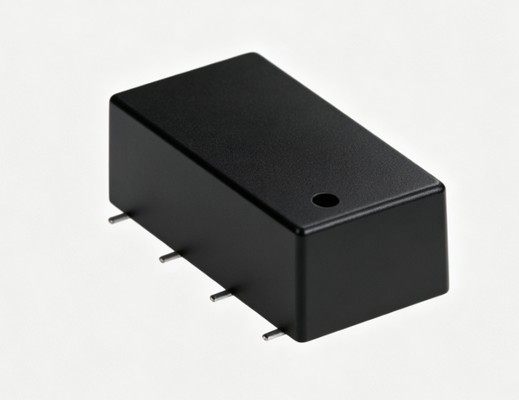

JY-SCHF-17+ LC High Pass Filter

Product Overview

JY-SCHF-17+ is a LC High Pass Filter with 18-200 MHz passband, 50 ohm impedance in a SMT package. It offers low insertion loss and high stopband rejection, making it ideal for RF front-end and communication applications.

Electrical Specifications

ParameterSpecificationTest Condition
Passband18-200 MHz50 Ohm system
Stopband Rejection20 dB @ 13 MHzF3
Stopband Rejection30 dB @ 9 MHzF4
Impedance50 Ohm-
TechnologyLumped LC-
InterfaceSMT-

Features

  • Low insertion loss in the passband above the cut-off frequency
  • High attenuation below the cut-off for low frequency rejection
  • Compact SMD package for space-constrained PCB design
  • 50 ohm impedance, matched for RF system design
  • RoHS compliant and suitable for lead-free soldering

Applications

  • RF transceiver front-ends
  • Communication systems
  • Signal conditioning and test equipment
  • IF and RF signal processing

Packaging

Products are supplied in tape and reel packaging, ready for automated SMT assembly.
