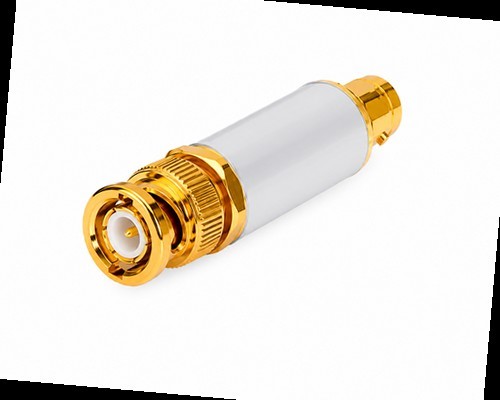

Bulk Microwave Bandpass RF LC Filter 140-160 MHz 940nm High Stopband
Bulk Microwave Bandpass RF LC Filter 140-160 MHz 940nm High Stopband
Specifications
Brand Name :
JYRF
Passband :
140-160 MHz
Interface :
Connectorized
Stopband Rejection :
29 dB @ DC-120 MHz; 30 dB @ 190-2000 MHz
Model Number :
JY-BBP-150+
Technology :
Lumped LC
Product Type :
LC Bandpass Filter
Place of Origin :
China
Certification :
RoHS Compliant
Impedance :
50 Ohm
Description

JY-BBP-150+ LC Bandpass Filter 140-160 MHz 50 Ohm Connectorized RoHS Compliant

Product Overview

JY-BBP-150+ is a LC Bandpass Filter with 140-160 MHz passband, 50 ohm impedance in a Connectorized package. It offers low insertion loss and high stopband rejection, making it ideal for RF front-end and communication applications.

Electrical Specifications

Parameter Specification Test Condition
Passband 140-160 MHz 50 Ohm system
Stopband Rejection 29 dB @ DC-120 MHz F3
Stopband Rejection 30 dB @ 190-2000 MHz F4
Impedance 50 Ohm -
Technology Lumped LC -
Interface Connectorized -

Features

  • Low insertion loss across the passband
  • High rejection at both lower and upper stopbands
  • Connectorized package for easy system integration
  • 50 ohm impedance, matched for RF system design
  • RoHS compliant and suitable for lead-free soldering

Applications

  • RF transceiver front-ends
  • Communication systems
  • Signal conditioning and test equipment
  • Band selection and channel filtering

Packaging

Products are supplied individually packaged, ready for system integration.
