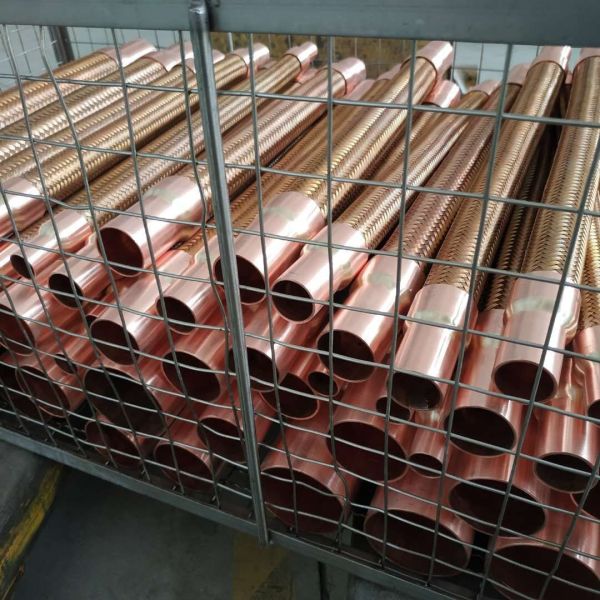

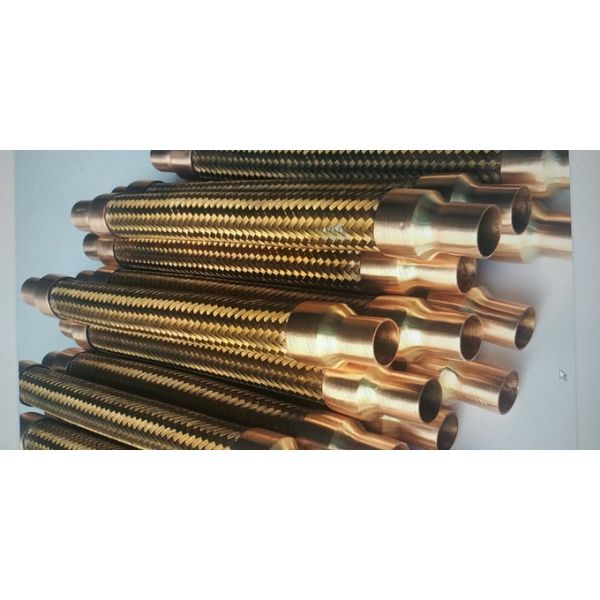

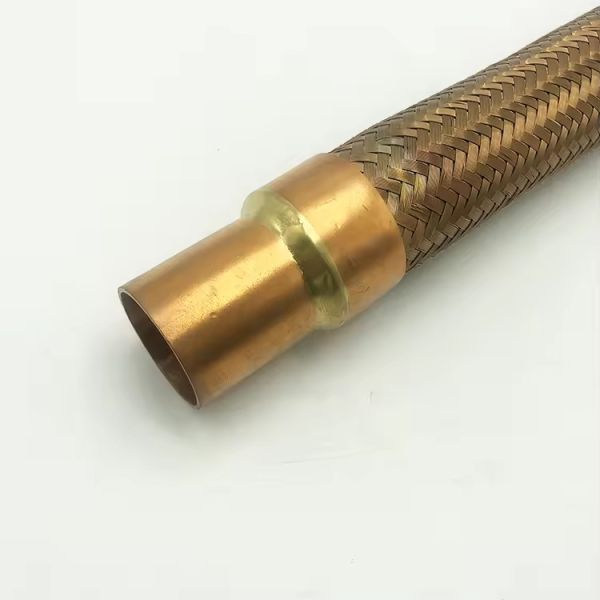

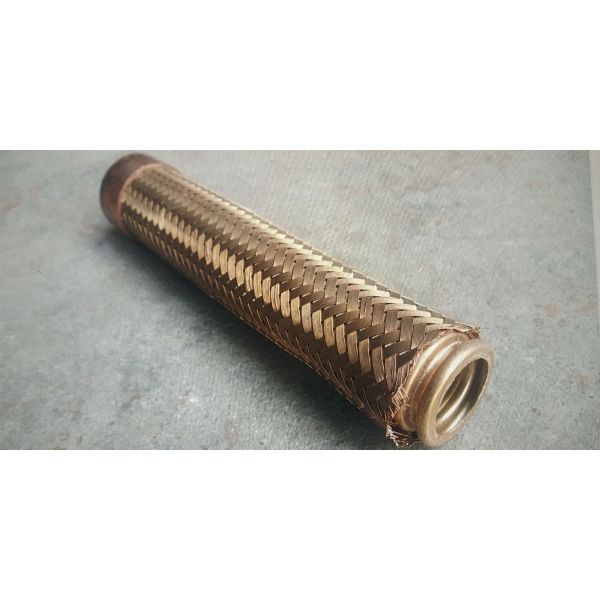

Braided bronze hose is designed for providing protection from galvanic corrosion. It is manufactured from first-class bronze strip which contains less zinc content.

Bronze braided hose is provided in unbraided, single braided or double braided. It is frequently used in moderate pressures and temperatures, for example, the refrigeration industry. Under exposure to flame, bronze flexible hoses show ideal resistant to bursting, cracking and crushing.

This hose is an extremely flexible, convoluted, pressure tight metal hose which exhibits prolonged resistance to vibration, heat, and pressure.

Features:
The hose innercore is formed from a specially annealed brass strip which features more than the usual number of convolutions per inch. The tubing is then compressed to place each helical convolution against the next, thus further increasing the flexibility. Additional protection is provided by a heavy braid of high tensile strength bronze wire which is non corrosive, heat, pressure and stress resistant.

Application:
Electrical Wiring Protection, Abrasion Resistance, Non-Sparking, and Electrical Continuity.

Construction:

Inner core -Brass; Braid – 1 Layer Bronze Fine Wire; Braid Weave – 1 over x 1 under.

Fittings:
Customers may specify from a wide range of fittings to satisfy electromagnetic hermetic sealing, high temperature, self-locking, or other requirements. Typically, end fittings for industrial applications are made of brass; however, more severe operating environments may call for fittings constructed of other materials.

Notes:

-Working pressure ratings are based upon 70°F (21° C) and uniform pressure environments.

-Working pressure characteristics will be reduced at higher temperatures.
-Working pressures will vary based upon end connections.
