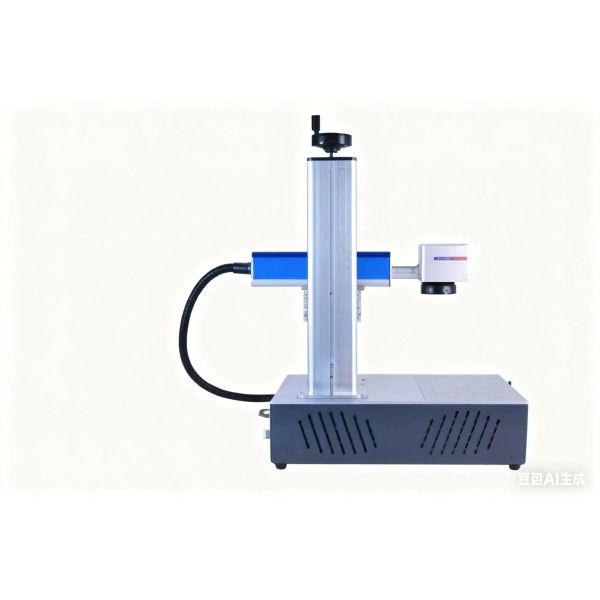

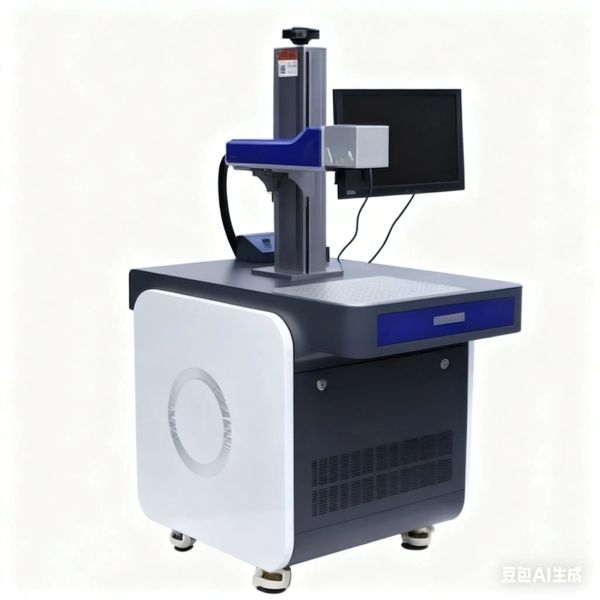

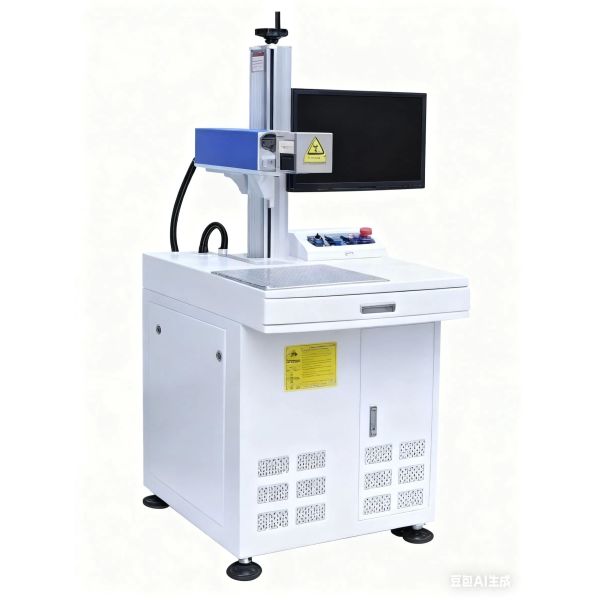

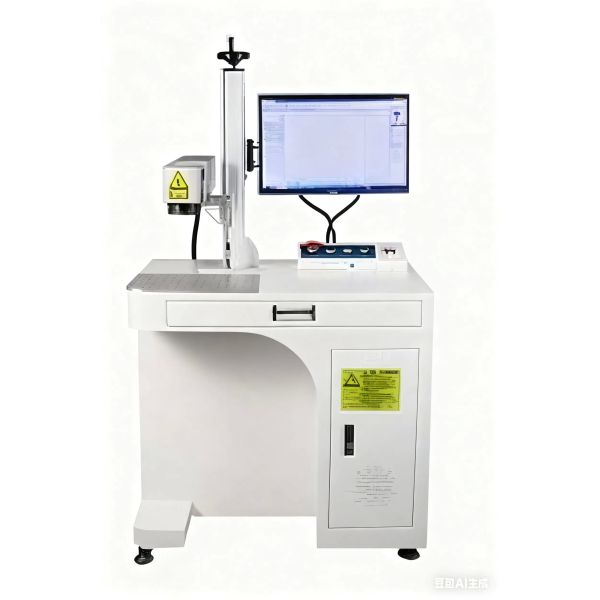

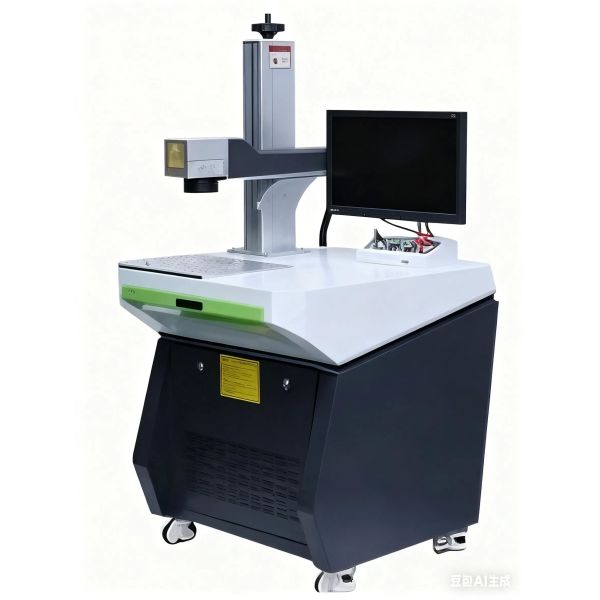

HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
HF20 Fiber Laser Marking Machine for Carbide
Specifications
MOQ :
1 Piece
Brand Name :
DEMINA
Model Number :
HF20
Certification :
ISO 9001
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
30 DAYS
Packaging Details :
WOODEN CASE
Model NO. :
HF20
Laser Visibility :
Visible
Applicable Material :
Metal
Cooling System :
Air Cooling
Technical Class :
Continuous Wave Laser
Laser Wavelength :
Fiber Laser
Laser Classification :
Free Electron Laser
Type :
Fiber Ser Marking Machine
Marking Method :
Scanning Marking
Transport Package :
Wooden Case
Specification :
1350*1450*1730mm
Trademark :
DEMINA
Origin :
China
Description
Description
Fiber laser marking machine is the use of fiber laser as the main light source, through the precision control software control high-speed scanning vibroscope laser beam focused into fine laser points, action directly on the surface of the material, the material gasification at high temperature to form the required marking traces. Fiber laser has the characteristics of small size, excellent beam quality and maintenance-free.


Main Parameters

Model

HZ-ZF20W/30W/50W

Laser Power

20W / 30W / 50W

Laser Center Wavelength

1064nm

Laser Beam Quality (M²)

＜1.5

Laser Repetition Frequency

20-100KHz

Cooling Method

Air cooling

Working Area

110*110 150*150 175*175 200*200(4 options)

Marking Depth

0.1-0.5 mm

Marking Speed

1-5000mm/s

Minimum Line Width

≤0.01mm

Minimum Character

≤0.3mm

Repeat Positioning Accuracy

≤0.01mm

Total Power Consumption

≤600w

Power Requirement

220V/50Hz/10A
