Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Grinding Wheel Dressing Machine with High Quality
Specifications
Model NO. :
BT-2
Type :
Surface Grinding Machine
Processing Object :
Cam
Abrasives :
Grinding Wheel
Controlling Mode :
Artificial
Automatic Grade :
Manual
Cylindrical Grinder Type :
End Cylindrical Grinder
Precision :
Precision
Certification :
CE, ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
1200*1400*1680(mm)
Trademark :
DEMINA
Origin :
China
HS Code :
8464909000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $20,000 / Piece
Description
Product Description

BT-2 grinding wheel dressing machine with high quality adopts the principle of different materials and different rotational speed between the repaired wheel and the repairing wheel to achieve the shape dressing of the repaired wheel.The machine can perform simple and efficient dressing on the diamond wheel, CBN wheel and wheel set composed of multiple wheels. It can dress plane, Angle, arc and shaped wheel and is easy to operate with high precision.

Product Parameters
1 Taper of Diamond /CBN wheel spindle BT30
2 Maximum diameter of Diamond/CBN wheel 200mm
3 Minimum diameter of Diamond /CBN wheel 60mm
4 Maximum thickness of Diamond /CBN wheel 80
5 Bore of Diamond /CBN wheel 31.75mm
6 Speed of Diamond /CBN wheel 720 rpm
7 Motor power of Diamond /CBN wheel 750W
8 Left and right distance of Diamond /CBN wheel 120mm
9 Front and back distance of Diamond /CBN wheel 125mm
10 Repairing wheel (SIC) specification Ï• 180*10*Ï•31.75mm
11 Repairing wheel (SIC) speed 10-3000 rpm
12 Left and right swing number of repairing wheel (SIC) 1-60Hz
13 Left and right swing distance of repairing wheel (SIC) 0-50mm
14 Motor power of repairing wheel (SIC) 750W
15 Motor power of swinging 15W
16 Angle of repairing wheel is manually selected ±90°
17 Magnification of CCD 15- 120 times

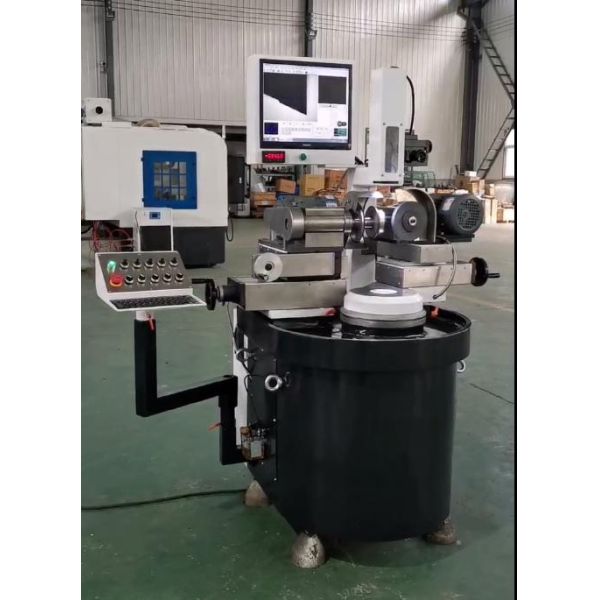

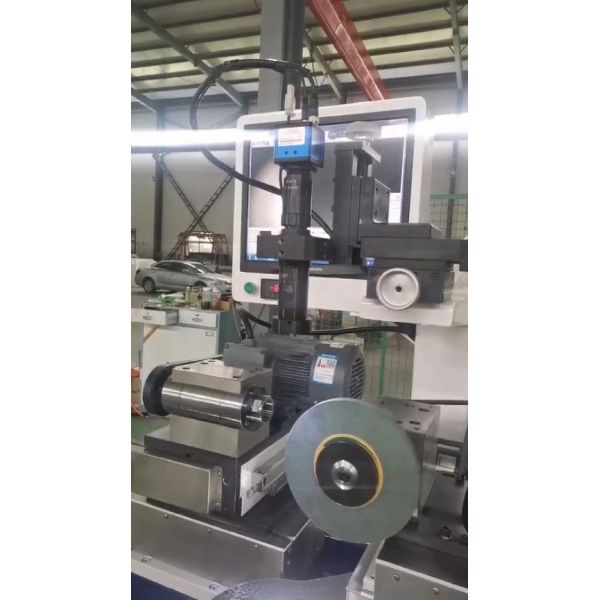

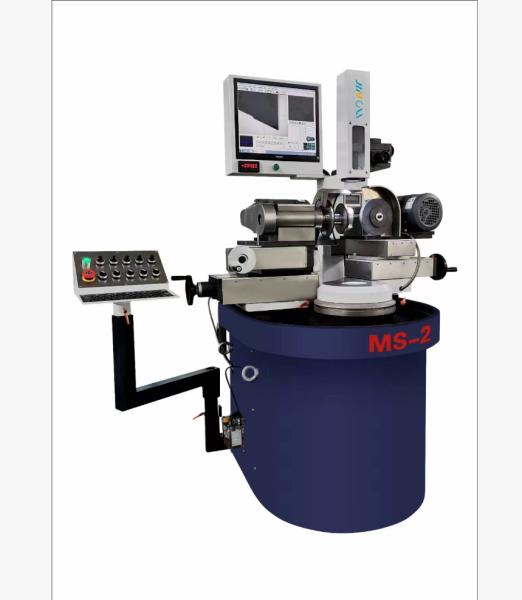

Detailed Photos

Grinding Wheel Dressing Machine with High QualityGrinding Wheel Dressing Machine with High Quality
Welcome to visit our company for grinding wheel dressing machine with high quality!
