BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
BT-150DS High precision 5-axis CNC grinding machine for PCD/CBN super hard cutting tools
Specifications
Brand Name :
DEMINA
Model Number :
BT-150DS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
60 work days
Packaging Details :
Wooden case
Supply Ability :
50 SETS PER YEAR
Model NO. :
BT-150DS
Type :
Tool Grinding Machine
Controlling Mode :
CNC
Degree of automation :
Automatic grinding
Suitable production volume :
Medium to large batch sizes
Processing Object :
Edge/Blade/Arc
Abrasives :
Grinding Wheel
Suitable tool types :
PCD blades, CBN blades, and other ultra-hard cutting tools
Accuracy maintenance :
Constant-pressure grinding, wheel cleaning, wheel re-sharpening, and programmed compensation for wheel wear
Material :
Metal
Axis Number :
5-Axis
Non-standard tool adaption device :
Electric lifting adjustment axis for the grinding head
Lifting stroke :
±75 cm
Machine Tool Bed (Base) Weight :
1.6 Tons
Radial Run-out Rotation Accuracy :
0.002 mm
Axial Run-out Rotation Accuracy :
0.003 mm
OEM & ODM Custom :
Accept
Transport Package :
Wooden Case
Specification :
1890× 1650× 1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460310000
Production Capacity :
50 Sets / Year
Description

Product Description

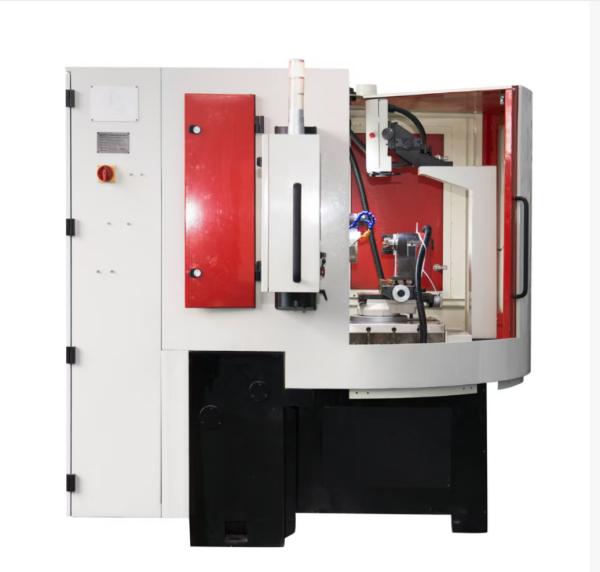

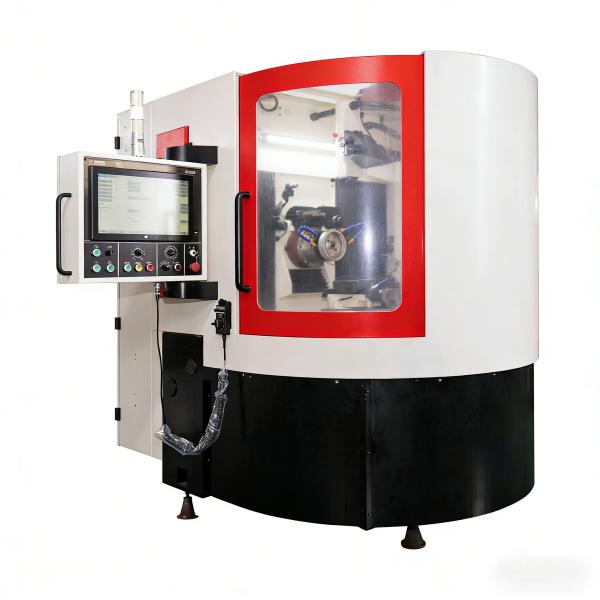

The BT-150DS is a six-axis CNC tool grinder consisting of the wheel oscillation axis (X-axis), workpiece feed axis (Y-axis), wheel vertical movement axis (Z-axis), workpiece horizontal rotation axis (B-axis), wheel tilt axis (C-axis), and workpiece indexing axis (A-axis).

This machine is suitable for the production and regrinding of ultra-hard tools such as PCD and CBN inserts in medium to large batches. Once centering is completed, the system achieves the ideal state of "constant-pressure grinding and flexible feed" with the push of a button.

The workpiece indexing axis (A-axis) enables the machine to grind rotary tools and adopts the BT30 standard interface, allowing for the selection of corresponding tool holders or mandrels based on the tool type, offering greater flexibility in tool clamping. When paired with specialized insert fixtures, it enables automatic negative chamfering of CBN inserts.


Product Parameters


BT-150DS CNC diamond tool grinding machine

Spindle and Grinding Wheel

1

Diameter of grinding wheel

150mm

2

Grinding wheel center hole

40mm

3

Power of grinding spindle

5KW

4

Adjustable range of grinding speed(RPM)

1000～8,000 RPM

5

Servo motor swing, adjustable swing frequency

0 ~ 60 times/min

6

Wheel oscillation axis(X-axis)

300mm

7

Workpiece feed axis(Y-axis)

100mm

8

Wheel vertical movement axis(Z-axis)

-125mm~125mm

9

Angle of the grinding wheel spindle in the vertical plane (C-axis)

-25°-25°

10

Workpiece horizontal rotation axis(B-axis)

270°

11

Workpiece indexing axis(A-axis)

360°

Tool work-head

12

Linear axis display resolution

0.001mm

13

Rotation axis display resolution

0.001°

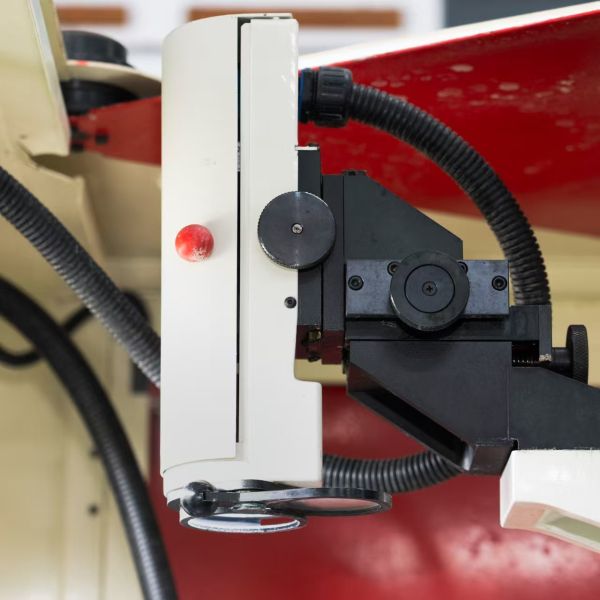

CCD Monitoring System

14

Max Magnification of Optical Microscope

0.7-4.5times

15

Magnification of CCD Measuring System, roughly

70times

Dimensions and weight

16

Coolant Tank with Filter Paper

About70L

17

Overall Dimensions L*W*H

1890*1650*1980mm

18

Overall Weight With Coolant Tank

2400kg

Power supply

19

Electrical Supply

12KW

20

Voltage Requested

380V/3 Phase/50Hz
