Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Automatic PCD Cutting Insert Grinding Machine
Specifications
Brand Name :
DEMINA
Model Number :
BT-150D
Certification :
IS09001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
50 DAYS
Packaging Details :
WOODEN CASE
Description

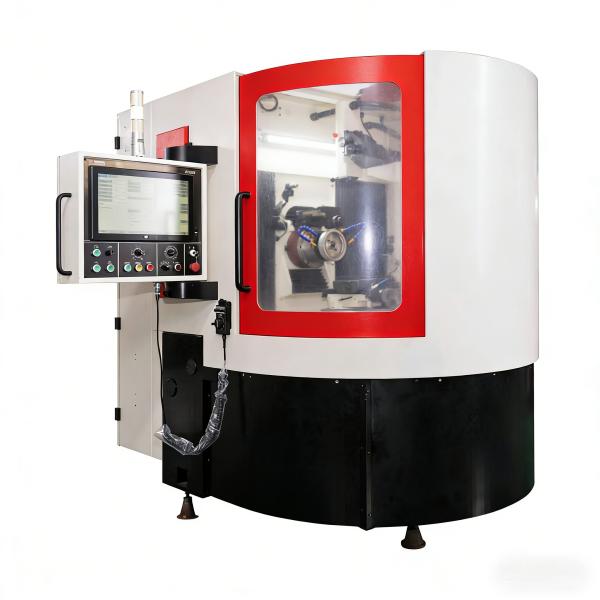

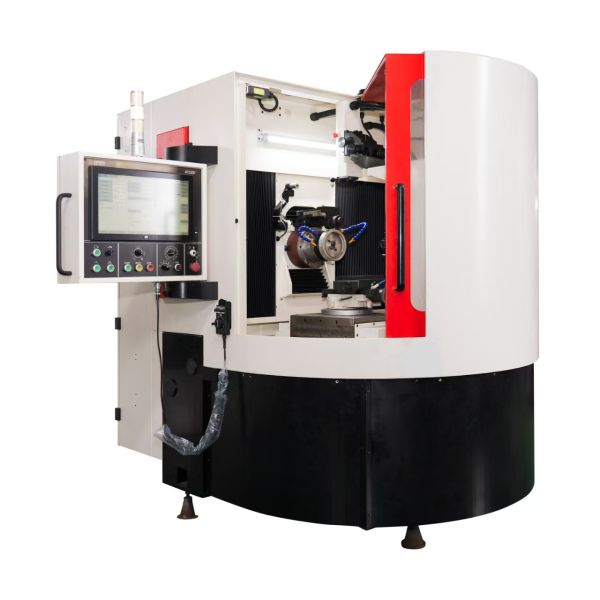

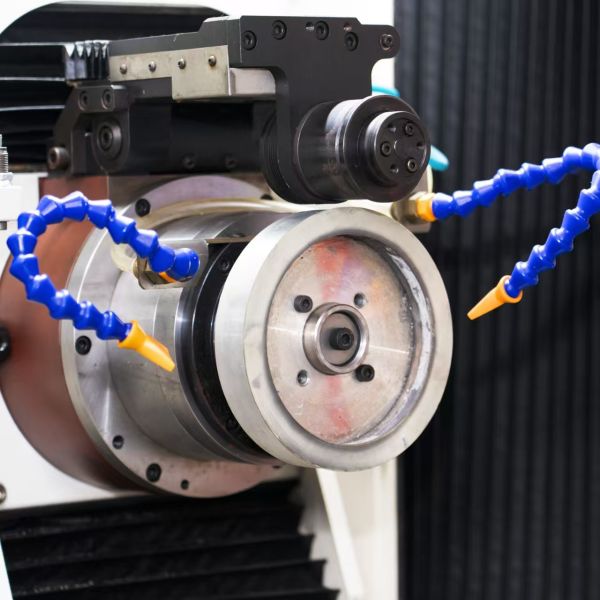

BT-150D automatic PCD cutting insert grinding machine is made of grinding wheel oscillation axis(X-axis), grinding wheel tilt angle axis (B-axis), rotation axis in the horizontal plane(C-axis), working piece feeding axis(Y-axis). working piece feeding axis(Y-axis) is equipped with raster rule, and the closed loop position feedback is used to ensure the precision of micron level grinding. The tool grinder is reliable in performance and it is suitable for massive production of carbide inserts, PCD and CBN inserts. Once centering is finished, grinding will be done automatically, realizing constant pressure grinding and flexible feed. The even consumption of grinding wheel can be measured and compensated by the system, so production with long cycle time can be achieved.
