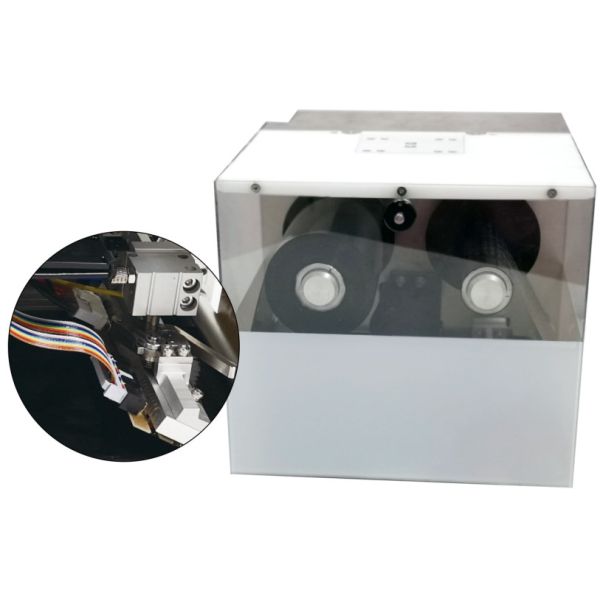

JW-UCS-9 Coding Machine AC 100~120V/220~240V
JW-UCS-9 Coding Machine AC 100~120V/220~240V
Specifications
Brand Name :
JINWANG
Model Number :
JW-UCS-9 Coding Machine
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Name :
JW-UCS-9 Coding Machine
Printing speed :
100-300mm/s (adjustable speed)
Size :
250x240x210mm(LxWxH)
Printing area :
107x107mm
Resolution :
300DPI 12 points/mm
Ribbon size :
Standard 110mmX600m; maximum up to 110mmX1000m
Ribbon gap :
0.5mm adjustable
Power :
AC 100~120V/220~240V
Working environment :
Temperature: 0~40℃; Humidity: 0~90%
Software interface :
RS232 standard industrial serial port communication, network communication; USB2.0 interface real-time data transmission
Weight :
9kg
Description

JW-UCS-9 Coding Machine AC 100~120V/220~240V

1. Introduction

This is an electric reciprocating automatic code printer; it is used for the color ribbon printing on the bag-packing machine. Automatic motor, non-contact switch trigger control, small size, easy installation, widely used in food, pharmaceutical and other industries.

2. Technical Parameters

1 Type

Intermittent
2 Printing area

107x107mm
3 Resolution

300DPI 12 points/mm
4 Printing speed

100-300mm/s *Actual production capacity may vary depending on product size, packaging material, etc.
5 Ribbon size

Standard 110mmX600m; maximum up to 110mmX1000m
6 Ribbon gap

0.5mm adjustable
7 Software interface

RS232 standard industrial serial port communication, network communication; USB2.0 interface real-time data transmission
8 Hardware interface

Input: print trigger

Output: It can output the printing completion signal, and can realize the signal output linkage of warning status and fault status.
9 User interface

Standard 7-inch color touch screen controller (equipped with USB2.0 interface and standard network interface)

File editing does not require a computer, built-in template software, warning and fault information display, print preview function
10 Print body

Standard network interface and USB communication interface, can be directly controlled by computer

Multi-language selection, different font selection, support windows true Type

Support graphics, Chinese printing, serial number, user-defined text printing, real-time time, date, offset date printing, support dynamic printing of variable data, including dynamic barcode, dynamic QR code, dynamic Chinese or other characters
11 Size

250x240x210mm(LxWxH)
12 Weight

~9.0kg
13 Electrical requirements

AC 100~120V/220~240V

Air source: Maximum 6.0Bar dry compressed air
14 Working environment

Temperature: 0~40℃; Humidity: 0~90%

3.Equipment Advantages

3.1. Larger area printing

① The intermittent printing area reaches 107x107mm ② Breaking through the limitations of the traditional 53mm print head ③ Compared with similar products

Larger printing area

3.2. Modular design

①Simple structure and stable operation ②Easy maintenance and less maintenance ③No wearing parts

3.3.Dual motor ribbon drive technology

① Ensure the stability of the ribbon gap and save ribbon ② Ensure the ribbon tension is always consistent ③ Replace the ribbon

Add easy and fast

4.Specially designed built-in modules

①Editing software and computer software are two-in-one ②Reduce the customer’s editing time ③The software can be customized
