Specifications
Model Number :
ABB-460
Weight :
About 925Kg
Handling Capacity :
110 Kg
Price :
$10000PCS
Packaging Details :
WOODEN CASE
Power Source :
~380V 50Hz/3.67KW
Supply Ability :
1PCS PER MONTH
Axis :
4
Installation Requirements :
Floor loading strength greater than 2500kg/m², cement layer thickness greater than 250mm
Robot Base Dimensions :
1007x720mm
Brand Name :
JWIM
MOQ :
1 PCS
Payment Terms :
L/C, T/T
Repeat Positioning Accuracy :
0.2mm
Delivery Time :
30 WORK DAYS
Reach :
2.4 m
Place of Origin :
CHINA JIANGSU
Description

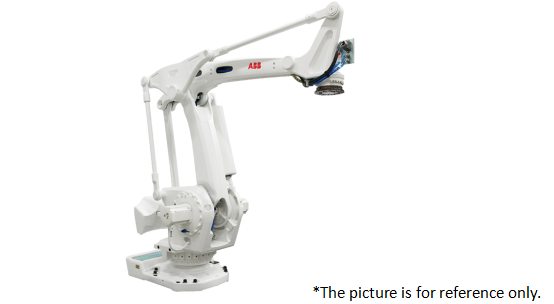

ABB-460 Palletizing Robot

1.Introduction

The robot palletizer is suitable for pesticide, fertilizer, veterinary medicine, condiment, beverage, food, beer, plastic and other manufacturers to palletize finished products of various shapes such as cartons, bags, cans, boxes, bottles and so on.

The structure is very simple, easy to maintain and repair; the main component parts are few, fewer accessories, low maintenance cost; can be controlled on the control cabinet screen, humanized operation; all-weather operation, equipped with robot hand can reduce the labor intensity of workers.

2.Technical Parameters

1 Handling Capacity 110 Kg
2 Reach 2.4 m
3 Axis 4
4 Repeat Positioning Accuracy 0.2mm
5 Robot Base Dimensions 1007x720mm
6 Installation Requirements Floor loading strength greater than 2500kg/m², cement layer thickness greater than 250mm
7 Power Source ~380V 50Hz/3.67KW
8 Weight About 925Kg

3.Palletizing Height and Speed

1 Palletizing Height 1700mm (include pallets)
2

Palletizing Speed

 Axe1: +165~-165°(145°/s)
Axe2: +85~-40°(110°/s)
Axe3: +120~-20°(120°/s)
Axe6: +300~-300°(145°/s)

4.Common Robot Grippers

S/N Forms Of Grip Remark
1 Sucker Type Usually used for bags, cartons and other objects (can not be applied to the surface of the porous matrix, as well as items for liquid flexible packaging or uneven surface packaging), palletizing objects can be seamless.
2 Grabbing Type

Usually used for high-speed code bags, grab paper bags, woven bags and other bags, hook and claw type is suitable for wide mouth bucket.
3 Sandwich Type Usually used for boxes, boxes and other blocky objects, can be one box or more boxes at a time, the load is 40kg, there will be a large gap between the palletised object and the object.
