Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Agro, fine chemical, fertilizer oil round bottle labeling machine
Specifications
Model Number :
TN-150DL
Dimension of the whole machine :
2200×1100×1455mm(L×W×H)
Place of Origin :
made in China
Packaging Details :
wooden cases
Payment Terms :
L/C,T/T
Bottle Diameter :
Φ30-95mm
Applicable Label :
Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm Label backing width 16~200mm
Labeling precision :
±1mm 98% *Labeling accuracy varies according to material and label material.
MOQ :
1 set
Delivery Time :
15-90 work days
Power supply/power :
~220V 50Hz/2.0KW
Certification :
CE,CO,ISO
Price :
negotiation
Label size :
H 20-180mm L 50-320mm
Supply Ability :
1 set per month
Labeling speedLabeling speed :
50ml: 7000BPH 500ml: 5000BPH 1000m: 4000BPH
Brand Name :
JWIM
Weight :
~328Kg
Description

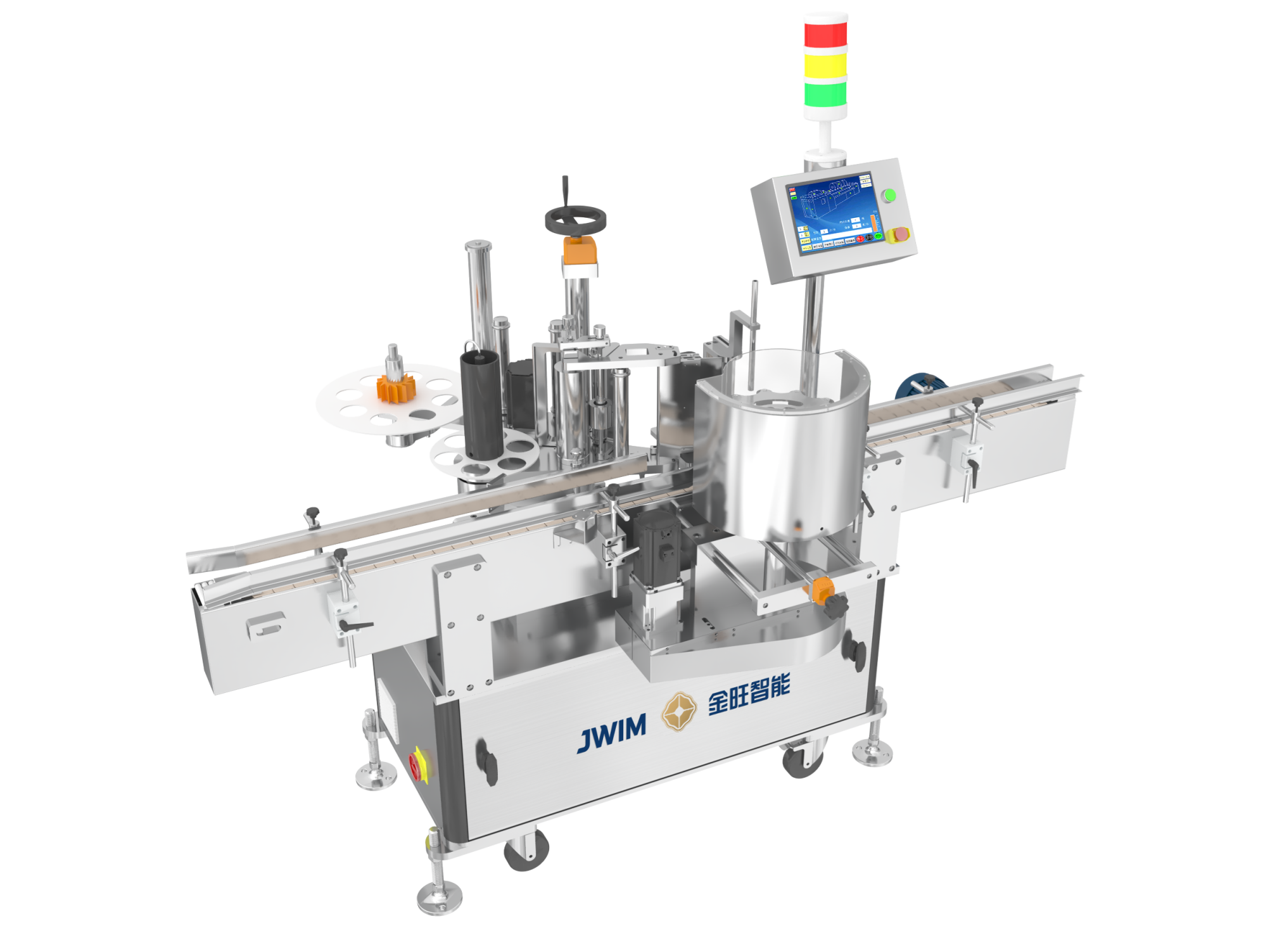

TN-150DL High Speed Positioning Labeling Machine

1.Introduction

TN-150DL intelligent self-adhesive labeling machine adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is easy to operate, intuitive, and has a fault display function.

It is suitable for automatic labeling of self-adhesive labels of various round containers.

Agro, fine chemical, fertilizer oil round bottle labeling machine

2.Machine Dimension

Agro, fine chemical, fertilizer oil round bottle labeling machine

3.Technical Parameters

1

Labeling speed

50ml: 7000BPH 500ml: 5000BPH

1000m: 4000BPH

*Actual capacity varies according to product size, package material, material characteristics, etc.

2

Bottle Diameter

Φ30-95mm

3

Label size

H 20-180mm L 50-320mm

4

Labeling precision

±1mm 98% *Labeling accuracy varies according to material and label material.

5

Applicable Label

Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm

Label backing width 16~200mm

6

Power supply/power

~220V 50Hz/2.0KW

7

Dimension of the whole machine

2200×1100×1455mm(L×W×H)

8

Weight

~328Kg

4.Electrical Configuration

No.

Name

Brand


1

PLC

Schneider


Agro, fine chemical, fertilizer oil round bottle labeling machine

2

Touch Screens

Schneider


Agro, fine chemical, fertilizer oil round bottle labeling machine

3

Inverter

Schneider


Agro, fine chemical, fertilizer oil round bottle labeling machine

4

Servo System

Schneider


Agro, fine chemical, fertilizer oil round bottle labeling machine

5

Fiber Optic Amplifier

Sick


Agro, fine chemical, fertilizer oil round bottle labeling machine

6

Switching Power Supply

Schneider


Agro, fine chemical, fertilizer oil round bottle labeling machine

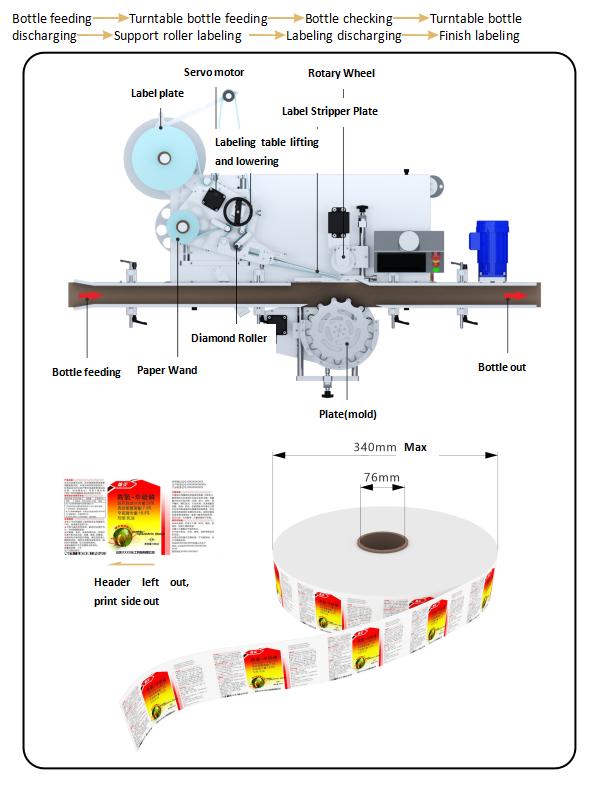

5.Working Process

Agro, fine chemical, fertilizer oil round bottle labeling machine

6.Advantage

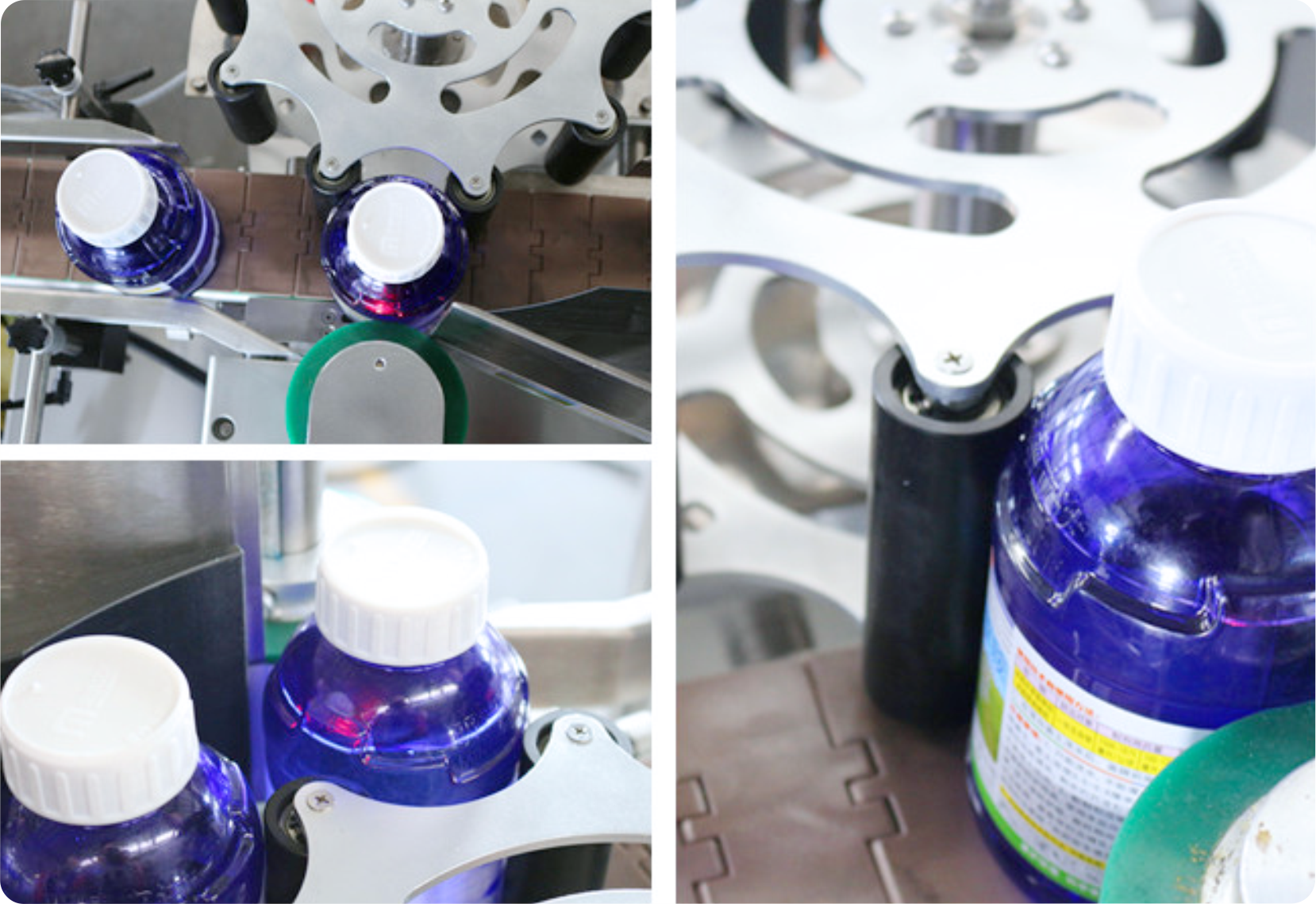

6.1 The latest positioning labeling mechanism, without the need for front-channel bottle separation speed, bottle positioning accuracy.

Agro, fine chemical, fertilizer oil round bottle labeling machine

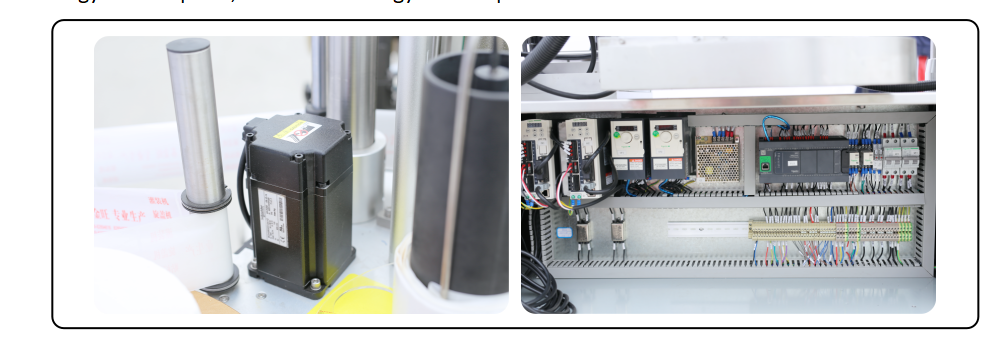

6.2 Adopting France Schneider Electric integrated servo system, high efficiency, stable and low energy consumption, 20% lower energy consumption than other brands .

Agro, fine chemical, fertilizer oil round bottle labeling machine

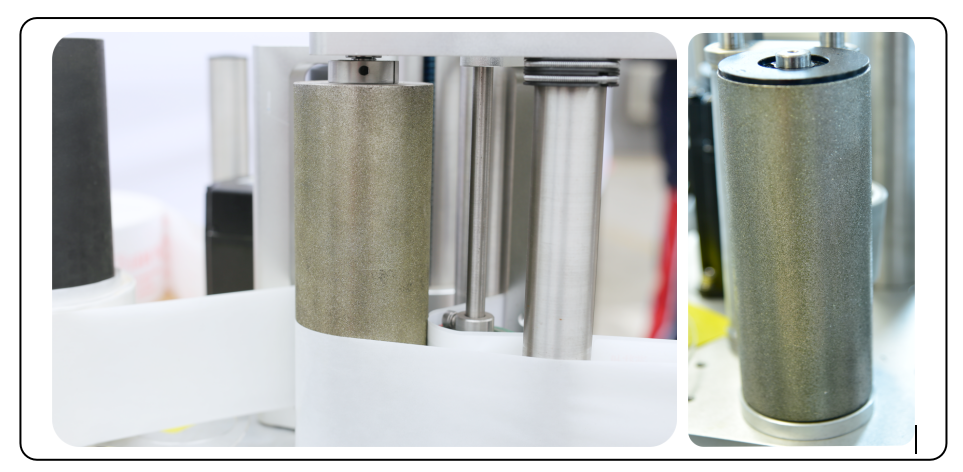

6.3 Pure alloy label feeding roller: no slipping, stable label feeding, more wear-resistant, significantly stronger than traditional rubber roller.

Agro, fine chemical, fertilizer oil round bottle labeling machine

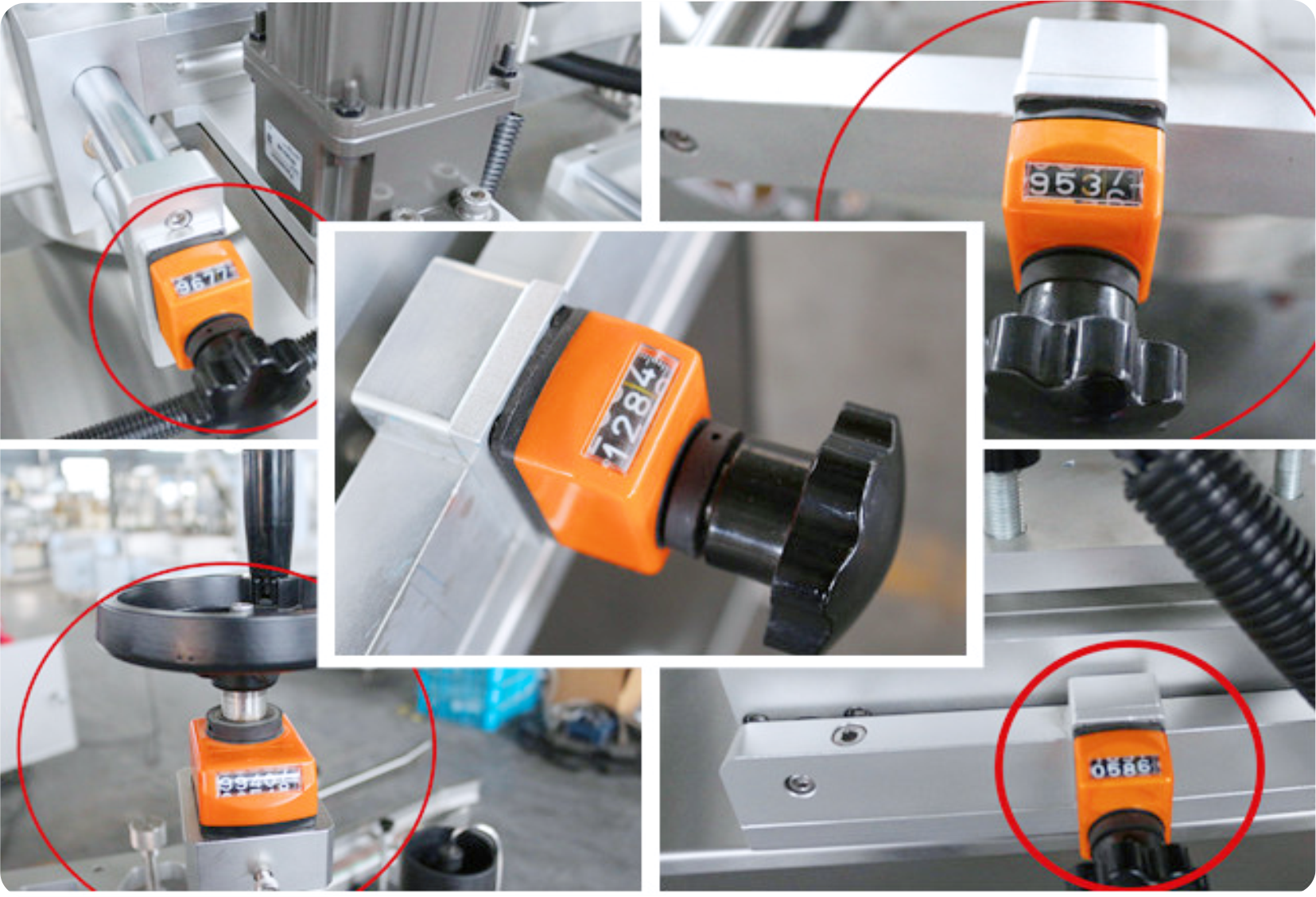

6.4 Digital adjusting handle, more intuitive adjustment, faster specification replacement.

Agro, fine chemical, fertilizer oil round bottle labeling machine

6.5 With memory storage program function, can store multiple sets of parameters and can be named for different programs. Replacement of different specifications or different production capacity, only need to adjust different parameters can be, do not have to adjust again to greatly improve work efficiency.

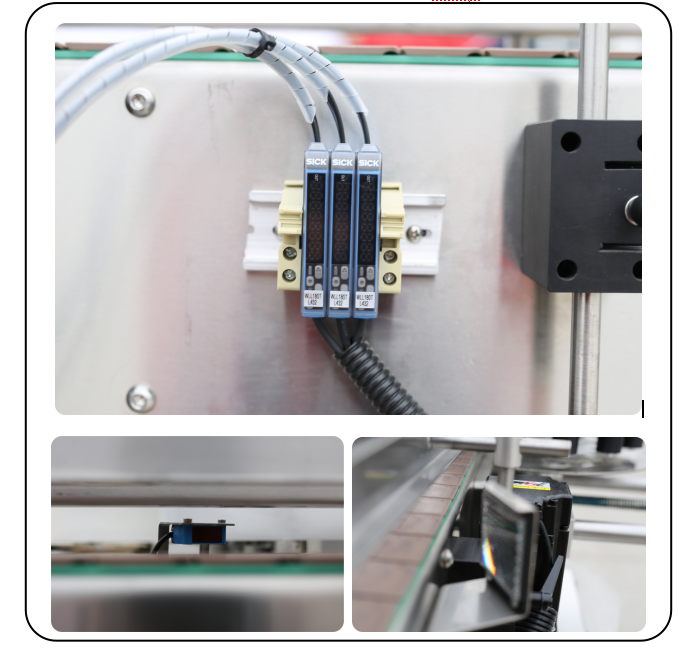

6.6 High-precision photoelectricity, all the detection photoelectricity are used high specification brand models, to ensure that the whole machine is stable and reliable.

Agro, fine chemical, fertilizer oil round bottle labeling machine
