JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
Specifications
Condition :
New
Application :
Plates
Plastic Processed :
PE
Screw Design :
Single-screw
Automatic Grade :
Fully Automatic
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
JWELL
Voltage :
380V 50HZ 3Phase(Customized)
Power(W) :
11-110KW
Dimension(L*W*H) :
20mx2.5mx2.2m
Weight :
8-20T
Certification :
CE ISO
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty :
1 Year, 1 Year
Usage :
Decoration
Color :
Customised
Port :
Shanghai
MOQ :
1 - 2 Sets
Price :
Negotiable
Description
Product Description

Product Application

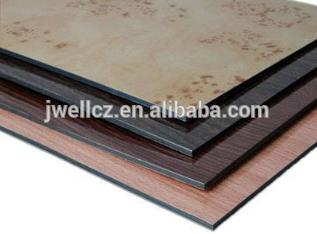

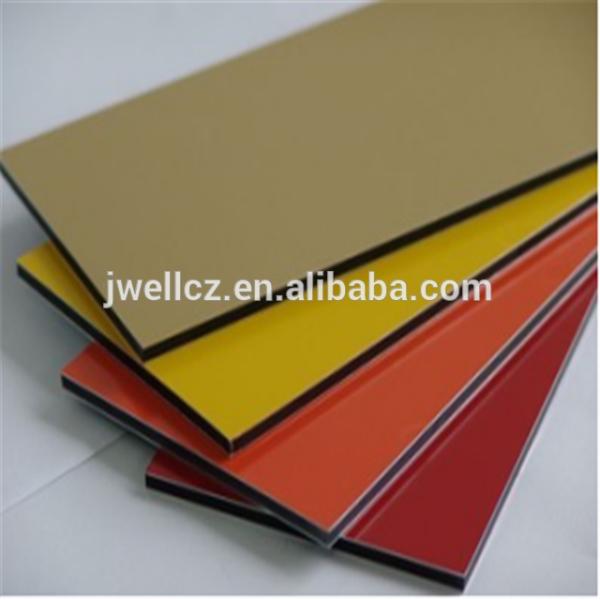

This kind of panel is for the internal and external wall decoration.The effective width of the product is from 1220mm to 2050mm,the thickness of the product is from 1.0mm to 5mm, the thickness of aluminum foil is from 0.026mm to 0.5mm.It adopts special screw design in order to produce qualified products using 100% recycle material.Its extrusion output is higher than other extruder.The equipments are exported to Indonesia,Russia,Vietnam and etc.

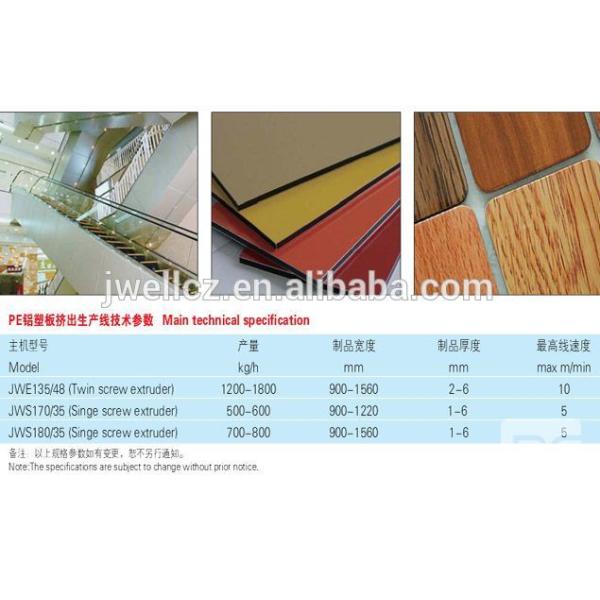

Model
Capacity(kg/h)
Product width(mm)
Product thickness(mm)
Max m/min
JWE95/44(Twin screw extruder)
800-1000
900-1560
1-6
8
JWE145/48(Twin screw extruder)
1200-1800
900-1560
2-6
10
JWS170/35(Single screw extruder)
500-600
900-1220
1-6
5
JWS180/35(Single screw extruder)
700-800
JWS170/35(Single screw extruder)
1-6
5
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line

Main Features

1) Vented extruder

2)Three-roller calender

3)Polymer film unroller unit

4) Aluminum foil unroller unit

5) Thermo shaping unit

6)Cooling fans

7)Protection film covering unit

8)Trimming unit

9)Straightener

10)Haul-off unit

11)Cutter

12)Transferring unit

Certifications
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
Detailed Images
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line

Machine Parts

Name: Three -roller calender

Brand: Jwell

Original: China


Main Features

Name:Screw
Brand: Jin Hai Luo
Original: China
Jin Hai Luo is the brand of Jwell's screw,it is one of the most famous and oldest screw brand in China.

JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
Our Service
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
JWELL PE Aluminum and Plastic Composite Panel Extrusion Line
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
