Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter
Specifications
MOQ :
negotiation
Price :
negotiation
Payment Terms :
20% T/T at PO, 80% before shipment
Supply Ability :
100T
Delivery Time :
4 weeks
Packaging Details :
Robust package
Brand Name :
SINOSTEEL
Model Number :
TP304 TP304L TP316 TP316L
Certification :
ISO
Place of Origin :
CHINA
Description :
Stainless steel welded pipe
Grade :
TP304 TP304L TP316 TP316L
Nominal Diameter :
6mm-300mm
Outerside Diameter :
10.29mm-323.85mm
Wall thickness :
SCH5S SCH10S SCH40S
Standard :
ASTM A312/A358/A778(B36.19M)
Length :
As per request
Application :
For industrial pipe
Description

TP304 TP304L TP316 TP316 stainless steel welded pipe SCH 5S SCH 10S SCH 40S

Advantage of stainless welded pipes

Due to product characteristics of high wall thickness uniformity, smooth and delicate surface,high temperature resistance, hight pressure resistance,corrosion resistance,long service life,energy saving and environmental protection and so on. The stainless steel welded pipe gradually tends to expand the scope of application and to enter may fields in which seamless tube could undertake in the past.

Products Range

Nominal Diameter Outside Diameter Norminal Wall Thickness(mm)
N.B NPS mm SCH 5S SCH 10S SCH 40S
6 1/8 10.29 　 1.24 1.73
8 1/4 13.72 1.24 1.65 2.24
10 3/8 17.15 1.24 1.65 2.31
15 1/2 21.34 1.65 2.11 2.77
20 3/4 26.67 1.65 2.11 2.87
25 1 33.4 1.65 2.77 3.38
32 1 1/4 42.16 1.65 2.77 3.56
40 1 1/2 48.26 1.65 2.77 3.68
50 2 60.33 1.65 2.77 3.91
65 2 1/2 73.03 2.11 3.05 5.16
80 3 88.9 2.11 3.05 5.49
90 3 1/2 101.6 2.11 3.05 5.74
100 4 114.3 2.11 3.05 6.02
15 5 141.3 2.77 3.4 6.55
150 6 168.28 2.77 3.4 7.11
200 8 219.08 2.77 3.76 8.18
250 10 273.05 3.4 4.19 9.27
300 12 323.85 3.96 4.57 9.53

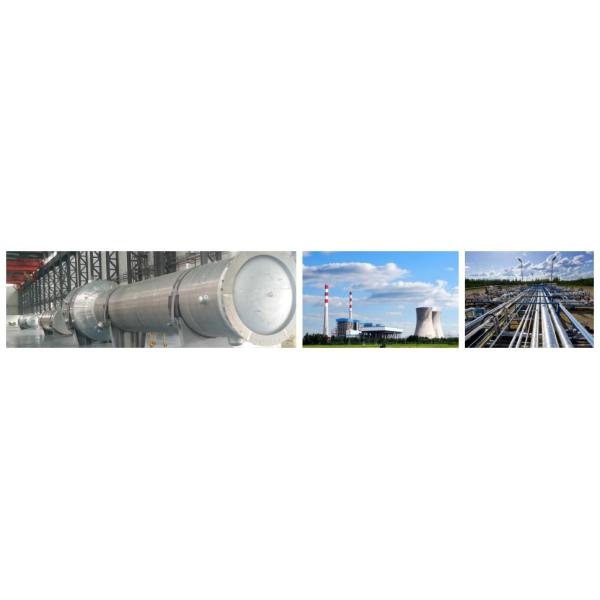

Main Application:

  • Petrochemical
  • Papermaking
  • Energy
  • Steam
  • Sewage Engineering
