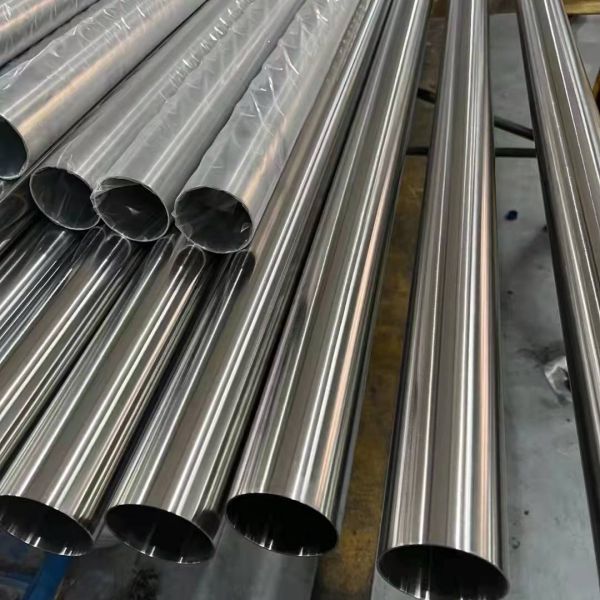

Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Specifications
Brand Name :
SINOSTEEL
Model Number :
SUS304 SUS304L SUS316 SUS316L
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
20% T/T at PO, 80% before shipment
Supply Ability :
100T
Delivery Time :
4 weeks
Packaging Details :
Robust package
Description :
Stainless steel welded pipe
Grade :
SUS304 SUS304L SUS316 SUS316L
Nominal Diameter :
6mm-300mm
Outerside Diameter :
10.50mm-318.50mm
Wall thickness :
SCH5S SCH10S SCH20S SCH40S
Standard :
JIS G3459
Length :
As per request
Application :
For industrial pipe
Description

JIS G3459 stainless steel welded pipe SUS304 SUS304L SUS316 SUS316L
Products Range

Nominal DiameterOutside DiameterNorminal Wall Thickness(mm)
N.BNPSmmSCH 5SSCH 10SSCH 40S
61/810.29　1.241.73
81/413.721.241.652.24
103/817.151.241.652.31
151/221.341.652.112.77
203/426.671.652.112.87
25133.41.652.773.38
321 1/442.161.652.773.56
401 1/248.261.652.773.68
50260.331.652.773.91
652 1/273.032.113.055.16
80388.92.113.055.49
903 1/2101.62.113.055.74
1004114.32.113.056.02
155141.32.773.46.55
1506168.282.773.47.11
2008219.082.773.768.18
25010273.053.44.199.27
30012323.853.964.579.53


CHEMICAL COMPOSITION

STANDARDGRADECHEMICAL COMPOSITION(%)
C maxSi maxMn maxP maxS maxNiCrMo
JISSUS3040.081.002.000.0400.0308.00-11.0018.00-20.00-
SUS304L0.031.002.000.0400.0308.00-13.0018.00-20.00-
SUS3160.081.002.000.0400.03010.00-14.0016.00-18.002.00-3.00
SUS316L0.081.002.000.0400.03012.00~16.0016.00~18.002.00-3.00



Mechanical Property

ASTMGradeYield StrengthTensile StrengthElongationHardness
KSi(Mpa)KSi(Mpa)%HRB
TP304≥515205≥35≤90
TP304L≥483170≥35≤90
TP316≥515205≥35≤90
TP316L≥483170≥35≤90



Main Application:
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
