Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
Specifications
Brand Name :
JUYE
Model Number :
304 304L 304H 316L 310S 321H
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
20% T/T at PO, 80% before shipment or by L/C
Supply Ability :
100T
Delivery Time :
3-6 weeks
Packaging Details :
wooden case
Description :
Stainless steel welded pipe
Grade :
304 304L 304H 316L 310S 321H
Nominal Diameter :
350mm-700mm
Outerside Diameter :
355.60mm-711.20mm
Wall thickness :
SCH5S SCH10S SCH40S
Standard :
ASTM A312/A359/A409
Length :
As per request
Application :
For industrial pipe
Description

Large Diameter Stainless Steel Welded Pipe ASTM A312/A359/A409


Products Range

Norminal Diameter (mm) Outside Diameter Norminal Wall Thickness
SCH 5S SCH 10S SCH 40S
N.B NPS mm mm mm mm
350 14" 355.6 3.96 4.78 11.13
400 16" 406.4 4.19 4.78 12.7
450 18" 457.2 4.19 4.78 14.27
500 20" 508 4.78 5.54 15.09
550 22" 558.8 4.78 5.54 15.87
600 24" 609.6 5.54 6.35 17.48
650 26" 660.4 5.54 7.92 17.48
700 28" 711.2 5.54 7.92 17.48

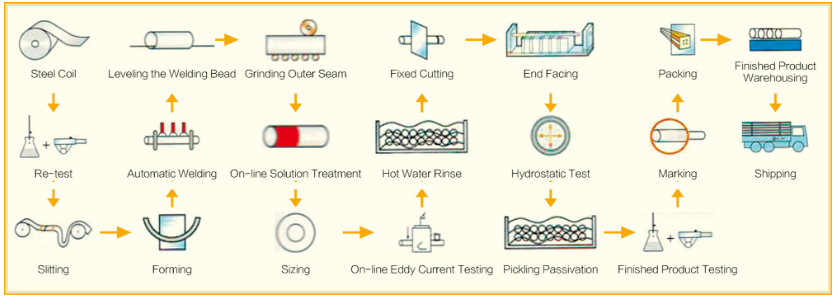

Stainless Steel Welded Pipe Automatic Production Process Line

Thickness: from 1.5mm to 10mm

Diameter: from 25mm to 711mm
Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter



Main Application:

Chemical Pipe

Marine Pipe

Papermaking

Energy

Steam

Sewage Engineering

Industrial Pipe

Anti-Corrosive Liquid Delivery Pipe

Products Show:

Liquid Delivery Large Diameter Stainless Steel Tube 350mm - 700mm Nominal Diameter
