Specifications
Brand Name :
JUTAI
Model Number :
RD24-4
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
100
Price :
4-6 USD according to order quantity
Payment Terms :
T/T,paypal,alipay,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
5-8 working dag
Packaging Details :
Carton
Technology :
Microwave Doppler Radar
Transmitter Frequency :
24.125GHz
Transmitter Radiated Power :
<20 dBm EIRP
Transmitter Power Density :
≤5mW/cm
Maximum Mounting Height :
3m
Tilt Angles :
0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting) :
4m(W)×2m(D)
Detection Mode :
Motion detection
Minimum Detectable Speed :
5cm/s (sensor axis)
Supply Voltage :
12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency :
50-60Hz
Power Consumption :
≤2W(VA)
Output Mode :
Switch tube output
Signal Output Time :
1.5s hold
Max Contact Voltage :
42V AC/DC
Max Contact Current :
1A (resistive)
Max Switching Power :
30W(DC) / 60VA(AC)
Working Temperature Range :
-20℃ ~ +55℃
Degree of Protection :
IP54
Norm Conformity :
R&TTE 1999/5/EC; EMC 89/336/EEC
Material :
ABS
Housing Color :
Black/Silver
Dimensions (W×H×D) :
120mm×80mm×50mm
Net Weight :
0.215kg
Cable Length :
2.2m
Description
Doppler Detector | Adjustable Tilt Angle | High Precision Motion Sensing
This high-performance Doppler Detector is engineered for professional motion sensing applications, highlighted by fully adjustable tilt angles and ultra-high precision motion detection that delivers unrivaled accuracy for automatic door systems, commercial access control and industrial automation setups. Built on advanced microwave Doppler technology operating at 24.125GHz, this detector redefines motion sensing precision by reliably identifying targets moving at a minimum speed of 5cm/s along the sensor axis, eliminating false triggers from minor vibrations, static objects or environmental disturbances—ensuring only intentional human or object motion initiates a response, critical for high-traffic commercial and industrial spaces where accuracy is non-negotiable. Its flexible tilt angle design offers 0°~90° vertical and -30°~+30° lateral adjustability, allowing full customization of the detection field’s position, depth and coverage range; whether mounted at the standard 2.2m height or the maximum 3m installation height, the adjustable angles let you fine-tune the sensor to perfectly match your specific setup, avoiding over-sensing of adjacent areas and ensuring the detection field aligns precisely with the target motion zone for glass doors, sliding doors, commercial entryways and more.
Designed for seamless integration and long-term reliability, this Doppler Detector features a rugged ABS construction with an IP54 dustproof and waterproof rating, operating stably in extreme temperatures from -20℃ to +55℃, making it suitable for both indoor semi-enclosed spaces and outdoor covered access points. The precision motion sensing core is paired with a high-gain planar antenna that delivers a focused, blind-spot-free detection field, and a gentle-adjust sensitivity potentiometer complements the tilt angle controls for further refinement of sensing range, adapting to narrow entryways or wide commercial door bays with equal ease. With low power consumption of ≤2W and broad 12-24V AC/DC wide voltage compatibility, it fits effortlessly into existing power setups without additional adapters, while the built-in LED status indicator provides intuitive real-time feedback—flashing on power-on for standby and solid lighting when motion is detected—simplifying installation, calibration and quick troubleshooting. Compliant with R&TTE 1999/5/EC and EMC 89/336/EEC international standards, this detector ensures interference-free operation even near neon lamps and electronic equipment, merging adjustable positioning, pin-point precision and durable performance into a single, versatile motion sensing solution for all professional access control and automation needs.
Doppler Detector | Adjustable Tilt Angle | High Precision Motion SensingDoppler Detector | Adjustable Tilt Angle | High Precision Motion Sensing
Product Highlights
  • 24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
  • Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
  • Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
  • Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
  • IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
  • Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
  • Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current
Doppler Detector | Adjustable Tilt Angle | High Precision Motion Sensing
Technical Specifications
Parameter Specification
Technology Microwave Doppler Radar
Transmitter Frequency 24.125GHz
Transmitter Radiated Power <20 dBm EIRP
Transmitter Power Density ≤5mW/cm
Maximum Mounting Height 3m
Tilt Angles 0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting) 4m(W)*2m(D)
Detection Mode Motion detection
Minimum Detectable Speed 5cm/s (sensor axis)
Supply Voltage 12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency 50-60Hz
Power Consumption ≤2W(VA)
Output Mode Switch tube output
Signal Output Time 1.5s hold
Max Contact Voltage 42V AC/DC
Max Contact Current 1A (resistive)
Max Switching Power 30W(DC) / 60VA(AC)
Working Temperature Range -20℃ ~ +55℃
Degree of Protection IP54
Norm Conformity R&TTE 1999/5/EC; EMC 89/336/EEC
Material ABS
Housing Color Black/Silver
Dimensions (W*H*D) 120mm*80mm*50mm
Net Weight 0.215kg
Cable Length 2.2m
Installation & Adjustment Guide
The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:
Mounting Requirements
Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.
Sensitivity Adjustment
Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).
Angle Adjustment
Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.
Status Check
LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).
Troubleshooting Guide
Fault Phenomenon Probable Causes Corrective Action
Door does not open & LED no light Sensor power off Check wiring connection and power supply validity
Door opens/closes constantly Sensor detects door vibration/movement; interference source in detection range Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close Low sensitivity; microwave module angle <45°; sensor blocked Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects
Application Scenarios
The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

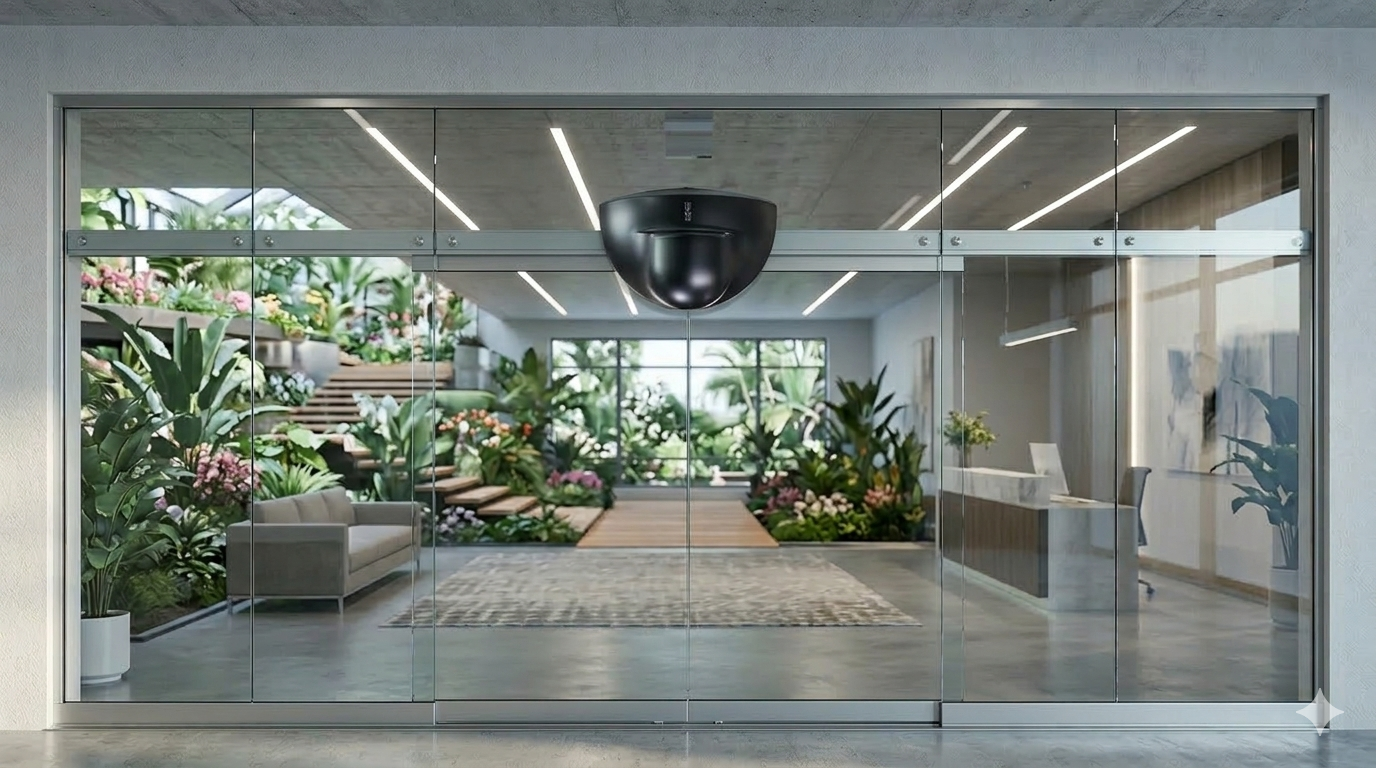

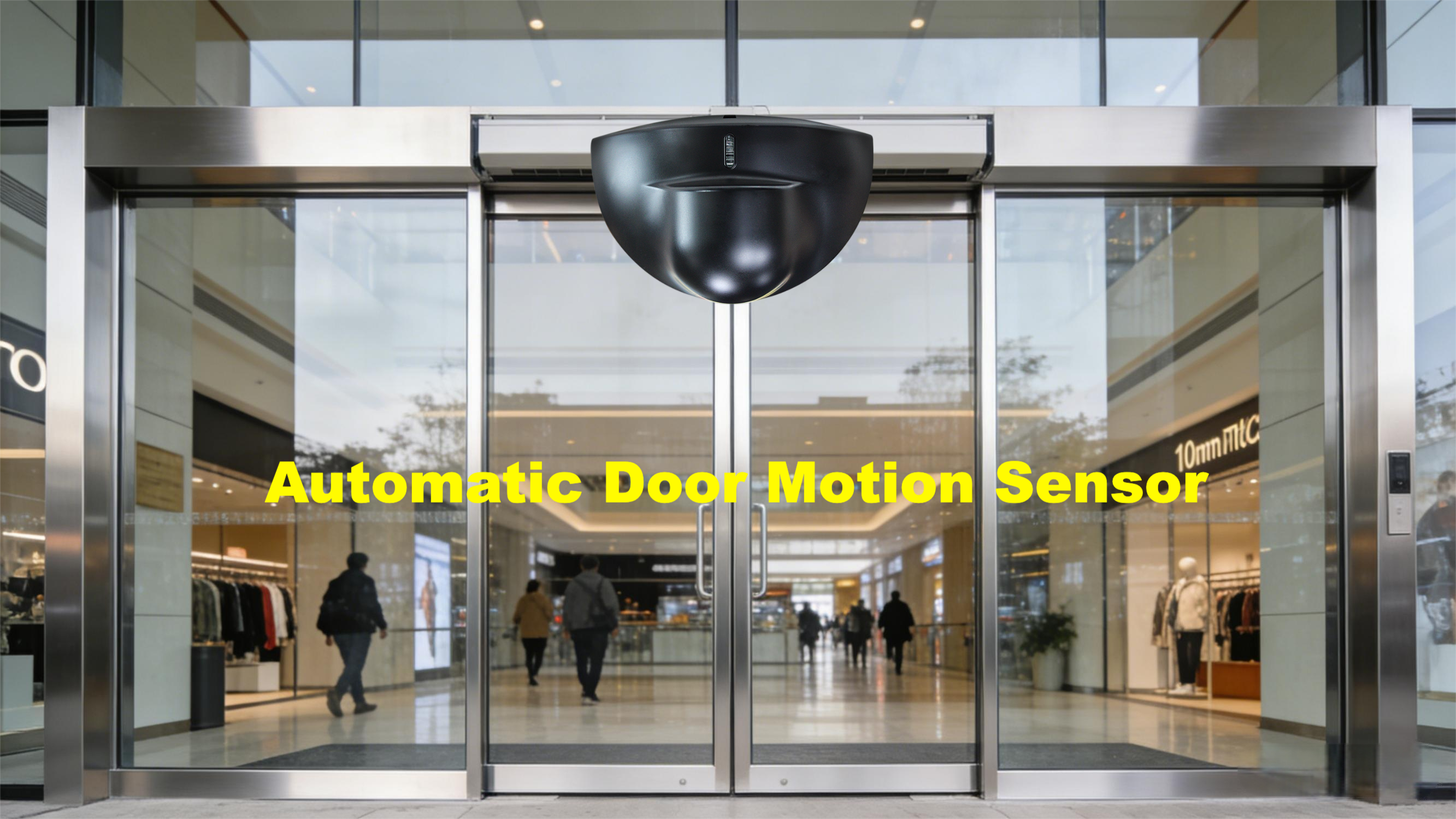

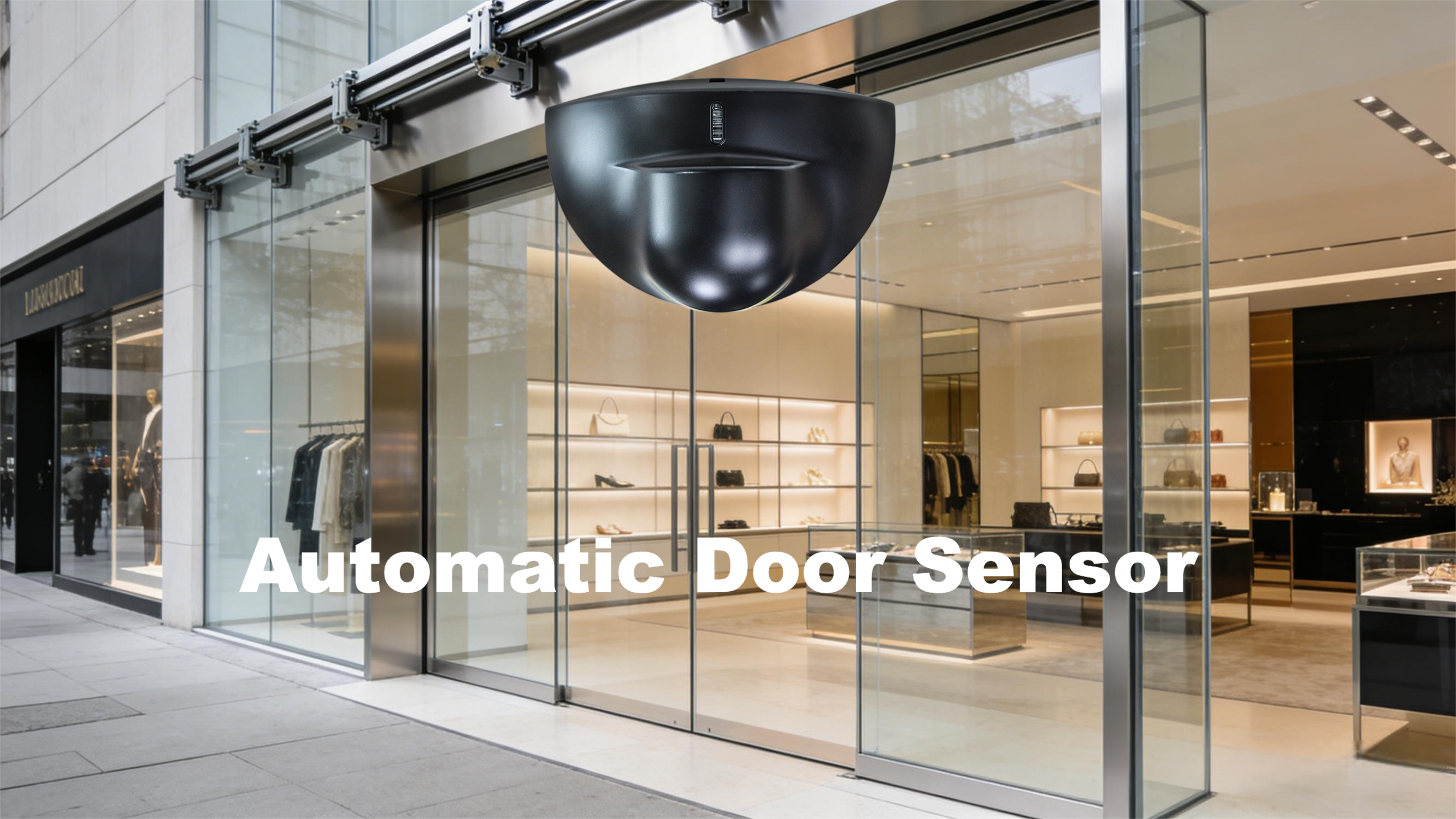

  • Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
  • Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
  • Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
  • Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)
Doppler Detector | Adjustable Tilt Angle | High Precision Motion Sensing Doppler Detector | Adjustable Tilt Angle | High Precision Motion Sensing
Core Technologies
Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
