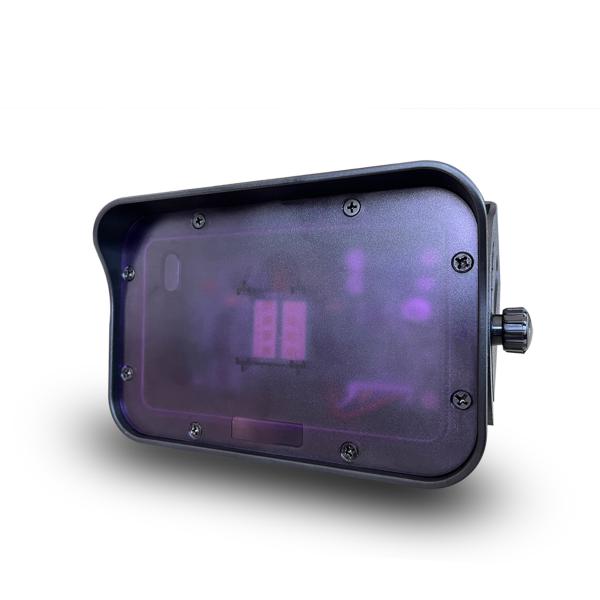

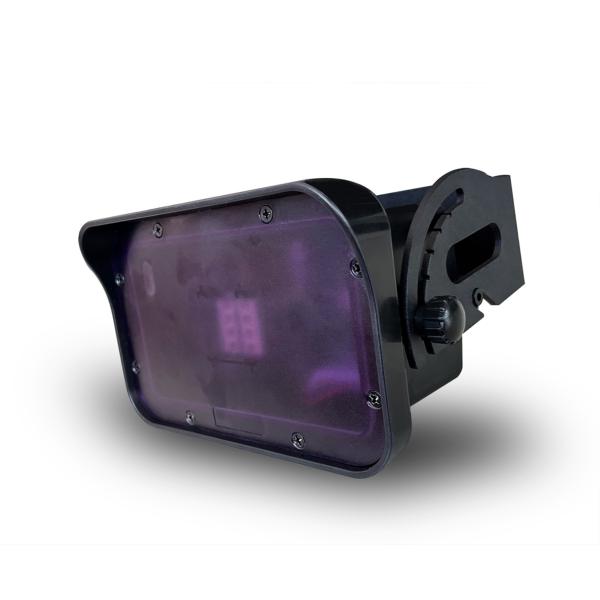

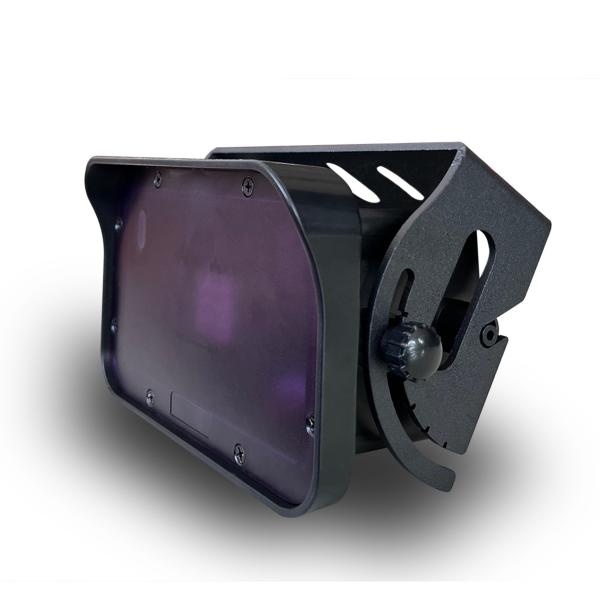

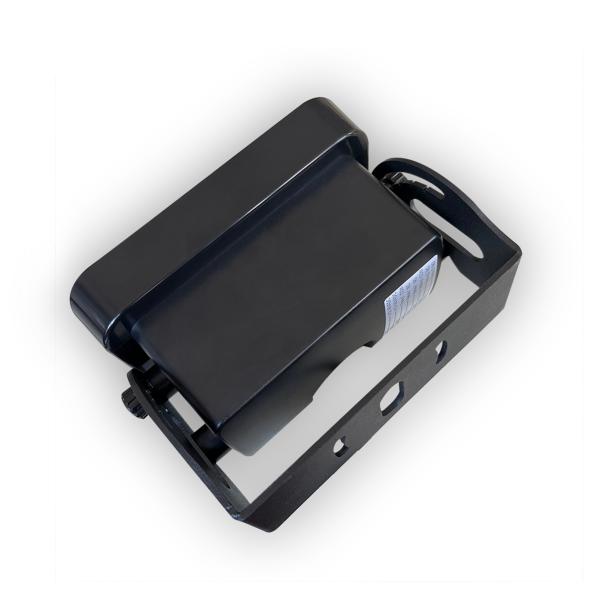

Detinguish Pedestrian And Vehicle Traffic Motion Detector For High Speed Door With Two Realy Output Car Detect Only

Specifications

Brand Name :

JUTAI

Model Number :

RVP42-9BW

Certification :

CE FCC

Place of Origin :

China

MOQ :

Support 1-10 Pcs for Sample

Price :

Negotiation

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, Paypal, Alipay

Supply Ability :

5000 Pcs per Month

Delivery Time :

5-8 working day

Packaging Details :

50 Pcs 1 Carton

Detection Height :

2.0m-9.0m

Detection Speed :

5cm/s ~ 25km/s

Detection Mode :

Motion

IP Level :

IP65

Operation Tepm :

-30℃~+60℃

Transmission Power :

<20dBm

Technology :

Microwave Doppler Radar

Operating Frequency :

24.150 GHZ

Operating voltage :

12-36VADC

Operating Current :

<100mA

Angle Adjustment :

0°-90° Longitudinal

Power frequency :

50Hz

Humidity :

0% to 95% no condensation

Relay Output :

24VDC@1A 125VAC@0.5A

Detection Area :

3*3.5m-6.5*8.5m (30° Angle)

Cable length :

7m / Customization

Net weight :

623 g

Gross weight :

766 g

Product Size :

164*111*94 mm

Package Size :

275*130*100 mm

HS Code :

9033000090

Service :

OEM

Description

Detinguish Pedestrian And Vehicle Traffic Motion Detector For High Speed Door With Two Realy Output Car Detect Only

1. Product-Specific Introduction

The Detinguish Pedestrian and Vehicle Traffic Motion Detector is a purpose-built sensing solution designed exclusively for high-speed door systems, with a core focus on eliminating false triggers and ensuring precise "car detect only" functionality. Equipped with advanced dual-relay outputs, the device delivers targeted control: one relay directly triggers the high-speed door to open/close when a vehicle is detected, while the second relay enables integration with external systems (e.g., access control panels, surveillance alarms) for real-time status feedback. Its proprietary motion analysis technology—combining infrared sensing and pattern recognition—accurately differentiates between vehicles (cars, trucks, forklifts) and pedestrians, even in high-traffic or variable-light environments (e.g., warehouses, loading docks). The detector’s rugged, dust- and water-resistant housing (IP65-rated) ensures durability in industrial settings, while its adjustable detection range (0.5–10 meters) and response time (<0.3 seconds) adapt to diverse high-speed door installation requirements, minimizing door wear and energy waste caused by unnecessary cycles.

2. Application Scenarios & Value

This motion detector is indispensable in environments where high-speed doors require vehicle-only activation to optimize efficiency, safety, and operational cost. Key applications include logistics warehouses and distribution centers, where it prevents high-speed doors from opening for pedestrians—reducing cold/hot air loss in temperature-controlled zones and speeding up vehicle throughput (e.g., delivery trucks, pallet jacks). In manufacturing facilities, it enhances workplace safety by ensuring doors only operate for authorized vehicles, avoiding accidental door closures near pedestrian walkways. It also excels in outdoor parking garages or commercial loading bays, where its weather-resistant design and anti-interference technology (immune to sunlight, rain, or passing debris) maintain reliable performance. By leveraging the dual-relay outputs, users can further integrate the detector with factory automation systems to log door usage, trigger maintenance alerts, or sync with security protocols—creating a streamlined, low-maintenance high-speed door ecosystem centered on vehicle-specific traffic management.
