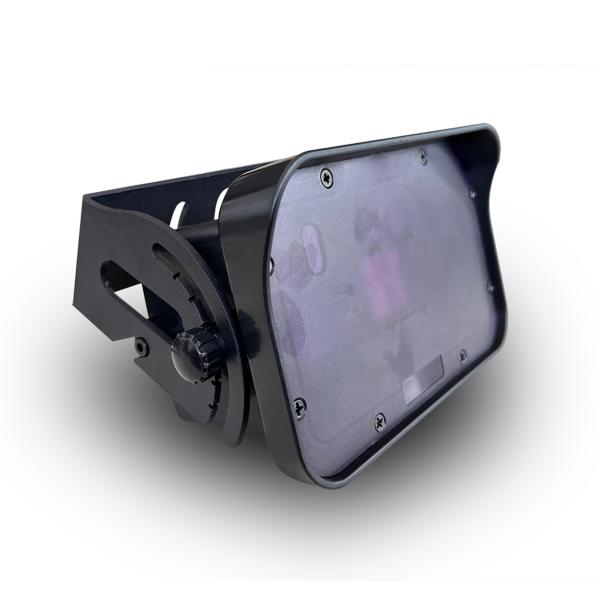

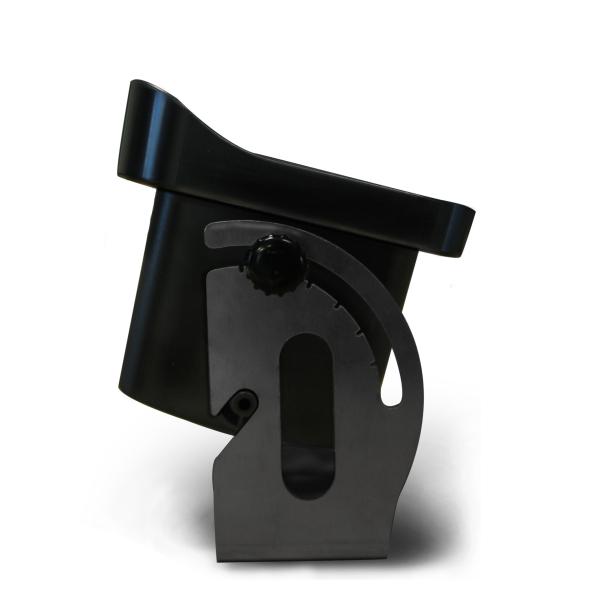

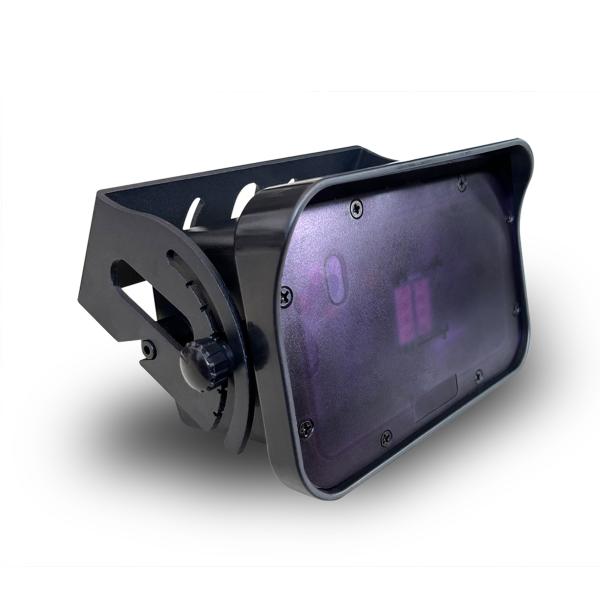

High Sensitive Microwave Motion Radar Detector for Cold storage door Suit for Cold environment Detinguish Pedestrian and Vehicle

• 1. Car Detect Only / People Detect Only

  • Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
  • Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.

• 2. Horizontal Filtration

  • Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
  • Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.

• 3. Longitudinal Orientation Recognition

  • Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
  • Adjustable Functions:
    • A: Detects only forward movement.
    • B: Detects only backward movement.
    • C: Detects both forward and backward movement.

• 4. Setting by Remote Control or Mobile App

  • Remote Control: Allows for quick and responsive setup.
  • Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.

• 5. Maximum Installation Height Up to 9m

  • Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
  • Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.

• 6. Adjustable Detection Area

  • Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
  • Levels of Adjustment: Available in small, medium, and large area settings.

• 7. Easy Integration into Different Systems

  • Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
  • System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.

​

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor
Android APP QR Code	iOS system App
Scan the QR Code to Get the Android System APP	Search "GL Control" in iOS App store to get the APP
