Description

Glow PMMA Granules for Anti-Slip Ceramic Pavement | 10yr Durability

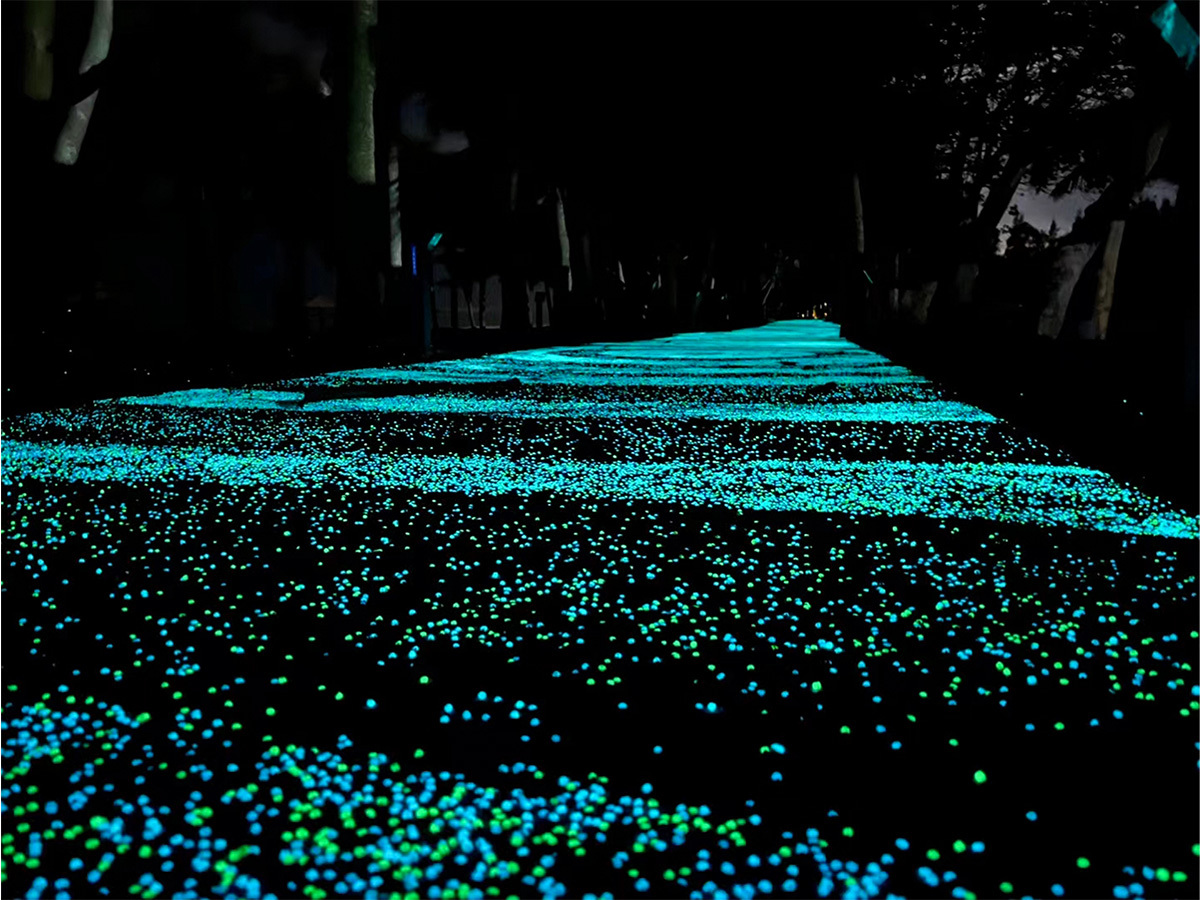

Designed for high-friction colored ceramic road surfaces, scenic promenades, and bike paths, our Ultra-Bright PMMA Diamond Glow Granules (CZ-PMMA-1) feature a high-transparency acrylic resin base blended with ≥35% rare-earth strontium aluminate luminous powder. By absorbing daylight for just 10–30 minutes, these self-luminous granules emit a vibrant glow for over 10 hours at night. Engineered in a 4–6mm multi-faceted diamond shape, they bond seamlessly with modified epoxy adhesives and ceramic aggregates, creating a durable, non-slip, weather-resistant "starry sky" pavement with an outdoor service life of up to 10 years.


Glow PMMA Granules for Anti-Slip Ceramic Pavement | 10yr DurabilityGlow PMMA Granules for Anti-Slip Ceramic Pavement | 10yr Durability


Key Specifications


Technical Parameter Specification / Value
Product Name Ultra-Bright PMMA Diamond Photoluminescent Granules
Product Model CZ-PMMA-GLOW-46
Material System High-Transparency PMMA Resin + Rare-Earth Aluminate Photoluminescent Powder

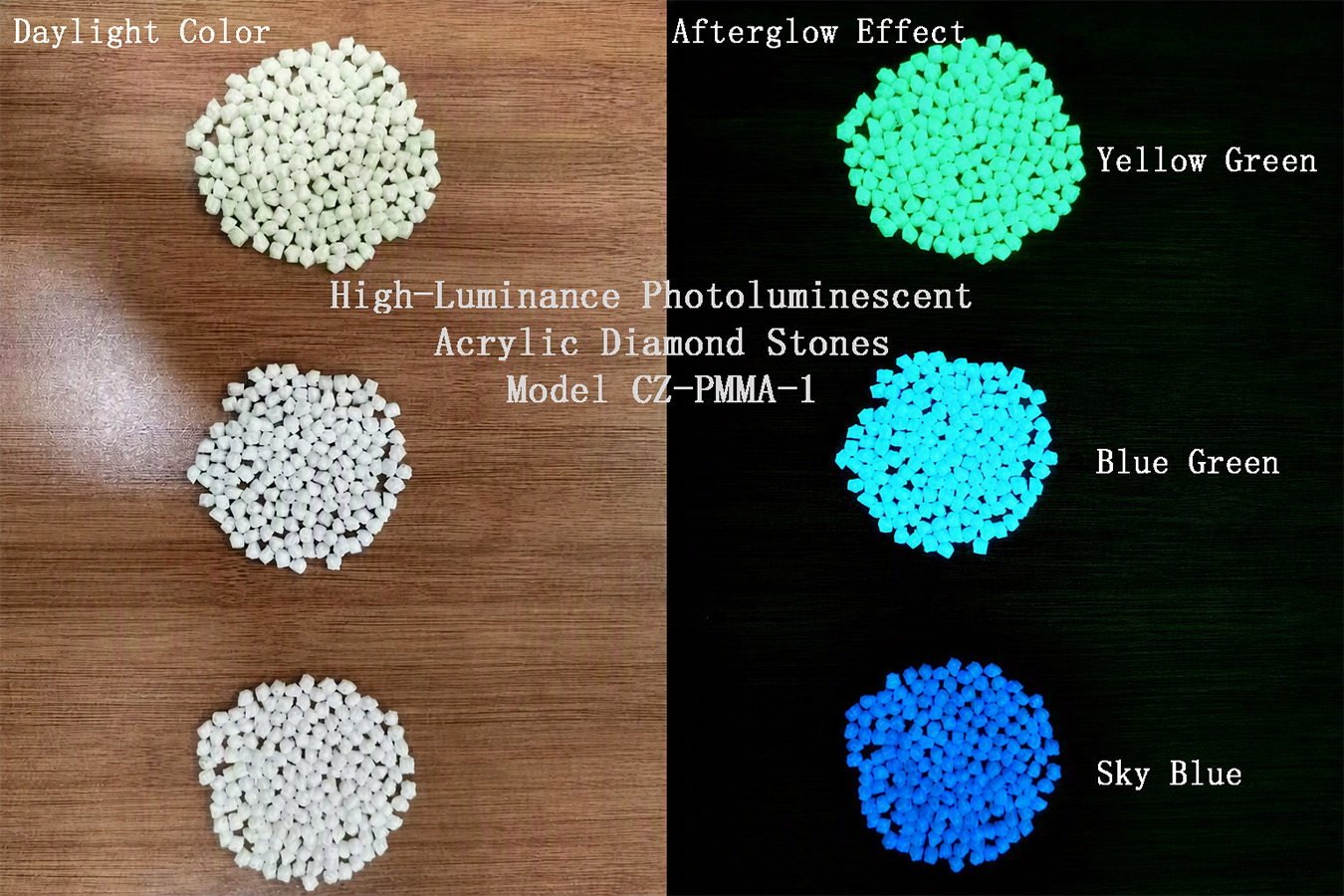

Glow Colors Yellow-Green / Blue-Green / Sky Blue
Particle Size 4–6 mm, Uniform Multi-Faceted Diamond Shape
Photoluminescent Powder Content ≥35% Strontium Aluminate High-Glow Powder
Density 1.97 g/cm³
Afterglow Brightness >600 mcd/m² after 10 min excitation; >90 mcd/m² after 60 min excitation
Photoluminescence Testing Standard DIN 67510-1 (D65 Standard Light Source, 1000 lx, 10 min excitation)
Outdoor Service Life Up to 10 Years Outdoors
Compatible Base Substrates Asphalt / Cement Concrete Surfaces


Applications

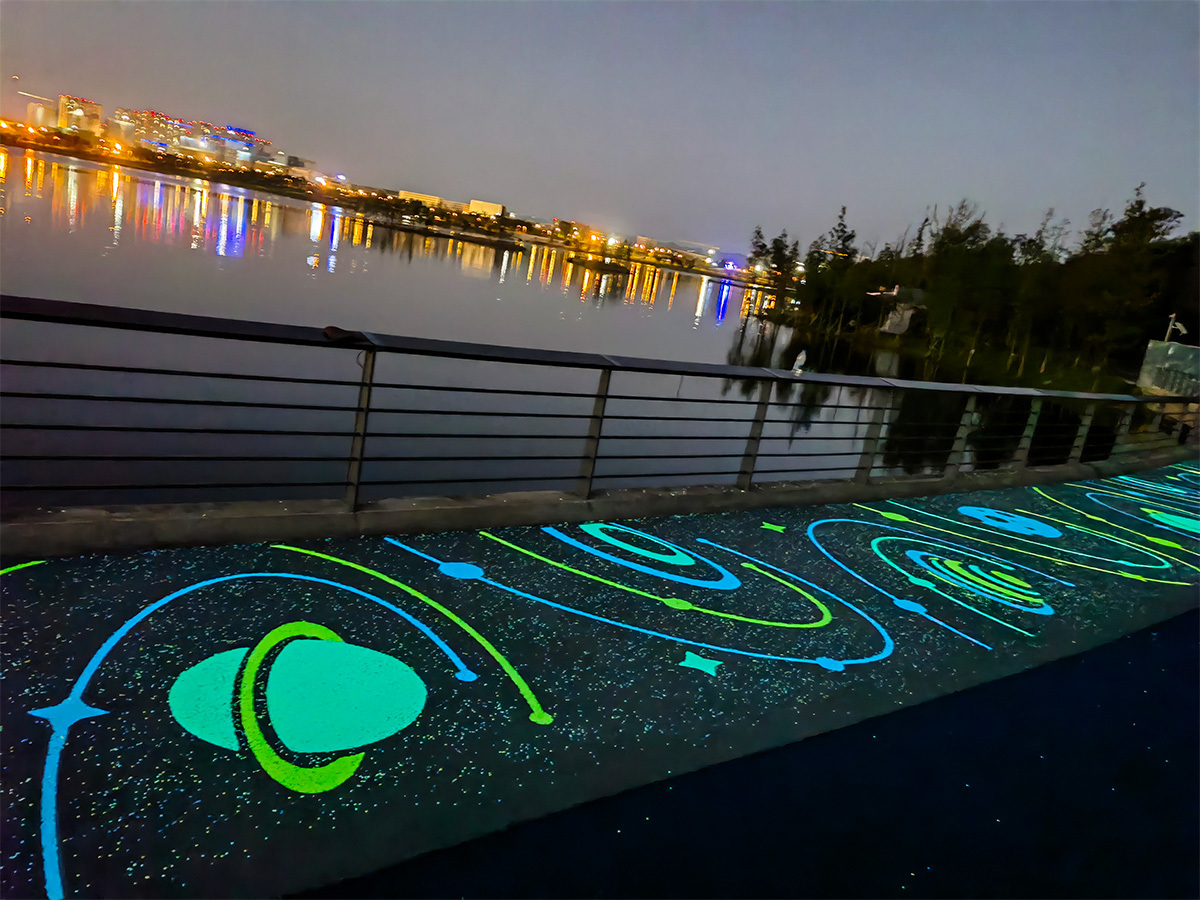

  • Scenic Promenades & Bike Paths: Creates eye-catching, self-illuminated "starry sky" walkways and cycle lanes for parks and resorts.
  • Residential Pedestrian Lanes & Plazas: Delivers eco-friendly night guidance and safety illumination without electricity.

  • Bus Lanes & BRT Platforms: Combines high-friction anti-skid properties with night visibility for public transit safety.

  • Highway Tunnels, Curves & Speed Humps: Serves as high-visibility hazard warning surfacing for critical road sections.

Product Advantages

≥35% High Luminous Powder Formula

Achieves superior brightness with initial afterglow >600 mcd/m² (10 min excitation per DIN 67510-1) and over 10 hours of glow.

Diamond Shape for High Bonding Strength

Multi-faceted 4–6mm structure ensures maximum mechanical interlock with epoxy binders, preventing granule stripping or shedding under traffic.

10-Year Outdoor Weatherability

Premium PMMA resin guarantees exceptional UV resistance, anti-yellowing, and durability against weather extremes.

Versatile Substrate Compatibility

Easy broadcast installation over both asphalt and concrete substrates.


Color Chart
