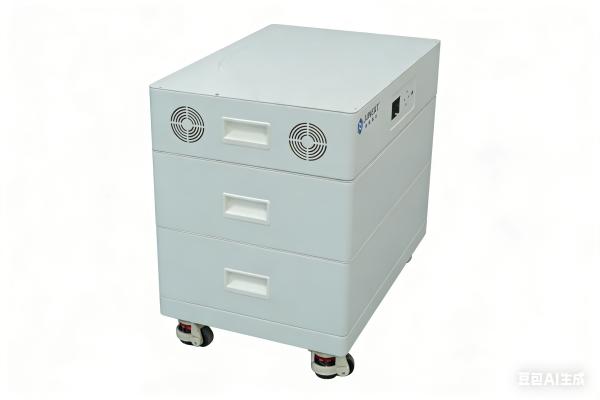

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
Specifications
Brand Name :
Junext
Model Number :
JN-LFP48100-C
Certification :
ISO、UN38.3、CE、MSDS
Place of Origin :
shenzhen
MOQ :
10pcs
Payment Terms :
T/T,L/C,D/A,D/P
Supply Ability :
200pcs/day
Delivery Time :
30-60 day
Battery Chemistry :
LiFePO4
Certifications :
CE, UL, TUV, IEC
Warranty :
5 Years
Voltage :
51.2V
Cycle Life :
6000 Cycles
Dimensions :
650*500*270mm
Communication Protocol :
CAN, RS485, RS232
Capacity :
5.12KWh
Description
JUNEXT 51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
Technical Parameters:
lithium battery price



Battery Energy Storage 1Modules 2Modules 3Modules 4Modules
Battery Chemistry LiFePO4
Default Volage(V) 51.2V
Cell Capacity(Ah) 100Ah 200Ah 300Ah 400Ah
Capacity 5.12KWh 10.24KWh 15.36KWh 20.48KWh
Max.Charging Voltagy(V) 58.4V
Discharge Cut-off(V) 43.2V
Standard Charging Current(A) 50A
Standard Discharging Current(A) 50A
Max.Operation Current(A) 100A

Dimensions(W*D*H)

600*450*445.5

600*450*627

600*450*808.5

600*450*990

Package Dimension(W*D*H)

 650*500*270

Net Weight

Gross Weight

50KG

52KG

100KG

104KG

150KG

156KG

200KG

208KG

General Parameters
Scalability

Max.15 systems in paeallel
Storage Conditions

10℃~45℃(0℃~45℃ Recommended)up to 90%RH,non-condensing Inital SOC:30%
Operating Temperature

Chare:0℃~45℃ Discharge:-10℃~45℃
Cooling Natural Cooling
Cycle Life 6000 Cycles
Communication CAN,RS485,RS232
System Characteristic
Battery Compliances IEC62619:2017,EN IEC6100-6
Transportation Certification UN38.3,MSDS,CE
Installation Method Floor Mounting
IP Rating IP30
Product Description:

This Floor-Standing Lithium Battery features an IP30 IP rating, providing excellent dust and moisture protection to maintain optimal performance and durability in tough environmental conditions. It excels at storing excess solar energy and acting as emergency backup power, with a 5.12KWh nominal energy capacity that fulfills household energy requirements, helping reduce grid dependency and unlock full solar panel potential. Built with LiFePO4 battery cells, it ensures high safety, stability and efficiency, along with a long cycle life, rapid charging and high energy density—making it a top pick for residential solar storage. It supports CAN, RS485, RS232 communication, enabling smooth connection with inverters and monitoring devices for real-time energy storage system oversight and optimization. The built-in natural cooling system controls battery cell temperature, guaranteeing steady operation and a longer battery life even under high energy demand. As a versatile floor mounted home/solar lithium battery, it’s a robust, high-performance choice for homeowners aiming to boost energy independence and maximize solar utilization.

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System



51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System
Customization:

Product Customization Services for the Floor-Standing Lithium Battery:
Brand Name: Junext
Place of Origin: Shenzhen
Certification: ISO, UN38.3, CE, MSDS
Minimum Order Quantity: Low MOQ
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 200pcs/day
Transportation Certification: UN38.3, MSDS, CE
Battery Compliances: IEC62619:2017, ENIEC61000-6
Default Voltage: 51.2V
Storage Conditions: -10°C to 45°C
Cycle Life: 6000 Cycles
Keywords: Floor Mounted Home Lithium Battery, Home energy storage on wheels, Floor Mounted Solar Battery

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System

51.2V 48V 200Ah LiFePO4 Power Wall Battery 5kWh 10kWh Home Solar Energy Storage System

FAQ:

Q: What is the brand name of the Floor-Standing Lithium Battery?
A: The brand name is Junext.
Q: Where is the Floor-Standing Lithium Battery manufactured?
A: The product is manufactured in Shenzhen.
Q: What certifications does the Floor-Standing Lithium Battery have?
A: The product is certified with ISO, UN38.3, CE, and MSDS.
Q: What is the minimum order quantity for the Floor-Standing Lithium Battery?
A: The product has a low MOQ.
Q: What are the payment terms for purchasing the Floor-Standing Lithium Battery?
A: The payment terms are T/T.
