Specifications
Brand Name :
JUNEXT
Model Number :
JN-E-SUN 6.2KVA/48V
Certification :
ISO、UN38.3、CE、MSDS
Place of Origin :
shenzhen
MOQ :
Low MOQ
Payment Terms :
T/T
Supply Ability :
200pcs/day
Description

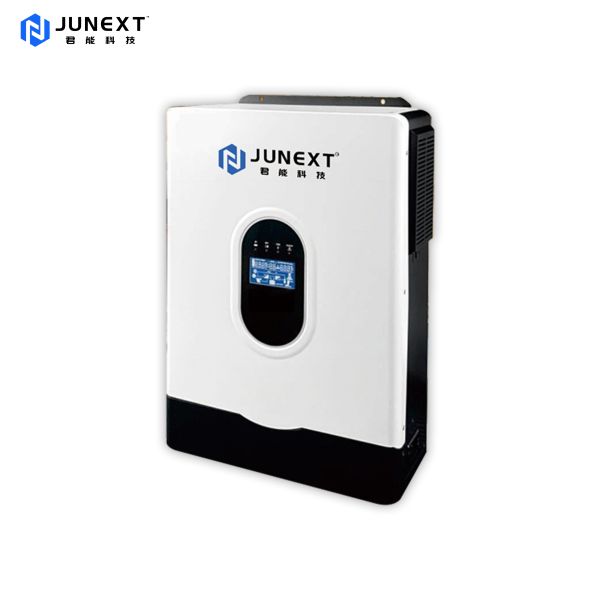

5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price


5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price
Pure sine wave Hybrid on&offinverter an feed to grid
Optional local WiFi and GPRS for i0s and AndroidInverteroperation with or without battery
Build-in Lithium battery automatic activation
Build-in 120A MPPT solar charge controller
High PVinput voltage Rang (90~450VDC)
Dual output L1/L2
Optional BMS suitable for 4.2K,6.2K,10.2K,including BMS
User-friendly LcD operation
Enhanced charging power
Batteryindependent design
5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price
Product Parameters

New Model

 JN-E-SUN 6.2KVA/48V
Max.PV Power 6500W
Rated Power 6200VA
Max.Charge Current 100A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type

Compatible With GEL,AGM,Lithium battery

Grid Input
Voltage

230VAC
Selectable Voltage Range

170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range

50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)

98%

Ac Output
AC Voltage Regulation(Batt.Mode)

230 VAC 士 5%
Surge Power

12400VA
Efficiency (Peak)

90%-94%
Transfer Time

10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform

Pure sine mave

Dual Loads Acoutput
Full Load

6200VA
Maximum Main Load

6200VA
Maximum Second Load(Battery Mode)

2100W
Main Load Cut Off Voltage

44VCD
Main Load Retum Voltage

54VCD

Solar Charger&Ac Charger
Solar ChargerType

MPPT
Maximum PV Array Power

6500W
Max. input Current

27A
MPPT Range @ Operating Voltage

90-450VDC
Maximum PV Aray Open Circuit Vollage

500 VDC
Maximum Solar Charge Current

100A
Maximum Ac Charge Curent

100A
Maximum Charge Curent

100A
Physical
Packing Dimension,D*W*H(mm)

543*394*204
Net Weight (kg)

10.5
Communication interface

USBIRS232/WIFI/GPRS

Operating Environment
Humidity

5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature

-10℃ to 50℃
Storage Temperature

-10℃ to 50℃

5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price


5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price

5kw Off Grid Solar Hybrid Inverter 48vdc 7000w Single Phase 9000w 5kv Solar Panel Inverter 8000w 6000w 48v 5kw Price





    • Q: What’s the efficiency of 4.5KVA 24V inverter?

      A: It has high efficiency (85%-92%), with 90% efficiency at 50%-70% load—saving battery power and extending runtime.

    • Q: How long can it power a 500W refrigerator with a 24V 100Ah battery?

      A: About 4-5 hours (calculated as: 24V×100Ah×80% efficiency ÷ 500W = 3.84h), depending on battery type and load.

    • Q: Can it be used in RVs or camping?

      A: Yes. It’s compact and suitable for RVs, camping, and outdoor activities—powering lights, TVs, and small kitchen appliances.

    • Q: Does it have an eco-mode for low load?

      A: Yes. Eco-mode reduces standby power (to <1W) when load is <10%, saving battery energy during light use.

    • Q: Can it charge batteries while powering loads?

      A: No. It only converts DC to AC. To charge batteries, pair it with a solar charge controller or AC charger.

    • Q: What’s the standby power consumption?

      A: Standby power is <5W in normal mode and <1W in eco-mode, minimizing battery drain when not in heavy use.

    • Q: Can it be used with a generator?

      A: Yes. Connect the generator to a battery charger (24V) to charge batteries, then use the inverter to power AC devices—ideal for backup.

    • Q: How to optimize the inverter’s efficiency?

      A: Keep the load at 50%-70% of rated power, use proper cable sizes, and install the inverter in a well-ventilated area.
