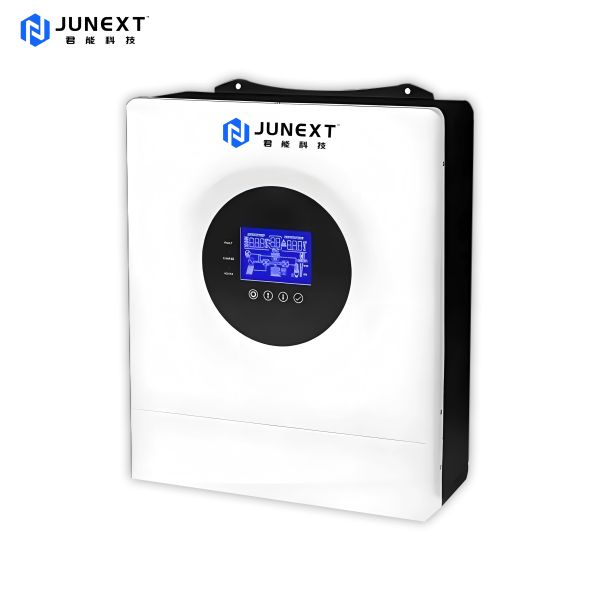

3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
Specifications
Brand Name :
JUNEXT
Model Number :
JN-E-SUN 6.2KVA/48V
Certification :
ISO、UN38.3、CE、MSDS
Place of Origin :
shenzhen
MOQ :
Low MOQ
Payment Terms :
T/T
Supply Ability :
200pcs/day
Description

3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter


3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
Pure sine wave Hybrid on&offinverter an feed to grid
Optional local WiFi and GPRS for i0s and AndroidInverteroperation with or without battery
Build-in Lithium battery automatic activation
Build-in 120A MPPT solar charge controller
High PVinput voltage Rang (90~450VDC)
Dual output L1/L2
Optional BMS suitable for 4.2K,6.2K,10.2K,including BMS
User-friendly LcD operation
Enhanced charging power
Batteryindependent design
3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter
Product Parameters

New Model

 JN-E-SUN 6.2KVA/48V
Max.PV Power 6500W
Rated Power 6200VA
Max.Charge Current 100A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type

Compatible With GEL,AGM,Lithium battery

Grid Input
Voltage

230VAC
Selectable Voltage Range

170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range

50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)

98%

Ac Output
AC Voltage Regulation(Batt.Mode)

230 VAC 士 5%
Surge Power

12400VA
Efficiency (Peak)

90%-94%
Transfer Time

10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform

Pure sine mave

Dual Loads Acoutput
Full Load

6200VA
Maximum Main Load

6200VA
Maximum Second Load(Battery Mode)

2100W
Main Load Cut Off Voltage

44VCD
Main Load Retum Voltage

54VCD

Solar Charger&Ac Charger
Solar ChargerType

MPPT
Maximum PV Array Power

6500W
Max. input Current

27A
MPPT Range @ Operating Voltage

90-450VDC
Maximum PV Aray Open Circuit Vollage

500 VDC
Maximum Solar Charge Current

100A
Maximum Ac Charge Curent

100A
Maximum Charge Curent

100A
Physical
Packing Dimension,D*W*H(mm)

543*394*204
Net Weight (kg)

10.5
Communication interface

USBIRS232/WIFI/GPRS

Operating Environment
Humidity

5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature

-10℃ to 50℃
Storage Temperature

-10℃ to 50℃

3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter


3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter

3KW/5KW/6KW 48V Single Phase Hybrid Solar Inverter 5000W 6000W Off-Grid Solar Power Inverter





  • Q: What is a 4.5KVA 24V inverter and what does it do?

    A: It is a power conversion device that converts 24V DC power (from batteries) to AC power (110V/220V). It powers home appliances, RV devices, and off-grid equipment.

  • Q: What’s the maximum load 4.5KVA 24V inverter can handle?

    A: It supports continuous load up to 4.5KVA (about 3600W for 80% efficiency) and peak load up to 9KVA, fitting most home and small commercial devices.

  • Q: Is it suitable for off-grid or on-grid use?

    A: It’s mainly for off-grid use (like solar systems, battery backup) but can also work with grid-tie setups when paired with a transfer switch.

  • Q: Can it work with 24V lead-acid or lithium batteries?

    A: Yes. It’s compatible with all 24V battery types (lead-acid, lithium-ion, LiFePO4) with no need for extra adapters.

  • Q: Does it have pure sine wave output?

    A: Yes. It provides pure sine wave AC power, which is safe for sensitive devices like laptops, medical equipment, and air conditioners.

  • Q: What’s the input voltage range of 4.5KVA 24V inverter?

    A: It has a wide input range of 20V-30V DC, adapting to battery voltage fluctuations during charging and discharging.

  • Q: Can it power high-power devices like refrigerators or water pumps?

    A: Yes. It handles high-power loads (up to 3600W continuous) easily, making it ideal for refrigerators, small water pumps, and heaters.

  • Q: Does it have a display to show working status?

    A: Yes. It has an LED/LCD display showing input voltage, output voltage, load percentage, and battery level for easy monitoring.
