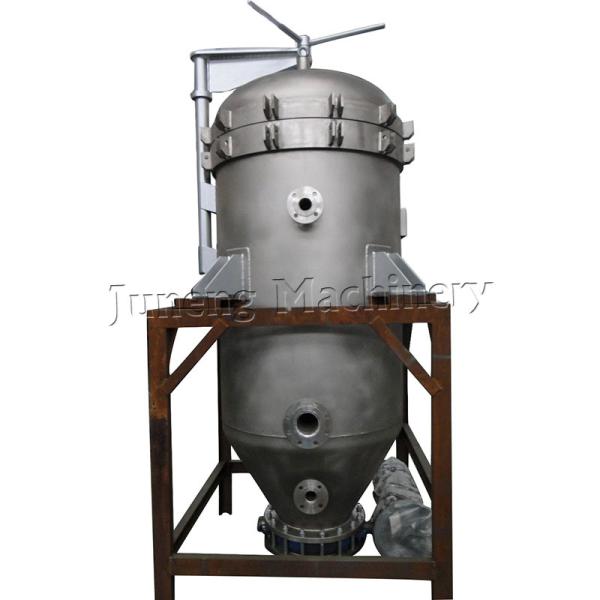

Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Specifications
Description
NYB High Efficiency Closed Plate Type Liquid Oil Filter Machine
Product Specifications
Attribute Value
Weight (kg) 200
Warranty 1 Year
Function Filtration
Structure Plate filter
Filtration area 2m²
Material Stainless steel 304
Capacity 0.4-0.6 TPH
Surface treatment Polishing
Design Temperature 100-150°C
Design Pressure 0.6Mpa
Inlet size DN25
Outlet size DN150
Applicable Industries Food & Beverage Factory
Core Components PLC, Bearing, motor, Gear
Product Overview
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
NYB Series Vertical Leaf Filter
The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, installed on the central liquid collection pipe for convenient dismantling and cleaning.
Key Advantages
  • Unique structure with compact volume
  • High filter efficiency with fine filtration
  • No material wastage or consumption of filter paper/cloth
  • Minimal filter aid consumption
  • Easy maintenance and cleaning
  • Low operational cost
Detailed Components
Stainless Steel Filter Leaf
Filter leaves installed at the center liquid pipe are constructed with multilayer stainless steel for extended service life and easy cleaning/replacement.
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Complete Filtration System
A complete filter system includes the NYB type filter, mixing cylinder, transfer pump, piping, valves, electric control system, and auxiliary equipment. The filtration technique is determined by the filter medium.
Packaging & Shipping
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Transport Method Ocean shipping, sea transportation
Container Options 20'GP, 40'HC or LCL shipping
Packaging Details Standard wooden box packaging (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight container spaces or special customer requirements.
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Manufacturer Information
Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer specializing in the research, development, production, and sale of filtration and separation equipment including filters, separators, decanter centrifuges, and pumps. With four factories located in Nanjing and Yixing City, we maintain strict quality control and offer comprehensive customer service.
Our company holds CE certificates, ASME U certificate, and ISO 9001 certification. Our products are distributed throughout China and exported to numerous countries including USA, Germany, Korea, Japan, and others. We welcome OEM and ODM orders.
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Quality Assurance
  • Factory visit/audit available prior to purchase
  • Material inspection during manufacturing process
  • Compliance with technical requirements
Certifications
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Customer Support
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing available
  • Factory visits welcome
After-Sales Service
  • Installation and operation training
  • Overseas engineer support available
  • Rapid response to operational issues
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Frequently Asked Questions
Stainless Steel 304 Vertical Pressure Leaf Filter 0.6Mpa 2m2 Filtration Area
Q: How can we visit your factory?
A: International visitors can fly to Shanghai airport where we provide pickup service. Domestic visitors can travel to Wuxi station by air or train for pickup.
Q: How do you ensure product quality?
A: With over 30 years of experience, we implement strict quality control using advanced machinery, licensed operators, and international brand components. Multiple tests and inspections are conducted throughout production.
Q: What payment methods do you accept?
A: We primarily accept T/T and L/C at sight, along with other common payment methods.
Q: What is your warranty period?
A: We offer a standard 12-month warranty after commissioning.
