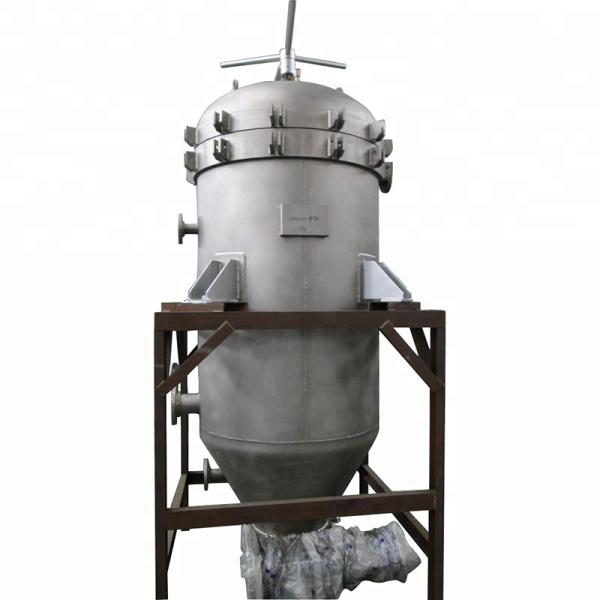

Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Specifications
Description
New Station Oil Bleaching Vertical Leaf Pressure Filter Press
Product Specifications
Condition New
Automatic Grade Semi-automatic
Voltage Customized
Power 1500W
Weight 1000 kg
Dimensions (L×W×H) 1610×1250×2500 mm
Warranty 1 Year
After-sales Service Field maintenance and repair service
Function Oil Filter
Structure Leaf Filter
Capacity 2-4T/H
Filtration Area 12m²
Material Carbon steel, Stainless steel
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Inlet Size DN50
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Product Description
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve minimizes worker labor intensity
  • Can completely replace plate and frame filters - a revolutionary device in the filter industry
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2 Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2 Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Technical Specifications
Model Filtration Area (㎡) Filter Cake Volume (L) Treatment Capacity (Oil) Work Pressure (Mpa) Work Temperature (℃) Machine Volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB-12 12 240 2-4 0.1-0.4 ≤150 1000

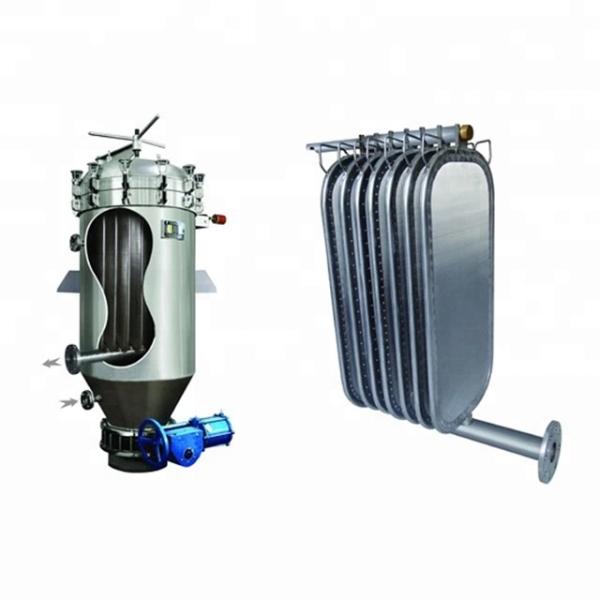

Filter Leaf Specifications (NYB-12 Example)
  • 11 filter leaves for 12 sqm filtration area
  • Leaves made of 1.8mm 316L material with heavy box channel
  • Topside reinforcement with one vibrator fork per leaf (SS 316 material)
  • Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Butterfly Valve (NYB-12 Example)
  • DN 400 butterfly valve WAFER TYPE for dry cake discharge
  • High quality butterfly valve with NH-S seat material (up to 150°C)
  • Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Our Services
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory visit arrangements
After-Sales Service
  • Installation training and machine operation training
  • Engineers available for overseas service
  • Prompt response within 2 hours for reported issues
Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2 Semi-Automatic Vertical Leaf Oil Filter Press 2-4T/H 12m2
Packaging Details
Package Type Dimensions Weight
Standard Wooden Box 123×456×789 mm 1.2 T
For European exports, wooden boxes are fumigated. Alternative packaging available for special container requirements.
