Specifications
Description

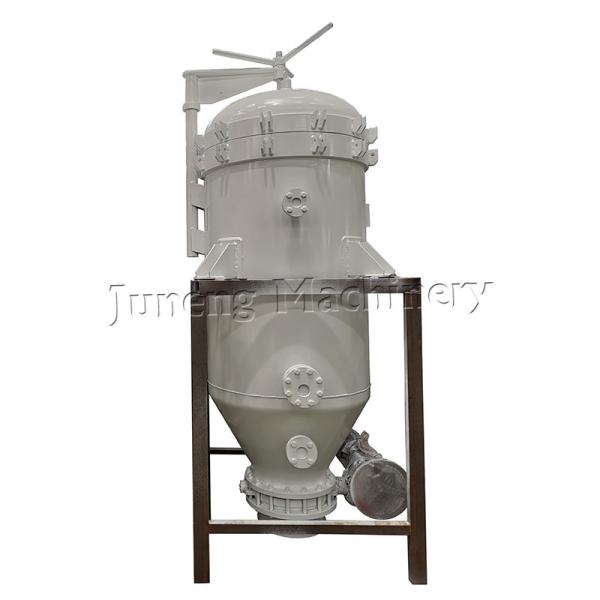

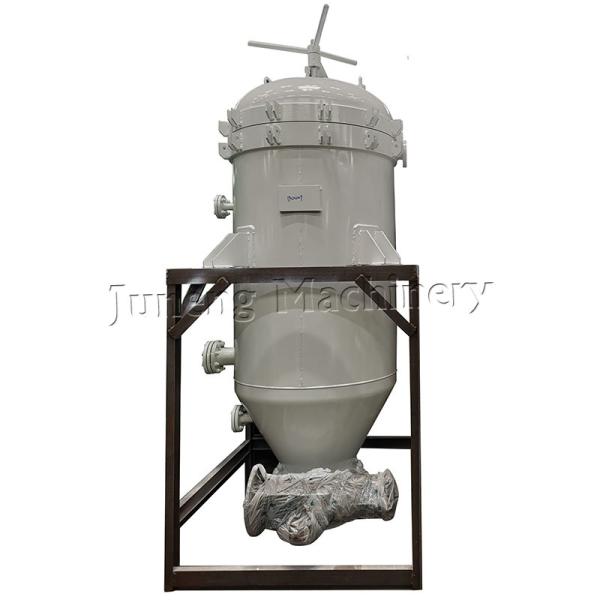

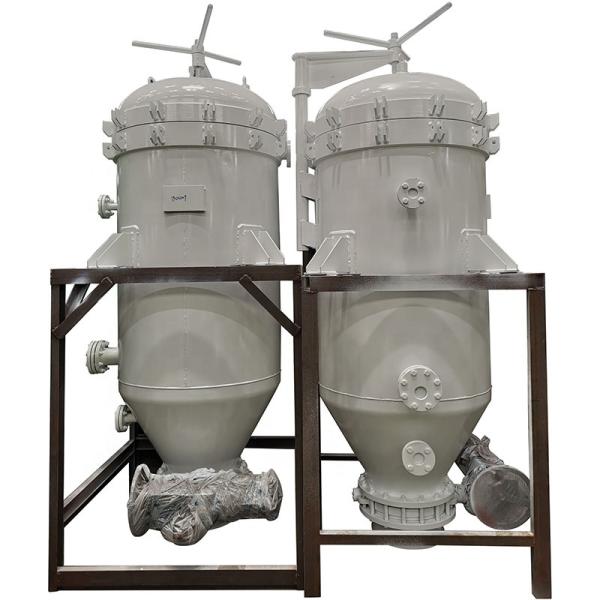

Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Product Specifications
Attribute Value
Condition New
Weight (kg) 1300
Warranty 1 Year
After-sales Service Field maintenance and repair service
Name Pressure leaf filter
Structure Vertical leaf Filter
Material Stainless Steel 304
Capacity 4-6T/H for oil
Filtration area 20m²
Color Green or blue
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Core Components Pressure vessel
Product Description

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Technical Specifications
Model Filtration area (m²) Filter cake volume (L) Treatment Capacity (Oil) Treatment Capacity (Resin) Treatment Capacity (Beverage) Work Pressure (Mpa) Max Pressure (Mpa) Work temperature (℃) Machine volume (L)
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 250
NYB-20 20 400 4-6 9-15 12-17 1680
SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve reduces worker labor intensity
  • Can completely replace plate and frame filters with activated carbon filtering capability
SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Filter Leaf Specifications (Example: NYB-12)
  • 11 filter leaves provide 12 m² filtration area
  • Leaves made with heavy box channel 1.8 mm material 316L
  • Topside of leaf with reinforcement and vibrator fork (SS 316)
  • Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 and Viton rubber)
SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Butterfly Valve Specifications (Example: NYB-12)
  • DN 400 butterfly valve WAFER TYPE for dry cake discharge
  • 1st quality butterfly valve with NH-S seat material (up to 150°C)
  • Includes pneumatic actuator double acting type with 5.5 Bar air supply
Certifications
ASME U (Certificate No.: 38793)
ISO 9001:2015 (Certificate No.: CN1299-QC)
ISO 14001:2015 (Certificate No.: CN1299-EC)
ISO 45001:2018 (Certificate No.: CN1299-SC)
BV and CE Certified
SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Our Service
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
After-Sales Service
  • Installation and operation training
  • Engineers available for overseas service
  • Prompt response within 2 hours for domestic issues
About Juneng Group

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we are dedicated to strict quality control and customer service.

We hold CE certificates, ASME U certificate and ISO 9001 certificate, with products exported worldwide including USA, Germany, Korea, Japan, and more. We welcome OEM and ODM orders.

SS304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4-6T/H Capacity
Quality Assurance
  • Factory visit/audit available prior to purchase
  • Material inspection during manufacturing and prior to shipment
  • Strict compliance to technical requirements
Our Development Philosophy
  • Continuous innovation and self-improvement
  • 5% of sales revenue allocated to research
  • 8% of workforce dedicated to development
  • Numerous patents and high-quality new products
