Specifications
Description
NYB Vertical Pressure Stainless Steel Plate Filter for Oil Industry
Product Specifications
Attribute Value
Condition New
Max. Capacity 500L/H
Warranty 1 Year
Particle Size 2
Flow Rate 2gpm (7.6lpm)
Maximum pressure 120psi
After-sales Service Field maintenance and repair service
Function Oil Filter
Structure Leaf Filter
Capacity 2-4T/H
Filtration area 12m²
Material Carbon steel, Stainless steel
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Inlet size DN50
Overflow port size DN40
Product Description
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

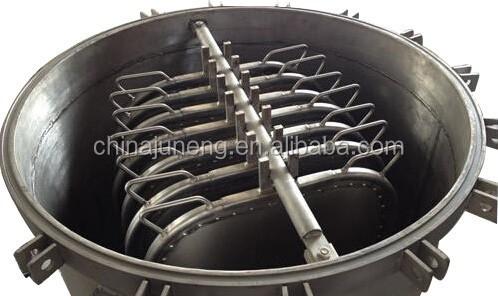

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (℃) Machine volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.5 ≤150 250
NYB-7 7 105 1-1.8 0.1-0.4 ≤150 420
NYB-10 10 150 1.6-3 0.1-0.4 ≤150 800
NYB-12 12 240 2-4 0.1-0.4 ≤150 1000
NYB-15 15 300 3-5 0.1-0.4 ≤150 1300
NYB-20 20 400 4-6 0.1-0.4 ≤150 1680
NYB-25 25 500 5-7 0.1-0.4 ≤150 1900
NYB-30 30 600 6-8 0.1-0.4 ≤150 2300
NYB-36 36 720 7-9 0.1-0.4 ≤150 2650
NYB-40 40 800 8-11 0.1-0.4 ≤150 2900
NYB-45 45 900 9-13 0.1-0.4 ≤150 3200
NYB-52 52 1040 10-15 0.1-0.4 ≤150 3800
NYB-60 60 1200 11-17 0.1-0.4 ≤150 4500
NYB-70 70 1400 12-19 0.1-0.4 ≤150 5800
NYB-80 80 1600 13-21 0.1-0.4 ≤150 7200
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve minimizes worker labor intensity
  • Can completely replace plate and frame filters with activated carbon or bleaching filtering capability
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Filter Leaf Specifications (Example: NYB-12)
  • 11 filter leaves provide 12 sqm filtration area
  • Leaves surrounded by heavy box channel 1.8 mm material 316L
  • Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
  • Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Butterfly Valve Specifications (Example: NYB-12)
  • DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom
  • 1st quality butterfly valve with NH-S seat material (up to 150°C high temp)
  • Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Related Products
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Vertical Filter Whole System
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
SZL Paper Filter
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
SYB Rotary Drum Filter
Certifications
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Our Service
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
After-Sales Service
  • Installation and operation training
  • Overseas engineer service available
  • Professional after-sales service team
We provide free equipment installation guidance and operator training until mastery is achieved (domestic China). For any issues, we respond within 2 hours and dispatch engineers until resolution (domestic China). Overseas service costs are customer responsibility.
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Packing & Delivery
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Packaging Detail Specification
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Tight container shipments use PE film or custom packaging per customer request.
Exhibitions
We regularly participate in major industry exhibitions including Canton Fair.
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Our Company: Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps with four factories in Nanjing and Yixing City.
We maintain strict quality control and customer service standards, with CE, ASME U and ISO 9001 certifications. Our products sell throughout China and export to USA, Germany, Korea, Japan, and other countries.
We welcome OEM and ODM orders, with engineering support available for custom applications.
NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
Jiangsu Juneng Machinery North Branch
Located in Zhoutie Town, Yixing City, our north branch specializes in various filters including vertical/horizontal pressure leaf filters, self-cleaning filters, and bag filters.
Quality Assurance
  • Factory audit available prior to purchase
  • Material inspection during manufacturing and before shipment
  • Strict compliance with technical requirements
Development Philosophy
  • Continuous innovation and self-improvement
  • 5% of sales revenue allocated to research
  • 8% of workforce dedicated to development
  • Multiple patents and high-quality new products
