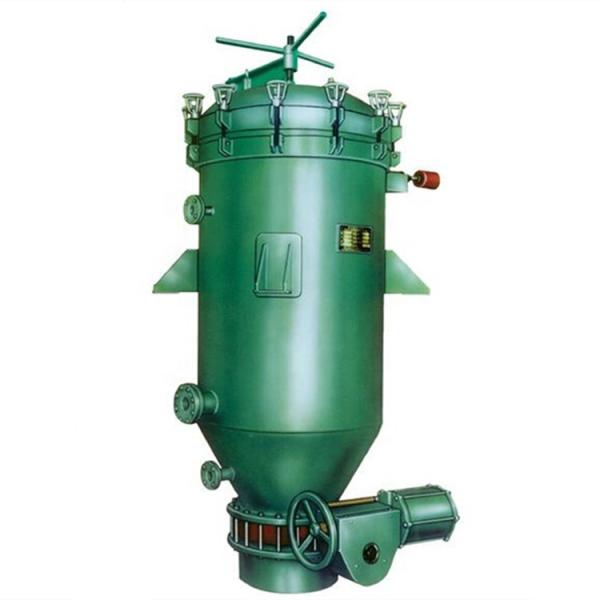

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Specifications
Description
New Oil Bleaching Pressure Leaf Filter Press Machine
Product Specifications
Attribute Value
Condition New
Automatic Grade Semi-automatic
Voltage Customized
Power 1500W
Weight 1000 kg
Dimensions (L×W×H) 1610×1250×2500 mm
Warranty 1 Year
Function Oil Filter
Structure Leaf Filter
Capacity 2-4T/H
Filtration Area 12m²
Material Carbon steel, Stainless steel
Color Green or blue
Design Temperature 100-150℃
Design Pressure 0.6Mpa
Inlet Size DN50
Outlet Size DN50
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Core Components PLC, motor
Product Description
The NYB high efficiency plate hermetic filter is a high-performance, energy-saving filtration system designed for hermetic operation. This advanced equipment finds applications across multiple industries including chemical processing, petroleum, painting, food production, and pharmaceuticals.
Product Application
The filter consists of several key components: shell, filtration plate, cover, and automatic dump device. The filtration plate is constructed with multiple layers of stainless steel filtration materials, mounted on a central liquid collection pipe for easy disassembly and cleaning.
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Technical Specifications
Model Filtration Area (m²) Filter Cake Volume (L) Treatment Capacity Work Pressure (Mpa) Work Temperature (℃) Machine Volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB-7 7 105 1-1.8 0.1-0.4 ≤150 420
NYB-10 10 150 1.6-3 0.5 ≤150 800
NYB-12 12 240 2-4 0.5 ≤150 1000
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Main Features
  • Eliminates need for cloth and filter paper, significantly reducing filtration costs
  • Fully enclosed operation prevents material loss and ensures environmental protection
  • Vibration residue discharge system reduces labor intensity and enables continuous operation
  • Pneumatic valve residue discharge minimizes worker effort
  • Capable of activated carbon (carclazyte) filtering or bleaching filtering, replacing traditional plate and frame filters
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Filter Leaf Specifications (NYB-12 Model)
Configuration: 11 filter leaves provide 12m² filtration area
Construction: Heavy box channel 1.8mm material 316L
Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal
Butterfly Valve Specifications (NYB-12 Model)
Type: DN 400 wafer type for dry cake discharge
Materials: NH-S seat (up to 150°C), SS 316 construction
Actuation: Pneumatic actuator (double acting, 5.5 Bar air supply)
Packaging & Delivery
Packaging Specification Details
Size 123 (L) × 456 (W) × 789 (D) cm
Weight 1.2 Tons
Packaging Method Standard wooden box packaging. European exports include fumigation. Alternative packaging available for special requirements.
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Our Services
Pre-Sales Support: Technical consultation, sample testing, factory visits
After-Sales Support: Installation training, operation training, overseas engineer support
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Certifications
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
About Our Company
Juneng Machinery (China) Co., Ltd., established in 2006, specializes in the research, development, and production of filtration and separation equipment. With four factories located in Nanjing and Yixing City, we maintain strict quality control and offer comprehensive customer support.
Our certifications include CE, ASME U, and ISO 9001. Our products serve domestic markets and export to numerous countries including USA, Germany, Korea, and Japan. We welcome OEM and ODM orders, with engineering support available for custom applications.
