Specifications
Description
Oil Bleaching Pressure Leaf Filter Machine
Attribute Value
Condition New
Weight (kg) 1000
Warranty 1 Year
Product Application

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

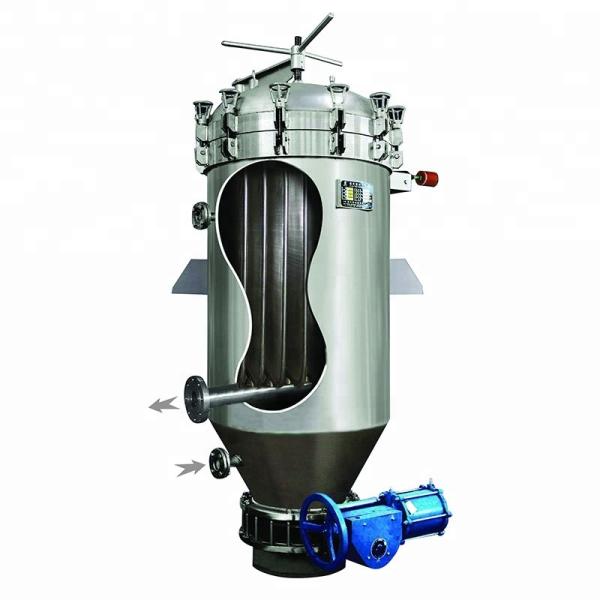

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (℃) Machine volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve minimizes worker labor intensity
  • Capable of activated carbon (carclazyte) filtering or bleaching filtering, completely replacing plate and frame filters
Detailed Images
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
Related Products
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
91.8% Response Rate
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
91.8% Response Rate
Certifications
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
Our Service
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
After-Sales Service
  • Installation and operation training
  • Engineers available for overseas machinery service
Packing & Delivery
NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume

Size: 123 (L) * 456 (W) * 789 (D)

Weight: 1.2 T

The normal package is wooden box. If exporting to European countries, the wooden box will be fumigated. For tight containers, we use PE film for packing or accommodate special customer requests.

Exhibitions We Attended

We have attended various exhibitions including Canton Fair.

NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume NYB Vertical Pressure Leaf Filter 10㎡ Filtration Area 150L Cake Volume
