Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Specifications
Description
Stainless Steel Filter Screen Plate for Vertical Pressure Filter
Product Specifications
Attribute Value
Weight (kg) 200
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components Filter mesh
Usage Liquid Filter
Type Perforated Metal Mesh
Material Stainless steel
Hole Shape Diamond
Filter Rating More than 90%
Thickness 1.88 mm
Length According to filter model
Width According to filter model
Function Filter plate for Oil Filter
Structure Drainage mesh and vibrator fork
Filter Precision 220 mesh
Filtration Area 20m²
Material of Structure Stainless steel 304
Material of Filter Surface Mesh Stainless steel 316L
Pressure Filter Mesh Plate

The filtration plate is constructed from multiple layers of stainless steel filtration materials, offering excellent resistance against acid, alkali, heat, and corrosion. These plates are widely used in:

  • Oil processing
  • Chemical applications
  • Food and pharmaceutical industries
  • Sorting and screening of solid, liquid, and gas in mining, metallurgy, aerospace, and machine manufacturing

All meshes can be custom-cut to requested sizes.

Available Materials

304, 316, 304L, 316L stainless steel and special alloys

Weaving Patterns

Plain weave, twill weave, dutch weave

Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter

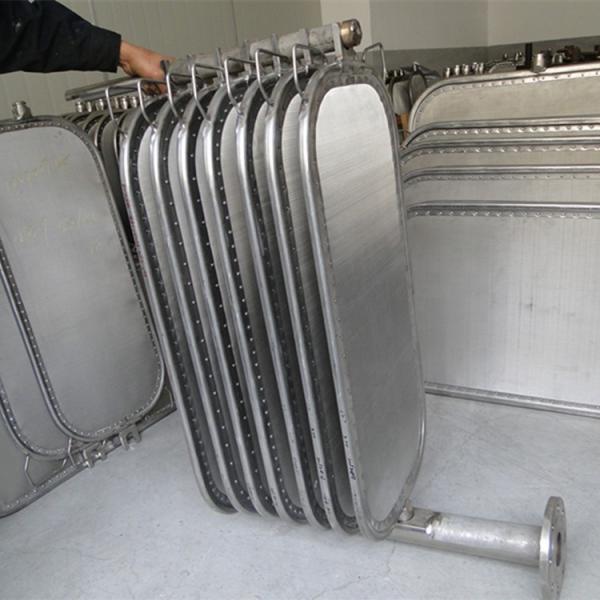

Filter Leafs - The Heart of the Filter

Quality filtration performance begins with premium filter leafs. The leaf closure can be welded, bolted, or riveted according to requirements.

Our filter leafs feature a bolted type design that allows for easy remeshing on-site. We provide remeshing services for each filter plate when suitable.

Filter Plate Configurations

3 Layer Filter Plates:

  • Support: 1 layer mesh 4 × 4
  • Filtration: 2 layers media 24 × 110

5 Layer Filter Plates:

  • Support: 1 layer mesh 4 × 4
  • Drainage: 2 layer mesh 8 × 8
  • Filtration: 2 layers media 24 × 110
Certifications
Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
About Juneng Group

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer specializing in the research, development, production, sale, and service of filters, separators, decanter centrifuges, and pumps. With four factories located in Nanjing and Yixing City, we maintain convenient transportation access.

Committed to strict quality control and exceptional customer service, our experienced team is always available to discuss your requirements and ensure complete satisfaction. We hold CE certificates, ASME U certificate, and ISO 9001 certification.

Our products are distributed throughout China and exported to countries including USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, and Vietnam. We welcome OEM and ODM orders.

Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
Quality Assurance
  • Factory visit/audit required prior to purchase
  • Material inspection during manufacturing and prior to shipment
  • Strict compliance with technical requirements
Our Development Philosophy
  • Continuous innovation and self-improvement
  • 5% of sales revenue allocated to research
  • 8% of workforce dedicated to development
  • Numerous patents and high-quality new products
