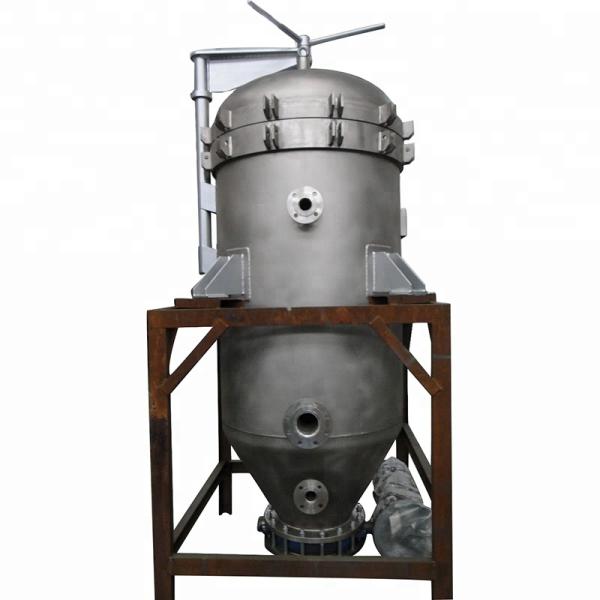

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

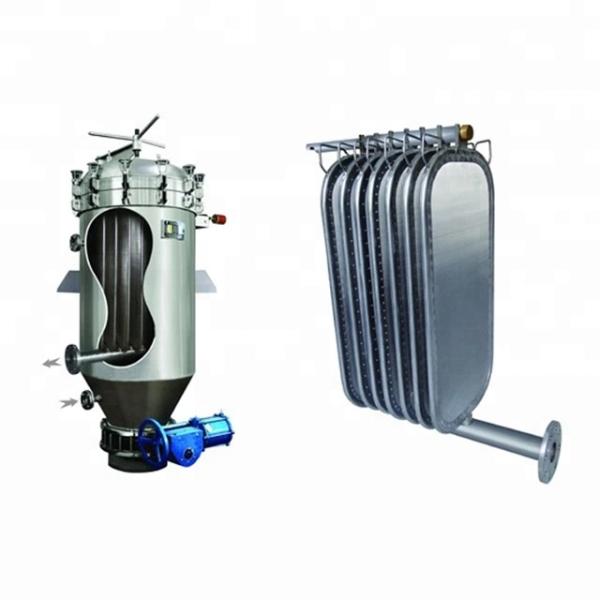

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, allowing for convenient dismantling and cleaning.

• No cloth or filter paper required, significantly reducing filtration costs
• Fully closed operation is environmentally friendly with no material loss
• Vibration residue falling reduces labor intensity and enables continuous operation
• Residue discharging through pneumatic valve minimizes worker labor
• Can completely replace plate and frame filters with activated carbon filtering capability

• 11 filter leaves provide 12 sqm filtration area
• Leaves made with heavy box channel 1.8 mm material 316L
• Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
• Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)

• DN 400 butterfly valve WAFER TYPE for dry cake discharge
• High quality butterfly valve with NH-S seat material (up to 150°C)
• Includes pneumatic actuator (double acting type) with 5.5 Bar air supply

Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps with four factories located in Nanjing and Yixing City.

We are committed to strict quality control and customer service, holding CE certificates, ASME U certificate and ISO 9001 certification. Our products are exported worldwide including USA, Germany, Korea, Japan, and many other countries.

We welcome OEM and ODM orders, with customer service available to discuss your specific requirements.
