IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
Specifications
Model Number :
PT-001
Waterproof Rating :
IP67
Compatibility :
Universal
Certification :
CE, RoHS
Operating Temperature :
-40°C to 80°C
MOQ :
100 sets
Delivery Time :
15-25 days
Sensor Type :
Ultrasonic parking sensor
Installation Type :
Surface Mount / Undermount
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Detection Range :
0-3m
Material :
ABS Plastic
Sensor diameter :
26mm
Price :
52.99-57.99
Operating Voltage :
12V/24V DC
Type :
Parking Assistance Sensor
Supply Ability :
10000set/month
Alarm Type :
Audible Beep and LED color
Number Of Sensors :
4
Place of Origin :
Guangdong, China
Package Includes :
Sensors, Control Unit, Buzzer/LED display, Wirings, User Manual
Brand Name :
OEM
Warranty :
18 months
Packaging Details :
carton
Color :
Black
Description

IP68 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor

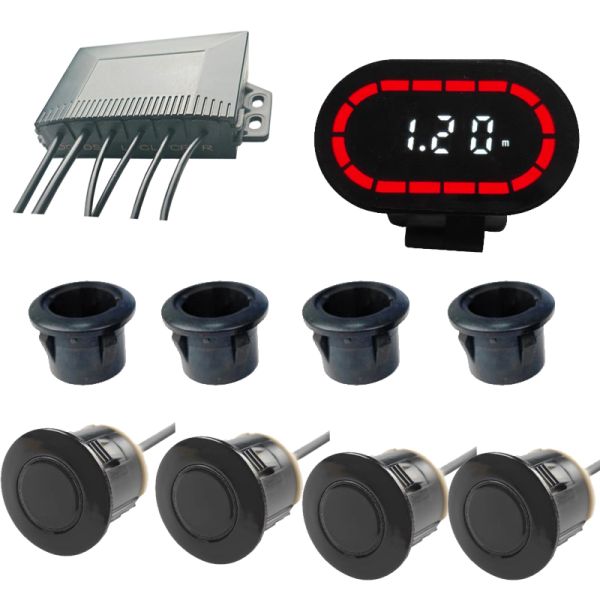

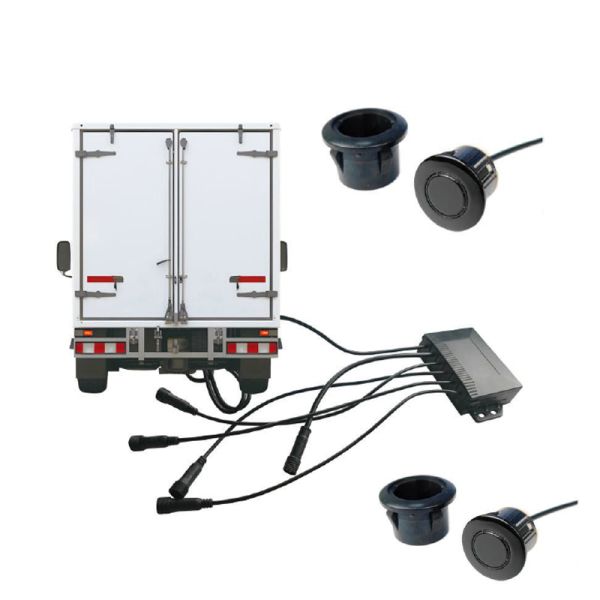

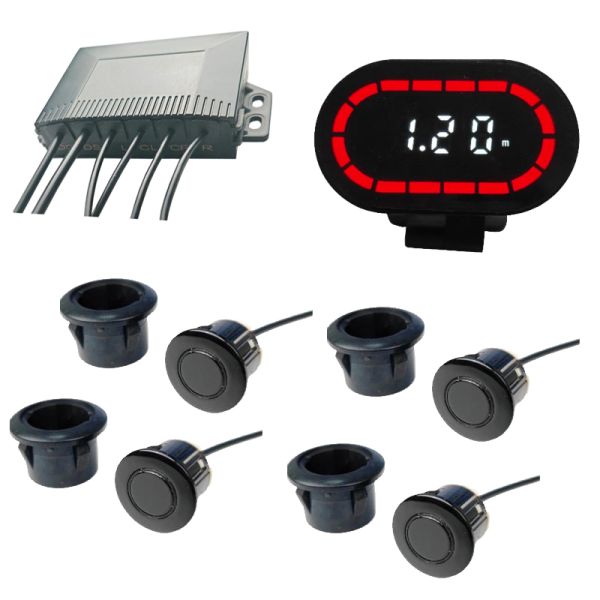

This truck trailer parking sensors are specialized promimity system for heavy-duty, pickup, box trucks and commercial fleet vehicles.


It's an untrasonic parking reverse system that with 4 sensors to detect obstables and provide feedback to drivers. Alerting them to be

careful in reversing while there are objects in their surroundings. Sensor detection range is from 0-3m. Sensor cable is 2.4m. It both

works for buzzer and LED display for customer's choice. Metal braket and rubber sleeve are also available for customers choice.



Features

  • Detection range: 3m
  • Sensor diameter: 26mm
  • Waterproof ECU: IP67
  • Sensor Frequency: 58Khz
  • Rubber sleeve and metal bracket for various installation
  • Buzzer or display optional


Parameter

Model number PT-001
Sensor diameter 26mm
Sensor cable 2.4m with IP67 waterproof connector.
Sensor detection 0-3m.
Display range 0-3m
Built-in buzzer range 0-3m
Warranty 18 months
Rated working voltage(V) 12V/24V
Operating voltage range(V) 9-32V
Working current 500mA@12V
Operating temperature range(℃)
 -40 ~ 80
Storage temperature range(℃)
 -40 ~ 85
LED display volume
≥90dB@12V/10cm
Waterproof grade (sensor and ECU) IP67

IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor

IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor

IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor

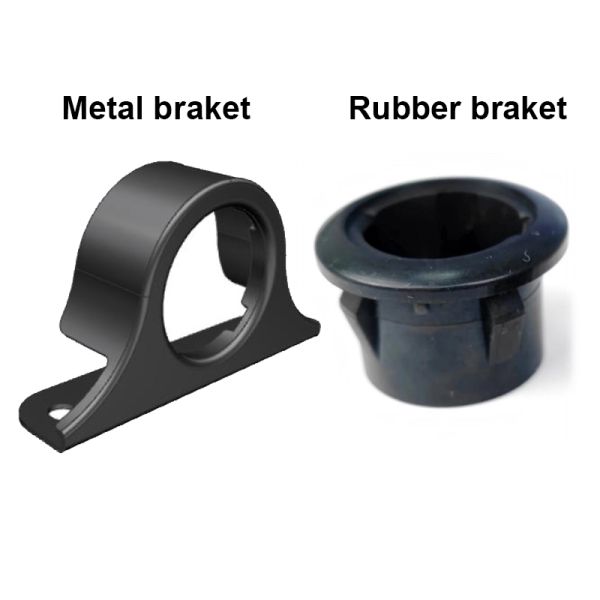

Rubber sleeves and undermount metal braket for sensor choice optional for truck metal bumper. Please told us the one you prefer.

IP67 Buzzer And LED Display Option Backup Aftermarket Truck Reverse Parking Sensor
