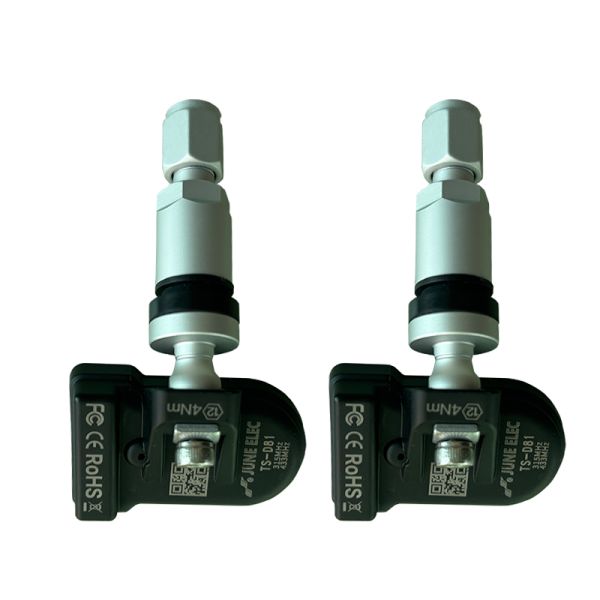

Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade
Specifications
Coverage :
98% car protocols from North America, Europe and Asia
Price :
USD6.3-USD7.8
Pressure range :
0-8 bar
Programmingmethod :
Wireless/Bluetooth
Operatingtemperaturerange :
-20°C to 70°C
Programmer :
TD560 and bluetooth OBD700
Productname :
Universal Programmable Sensor
MOQ :
100pcs
Certification :
CE
Packaging Details :
Neutral package box
Mobile programmer :
Supported on Googleplay and IOS system
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
Guangdong, China
Delivery Time :
5-8 working days
Frequency :
315Mhz/433Mhz
Type :
Programmable Sensor
Brand Name :
JAVAS
Microchip :
Imported and domestic available
Model Number :
TS-D81
Protectionrating :
IP67
Compatibility :
Universal
Housingmaterial :
Stainless Steel
Supply Ability :
10000pcs/month
Description





Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade

This car tyre universal tpms sensor is a blank sensors that needs to be programmed protocols with progammer first. So that it
can works for 98% carprotocols from North America, Europe and Asia. It used to replace the original OE sensors when OE
sensor damaged or battery dead. The original sensor battery works at most 5-6 years. When battery dead, customers needs to
replace it. Usually original sensor is with high price and need to wait for a long time.

What's more, for distributors, they usually needs to buy many stocks for different models for original OE sensors. But with this
universal programmable sensor. He just need to prepare one sensor for most models that he may need. It's make the stock
management much easy and save more cost.

Model: TS-D81

  • Capable of automatically creating, copy ID and manual input sensor ID
  • Cover over 98% car models worldwide, including Aisa, Europe and North America
  • Unlimited programming supported.
  • 315Mhz and 433Mhz in one sensor
  • Pressure range:0-8bar
  • Voltage:3.0V
  • Imported IC and domestic IC available
  • Battery life: more than 5 years
  • Warranty:2 years
  • Handheld programmer and mobile phone programmer workable

​Product Parameter

Operating temperature -40 ° C~+125 ° C
Relative humidity 45%~95%
Storage temperature range -40 ° C ~+125 ° C
Working temperature -40ºC~105ºC
Pressure range 0-900Kpa
Installation position automobile wheel hub
Quiescent current 0.3μA≤I≤1.0μA
Emission current 1.0mA ≤I≤3.5mA
Operating voltage 2.90V≤U≤3.50V
Emission power 8dBm
Weight 35g
Service life CR2050 more than 3 years
Waterproofing rate IP67
Transmitting power <10dBm
Transmitting frequency 433.92MHz&315MHz
Temperature error 20~70 ° C : ±3 ° C,
-40~-20ºC,70~125ºC :±5ºC
Pressure error 0 ~50ºC :± 0.07bar,
-40~0ºC , 50~85ºC :± 0.1bar



It can be also programmed by handheld programmer.


Company Information

Shenzhen June Electronic Co., Ltd. is special in car accessary development, including tpms, led headlight bulb and parking sensors. Especially in tire pressure diagnosis tools, programmers and universal programmable tpms sensors for the OE and aftermarket for years. We doing our best to offer the the most stable product for customers over the world.

Car Tire Pressure Monitor System Tyre Air Tpms Sensor For Cadillac Escalade


FAQ

Q1: What is the frequency and application?
A1: Sensor frequency is 315Mhz/433Mhz. It applied for Asia, Europe and North America aftermarket OE tpms sensor replacement and winter tires.


Q2: What's your package?
A2: Our standard package is carton for 50pcs and 200pcs.


Q3: What is your MOQ?
A3: 100 pieces for sensors.Sample is available.


Q4: Do you offer OEM and ODM service?
A4: Yes, OEM and ODM service available.


Q5: When is the lead time?

A5:1-10 working days upon your order of products.


Q6: What about quality warranty?
A6:2 years for tpms sensor and 1 year for programming tool.


Q7: What is Price Term?
A7: EXW. FOB Shenzhen, CIF accepted.


Q8: How about Payment Term?
A8: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.


Q9: What about shipment?
A9: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea
