For Cars Vehicle Backup Bumper Parktronic Park Radar Front Forward Rear Reversing Parking Aid Sensor

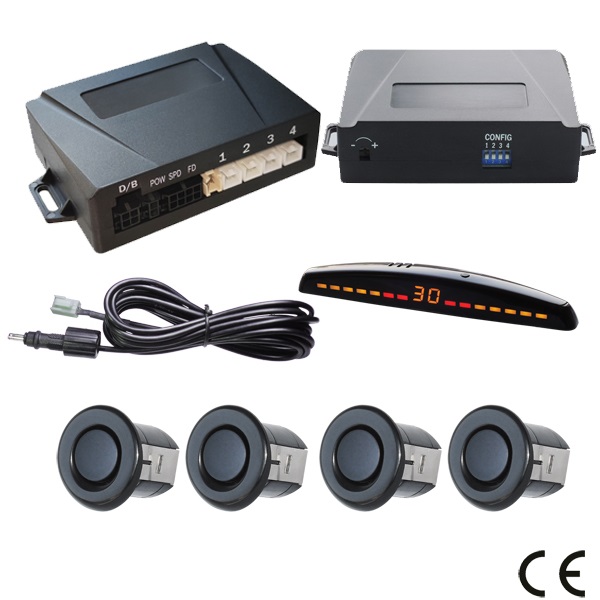

This is a universal ultrasonic parking sensor system for all cars in aftermaket with led display. It allows you display the distance at cm, dm, m, feet and inch. You can adjusted by yourself with switch on display. Except the beep sound alarm, you can also see the LED color to alert you the distance from obstables. The LED display works at 2.5m on rear and 1.2m for front system.

It is the best solution for giving you advice on how far away an object is when you are reversing and/or moving forward. The system begins to emit buzzer sound alarm at 1.5m for rear system, and beeps faster as you get closer to the object, until you are 30cm away and it makes a constant beep. The volume control allows you to adjust the volume easily anytime with the on-off switch on led display.

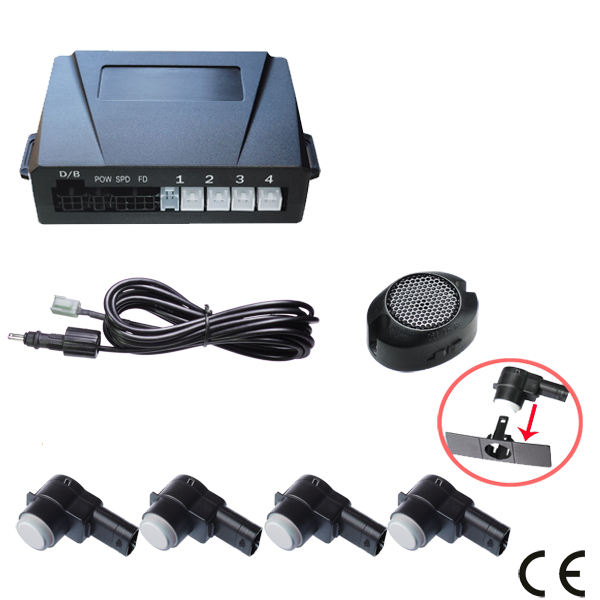

This sensor system includes 4 sensors that can be mounted on the rear or front bumper of your vehicle. However, if you want to both front and rear sensor system. You can install 2 kits.

It also have side sensor limitation design. If the side sensor detect long distance to make false alarm. You can turn on/off the dip switch to choose the side sensor distance limitation to 80cm.

If you do need to have a spare or towbar on rear bumpe, you can also turn/off the disp switch to ignore the spare tyre or towbar.

Features

1. Front sensor system
2. Rear sensor system
3. Speed mode and brake mode front activation
4. Side sensor limitation to 80cm
5. 25cm offset for towbar and spare tire
6. buzzer sound is adjusted by control box
7. buzzer, speaker, LED display can be optional for this kit. Control module, sensor cable, and sensor head are same.
8. IP67 Waterproof connector for each sensor cable. Easy for sensor replacement.
9. Control box with thick pin socket for sensor and power. Plull force is up to 15KG. System will not pull off easily. Free software update at customers side. Sensitivity can be adjusted freely.
10. Install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle for side sensors.

Parameter

Detail function

1. Dip swtich to choose front or rear reversing system, speed or brake mode for front sensor system, side limitation to 80cm distance detection

and buzzer volume adjusted.

2. Speed mode or Brake mode choice for dips switch to adjust.

3. side sensor detection distance setting by dip switch.

4. Standalone buzzer sound can be adjusted to high volume 2400Hz and normal 800Hz.

5.Speaker, LED display and buzzer optional for choice

6.18.5mm sensor opitional for choice. You can choose the sensor head you prefer. Other parts are same.

Package
Neutral Package: White box
QTY: 24 SETS .
N.W.:10.0 KGS .
G.W.: 12.8 KGS .
Volume:0.040m³
Shipping:DHL, UPS, FedEx, EMS Express available; Air and Sea shipment available.
