PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
Specifications
Brand Name :
Jufeng
Model Number :
JM-10AT
Certification :
CE, ISO9001, etc
Place of Origin :
China
MOQ :
1 unit
Price :
contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
2000 unit per month
Delivery Time :
3-7 days after the payment
Packaging Details :
wooden case
Warranty :
1 year
Voltage :
380V Or Customization
Free Air Delivery :
1.1 m3/min
Working Pressure :
7-12 bar
Oem :
Welcomed,Offered/Accepted
Lubrication Style :
Lubricated
Control System :
PLC control
Noise Level :
64±2 dB(A)
Tank Volume :
200 liter
Power :
7.5kw
Air End :
Screw type
Air Filter :
High efficiency filter
Drive Method :
Direct drive/Belt drive
Description

PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank

Integrated screw compressors offer the following major advantages:

1. Compact design: The integrated screw compressor integrates the compressor, motor and cooling unit in a compact housing, reducing equipment space and facilitating installation and maintenance.
2. High performance: Advanced screw design and optimized airflow channels enable integrated screw compressors to work at high efficiency, thereby reducing operating costs.
3. High reliability: The overall design considers the coordination of various parts of the compressor, improving the reliability and service life of the whole machine.
4. Easy maintenance: Through reasonable shell design, regular inspection and maintenance can be easily carried out, reducing maintenance costs.
5. Energy saving and environmental protection: The optimized airflow channel and efficient motor design make the integrated screw compressor have lower energy consumption under the same working conditions, which is conducive to energy saving and emission reduction.
6. Flexible application: The integrated design is suitable for various working conditions and application scenarios, such as industrial refrigeration, air compression and other fields, to meet the needs of different users.


In general, the integrated screw compressor has outstanding advantages in compact design, high energy efficiency and strong reliability, and is widely used in industrial refrigeration, air compression and other fields.

Product parameter

Model JM-10AT
Capacity 1.1m³/min
Working pressure 7-12bar
Air end Jufeng
Transmission mode Belt drive or direct drive
Cooling method Air cooled or water-cooled
Motor 380v/50hz/3phase, IP23/IP54
Exhaust temperature Ambient temperature +15℃
Noise ≤ 65 dB(A)
Outlet size G3/4”
Gas tank 200L
Cold dryer voltage 220v/50/1phase
Air dryer 16bar/2.4m³/2-10℃
Filter 16bar/2.8m3/4 pcs, particle content≤0.01μm,oil content≤0.003PPM
Size 1960*820*1600mm

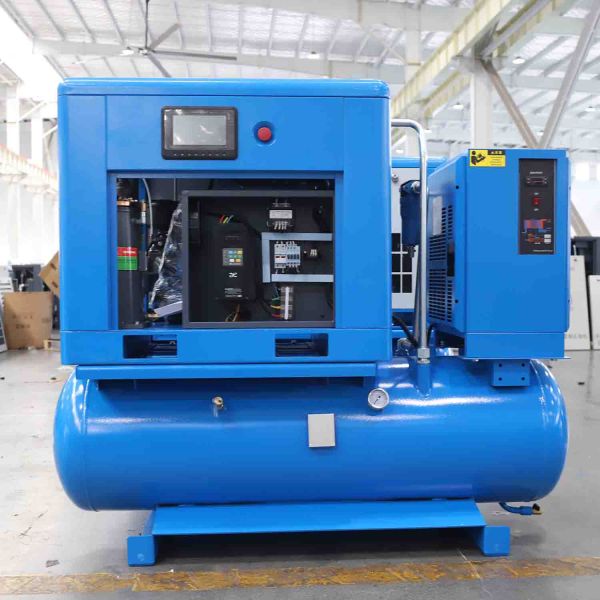

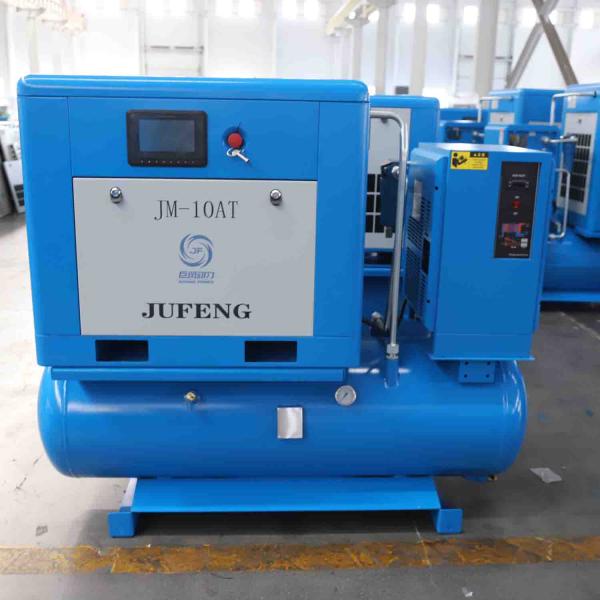

Product photos

PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank

PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
