Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor
Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor
Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor
Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor
Specifications
Brand Name :
Jufeng
Model Number :
JF-7.5A~100A
Place of Origin :
China
Certification :
CE, ISO, etc.
MOQ :
1 unit
Price :
Contact us
Packaging Details :
Wooden case
Delivery Time :
3-7 work days
Supply Ability :
5000 units per months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Drive Method :
Belt Driven
Power Source :
Electric
Voltage :
380V/50Hz/3Ph
Air Delivery :
0.48-13.4m³/min
Configuration :
Stationary
Color :
Customized
Oem :
Welcomed,Offered/Accepted
Noise Level :
≤75dB(A)
Local service :
Russia, South Korea, Vietnam, Thailand, Malaysia, Mexico, Kazakhstan, Poland, Indonesia
Description

Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor

Product introduction

A belt-driven screw air compressor is a reliable and efficient industrial machine designed to generate compressed air. It utilizes a rotary screw mechanism, where two interlocking screws (rotors) compress air as they rotate. The belt-drive system connects the motor to the compressor pump, allowing for smooth power transmission and adjustable speed ratios.

Product Features

  1. Energy Efficient: The belt-drive reduces motor load, improving energy savings.
  2. Low Maintenance: Belt tension can be easily adjusted, and components experience less wear.
  3. Quiet Operation: Produces less noise compared to direct-drive models.
  4. Versatile: Suitable for workshops, factories, and applications requiring steady air supply.

Ideal for continuous-duty operations, this compressor type ensures consistent performance with reduced vibration. Regular maintenance of belts and filters enhances longevity and efficiency.

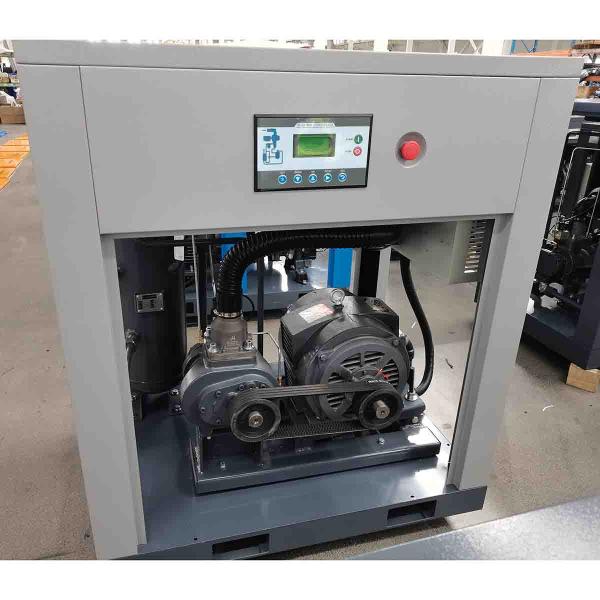

Product photo

Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor

Product parameters

Model Power kw Exhaust volume m³/min Pressure Mpa Dimension(L*W*H)mm Weight kg Noise level dB(A) Air outlet pipe diameter
JF-7.5A 5.5 0.78 0.8 800x720x950 200 62±2 G¾''
JF-10A 7.5 1.1 0.8 800x720x950 200 64±2 G¾''
JF-15A 11 1.5 0.8 950x800x1160 320 66±2 G¾''
JF-20A 15 2.3 0.8 950x800x1160 350 67±2 G¾''
JF-25A 18.5 3.0 0.8 1150x900x1380 450 69±2 G1''
JF-30A 22 3.6 0.8 1150x900x1380 460 69±2 G1''
JF-40A 30 5.0 0.8 1150x900x1380 500 71±2 G1''
JF-50A 37 6.2 0.8 1320x1000x1500 700 72±2 G1½''
JF-60A 45 7.0 0.8 1320x1000x1500 730 73±2 G1½''
JF-75A 55 9.2 0.8 1600x1170x1580 1200 74±2 G1½''

Factory

Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor

Certificates

Electric Type Customized Voltage 5.5kw - 75kw Belt Driven Screw Air Compressor

FAQ:

Q1: What is the brand name of the belt driven screw air compressor?

A1: The brand name of the compressor is Jufeng.

Q2: What is the model number range for the belt driven screw air compressor?

A2: The model number range for the compressor is JF-7.5A~100A.

Q3: Where is the belt driven screw air compressor manufactured?

A3: The compressor is manufactured in China.

Q4: What certifications does the belt driven screw air compressor have?

A4: The compressor has CE, ISO, and other certifications.

Q5: What is the packaging and delivery time for the belt driven screw air compressor?

A5: The compressor is packaged in wooden cases and delivery time is 3-7 work days. Additionally, we have a supply ability of 5000 units per month.
