22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
Specifications
Brand Name :
Jufeng
Certification :
CE, ISO, etc.
Place of Origin :
China
MOQ :
1 unit
Price :
contact us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units per month
Delivery Time :
3-15 working days after the payment
Model Number :
JM-30A
Packaging Details :
Export wooden box packaging
Name :
Permanent magnet variable frequency screw air compressor
Power Source :
Electric
Pressure :
7-12bar
Air Flow :
2.9~3.8m³/min
Voltage :
380V
Cooling System :
Air-cooled/Water-cooled
Protection Class :
IP54/IP23
Outlet Size :
G1''
Certifications :
CE, ISO 9001, ISO 14001
Warranty :
1 Year
Description

22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier


Product introduction

The Permanent Magnet Variable Frequency Drive (VFD) Screw Air Compressor combines advanced permanent magnet motor technology with intelligent variable frequency control to deliver exceptional energy efficiency, reliability, and performance. Designed for industrial applications, it adjusts motor speed in real-time to match air demand, reducing energy consumption by up to 30% compared to fixed-speed models.

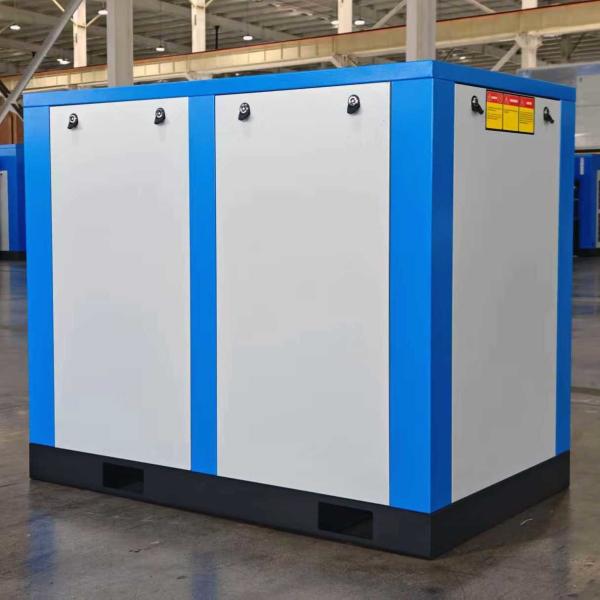

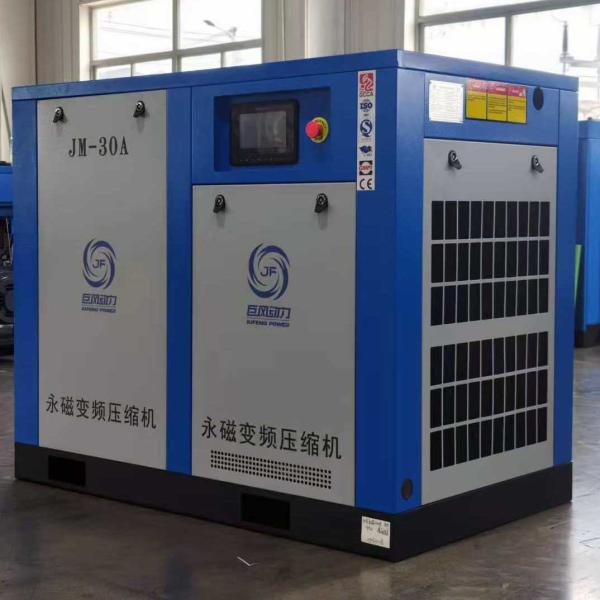

Product photo

22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier


Product parameters

Model

Power

kw

Exhaust volume

m³/min

Pressure

bar

 Noise level dB(A) Outlet pipe diameter

Dimension

mm

Weight

kg

Consumption of oil

L
JM-30A 22 3.8 7 67±2 G1'' 1380*850*1180 430 18
3.6 8
3.2 10
2.9 12


Factory

22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier


Exhibitions

22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier


Certificates

22kw Permanent Magnet Variable Frequency Screw Air Compressor Supplier
