Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Specifications
Brand Name :
Jufeng
Model Number :
JF-015
Certification :
Rohs
Place of Origin :
China
MOQ :
1 unit
Price :
Contact us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000 units per month
Delivery Time :
7-15 days
Packaging Details :
Export wooden box
Weight :
43kg
Size :
550mm x 450mm x 750mm
Air Volume :
1.6m³/min
Pressure Dew Point :
2-10℃
Compressed Air Pressure :
7 bar-16 bar
Supply Power :
220V/50Hz
Ambient Temperature :
1~38°C
Color :
Blue
Installation :
Eesy
Type :
Air Treatment Equipment
Description

Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer


Product introduction

The refrigerated air dryer for screw air compressor is essential for removing moisture, oil vapors, and contaminants from compressed air systems. Our high-performance air dryer ensures ISO 8573-1 Class 4 air quality, protecting your equipment from corrosion and downtime.

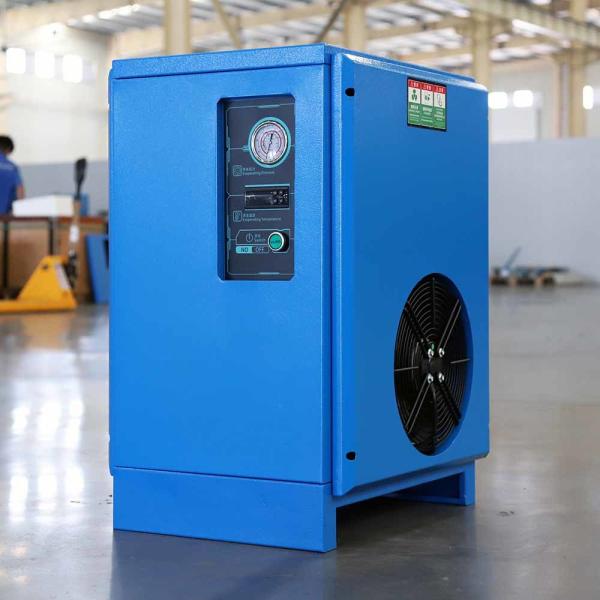

Product photo

Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer


Product parameters

Model JF-015
Air handling capacity 1.6m³/min
Compressed air inlet pressure 0.7~1.6 Mpa
Air inlet temperature ≦ 60℃
Standard ambient temperature 1~38℃
Pressure dew point 2-10℃
Pressure loss ≦ 0.018Mpa
Drain valve Electronic automatic drain valve
Cooling method Air cooling
Power supply V/PH/Hz 210~240VAC 50Hz 1P
Machine power 0.73kw
Compressor power 0.65kw/50Hz
refrigerant R410A
Inlet and outlet interface size G1"
Dimensions(LxWxH) 550mm × 450mm × 750mm
Net weight 43kg
communication RS485 (MODBUS), remote start/stop
